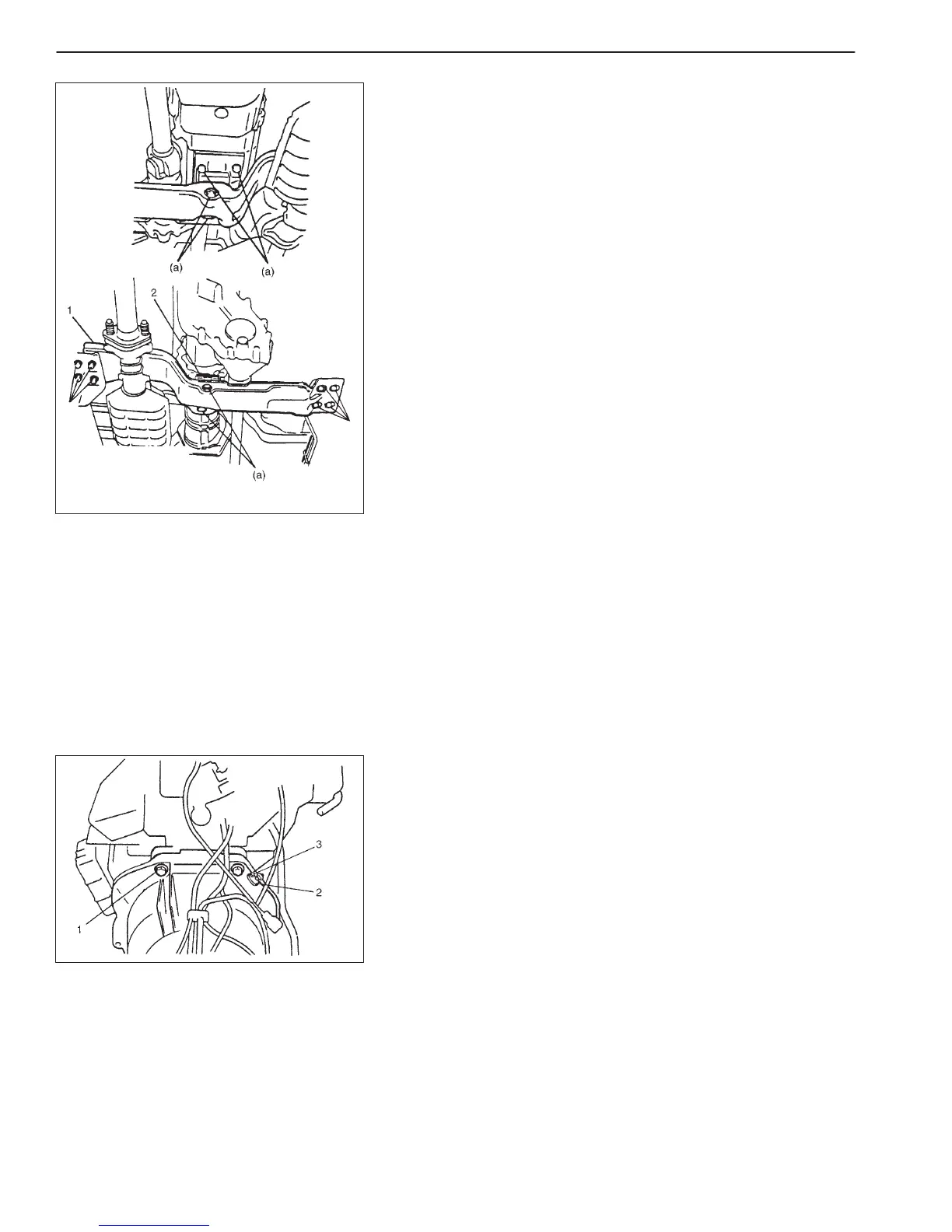

[A]: Front side
[B]: Rear side
1. Engine rear mounting member
2. Engine rear mounting
[B]
[A]
(b)
(b)
7A2-10 MANUAL TRANSMISSION
ENGINE REAR MOUNTING
When replacement of mounting parts are necessary, torque bolts
as specified below.
Tightening torque
Engine rear mounting bolts (a):
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
Engine rear mounting member bolts (b):
50 N
.
m (5.0 kg-m, 36.5 lb-ft)
DISMOUNTING OF TRANSMISSION UNIT
IN CABIN
Remove transmission shift control lever (Refer to “SHIFT CON-
TROL LEVERS” in this section.) and transfer shift control lever
knob.
IN ENGINE ROOM
1) Remove battery.
2) Untie breather hose which is tied to engine harness by loosing
clamp.
3) Disconnect CKP sensor connector from CKP sensor (2).
4) Remove CKP sensor mounting bolt (3) and then remove CKP
sensor (2) from clutch housing.
5) Remove transmission fastening bolt (1).
