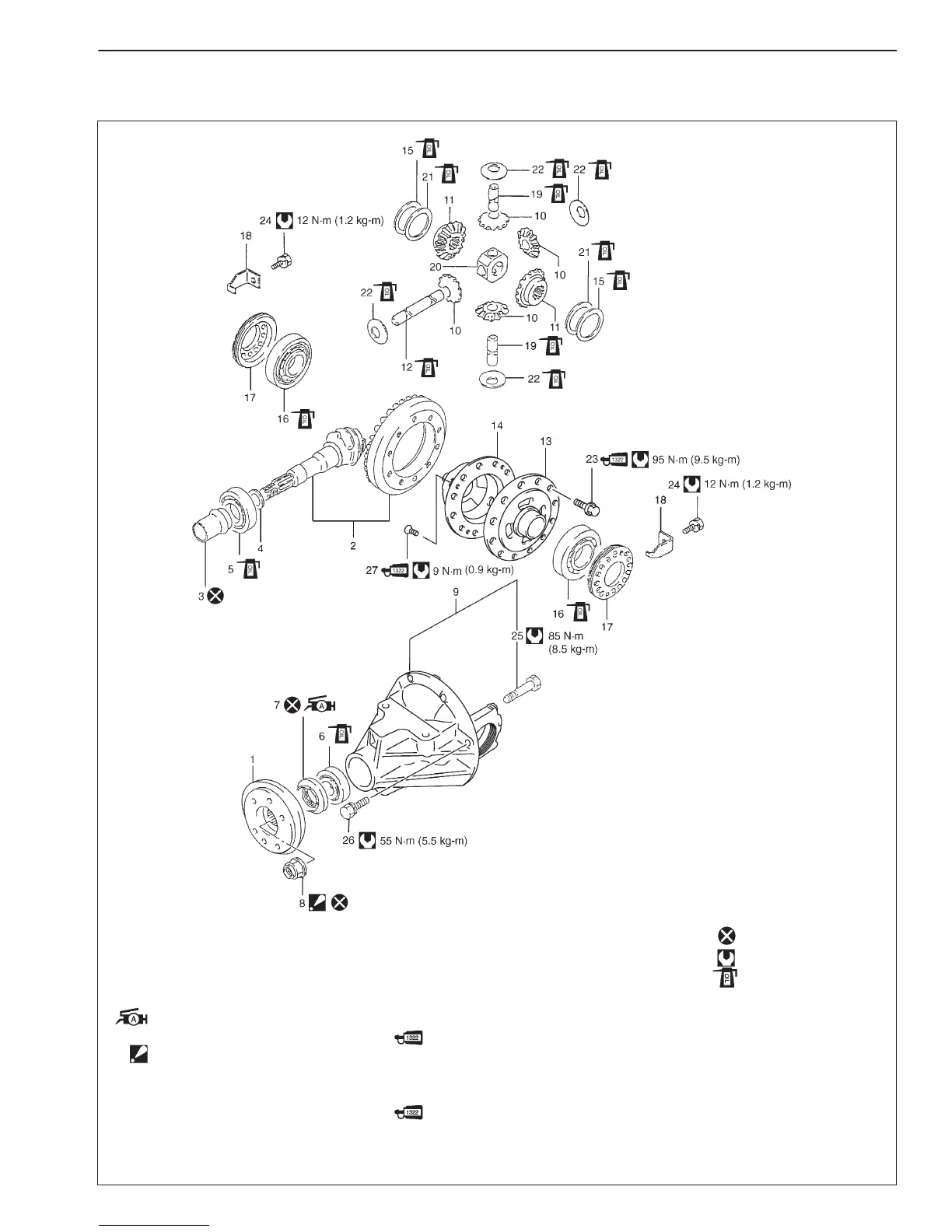

1. Universal joint flange
2. Hypoid gear set
3. Bevel pinion spacer
4. Shim
5. Rear bearing
6. Front bearing
7. Oil seal:
Apply grease 99000-25010 to
oil seal lip.
8. Flange nut:
After tightening nut so as rotation torque
of bevel pinion shaft to be in specified value,
caulk nut securely.
9. Differential carrier assembly
10. Differential pinion
11. Differential gear
12. Pinion shaft No.1
13. Differential left case
14. Differential right case
: Do not reuse.
: Tightening torque
: Apply differential oil.
15. Thrust washer
16. Differential side bearing
17. Bearing adjuster
18. Lock plate
19. Pinion shaft No.2
20. Pinion joint
21. Spring washer
22. Washer
23. Bevel gear bolt:
Apply thread lock cement 99000-32110
to thread part of bolt.
24. Bolt
25. Bolt
26. Bolt
27. Differential case screw:
Apply thread lock cement 99000-32110
to thread part of bolt.
DIFFERENTIAL (REAR) 7F-3
