ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE) 6E3-13

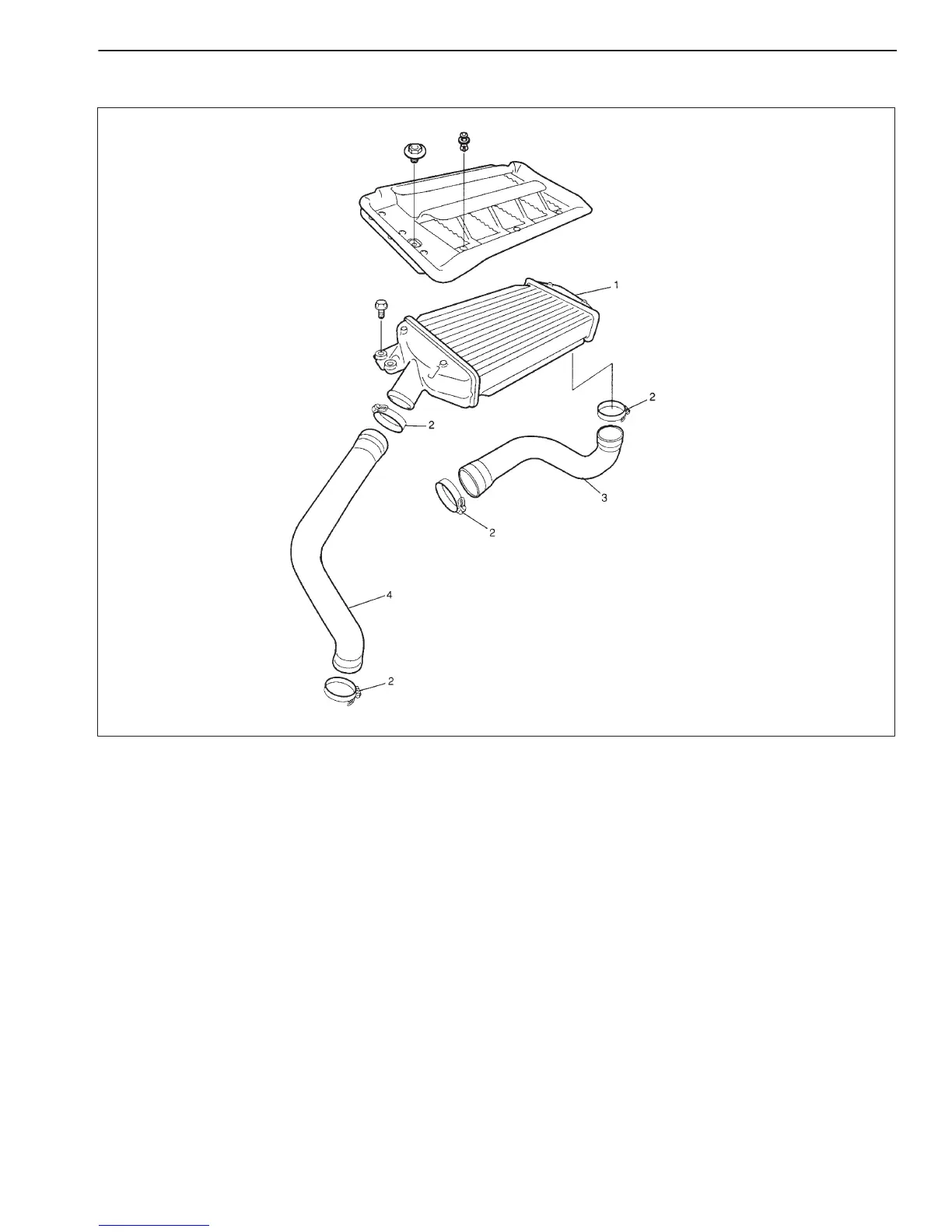

1. Intercooler
2. Clamp
3. Intercooler outlet hose
4. Intercooler inlet hose
INTERCOOLER
REMOVAL
1) Loosen intercooler hose clamps.
2) Remove intercooler.
INSTALLATION
For installation, reverse removal procedure.
