MANUAL TRANSMISSION 7A2-17
UNIT DISASSEMBLY

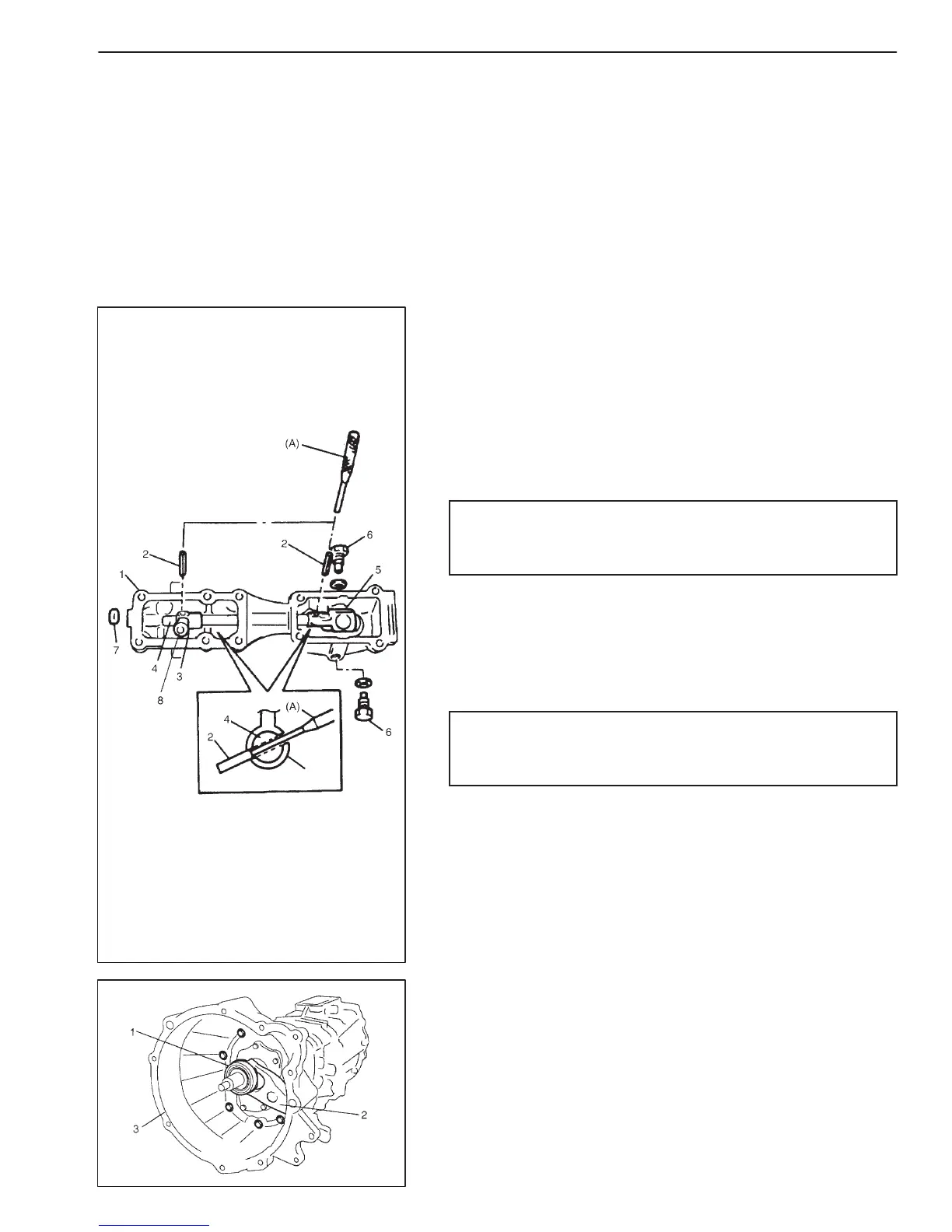

GEAR SHIFT LEVER CASE ASSEMBLY
1) Remove case plate.
2) With case supported with soft jawed vise, remove lever locating
bolts (6).
NOTE:
Use aluminum plates between vise and case to protect case
against damage.
3) Using special tool, drive spring pin (2) into gear shift arm (5) as
far as the position shown in the figure.
CAUTION:
When driving spring pin (2), use care not to damage gear
shift lever case (1).
Special tool
(A): 09922-85811
4) Likewise, drive spring pin (2) into gear shift lever (3) as far as the
position shown in the figure.
CAUTION:
When driving spring pin (2), use care not to damage gear
shift lever case (1).
Special tool
(A): 09922-85811
5) Remove case plug (7).
6) Pull out gear shift shaft (4) from gear shift lever case (1) and take
out gear shift lever (3).
7) Remove gear shift lever bush (8).
TRANSMISSION UNIT
1) Remove clutch release bearing (1), release fork (2) and clutch
housing (3).
