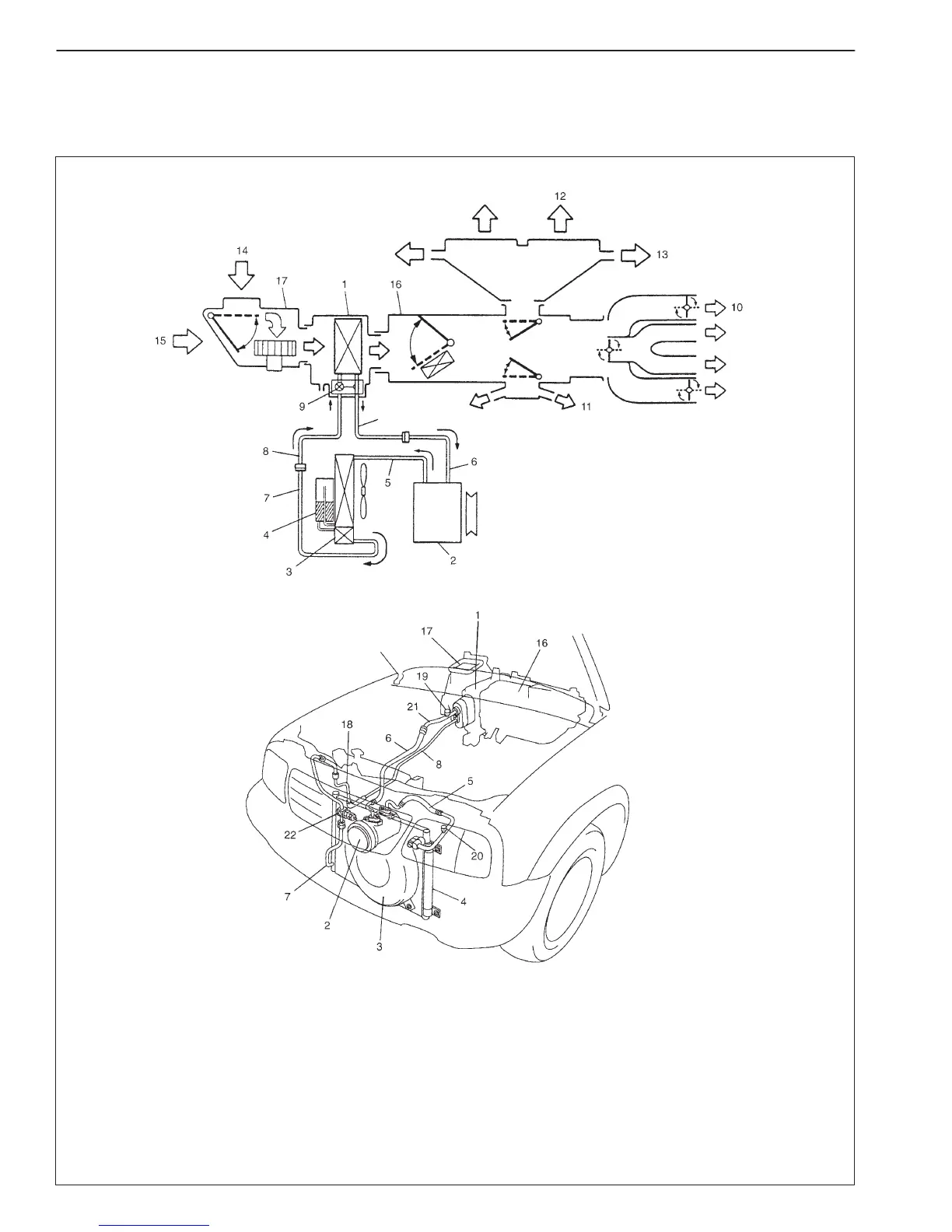

1. Cooling unit
2. Compressor
3. Condenser assembly
4. Receiver / dryer
5. Discharge hose
6. Suction hose
7. Condenser outlet pipe
8. Liquid pipe
9. Expansion valve
10. Ventilation air
11. Foot air
12. Defroster air
13. Demister air
14. Fresh air
15. Recirculation air
16. Heater unit
17. Air inlet box
18. Dual (Refrigerant) pressure switch
19. Low pressure charge valve
20. High pressure charge valve
21. Suction pipe
22. Sight glass
21
13
12
11
10
10
10
1B-2 AIR CONDITIONING (OPTIONAL)
GENERAL DESCRIPTION
MAJOR COMPONENTS AND LOCATION
