7B1-64 AUTOMATIC TRANSMISSION (4 A / T)

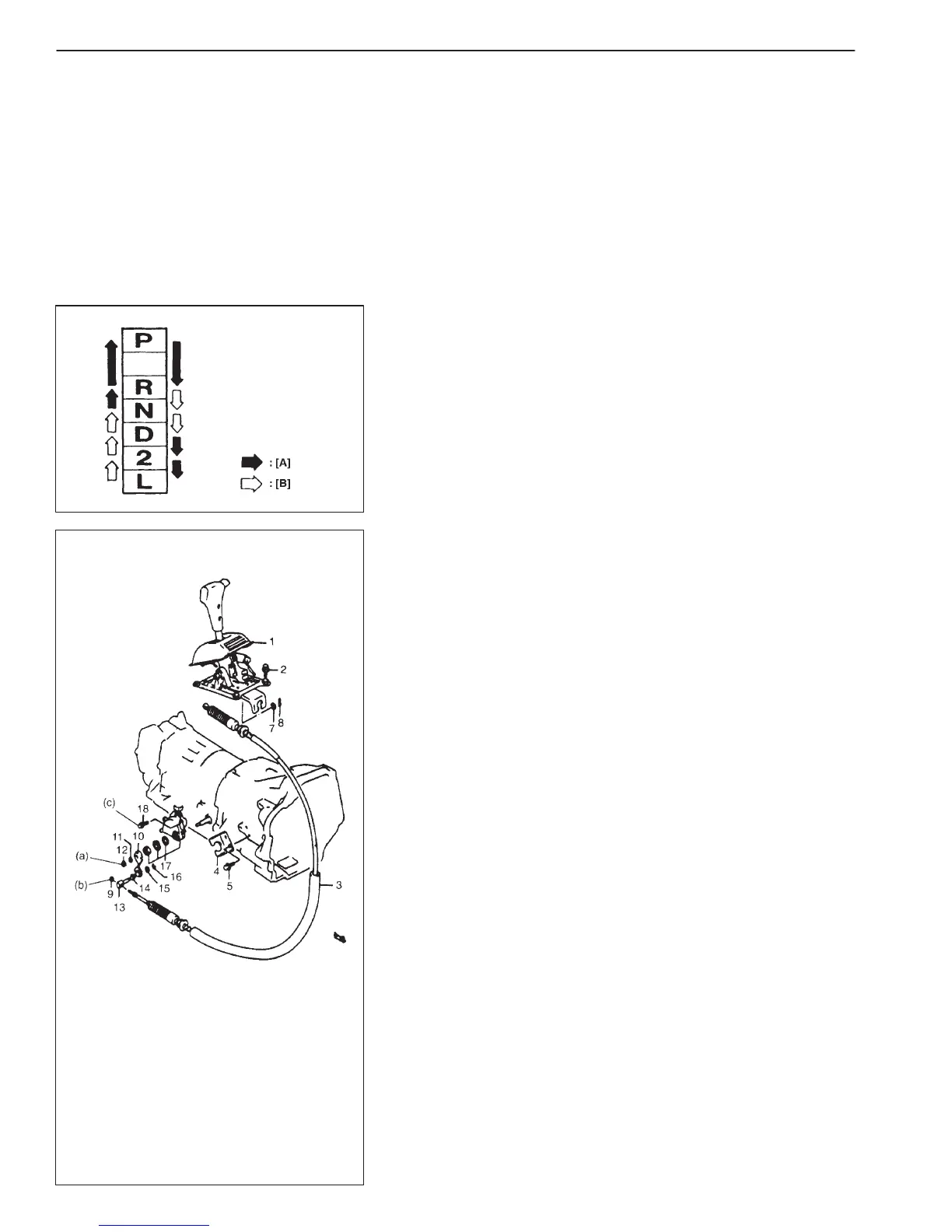

[A]: Shift the select lever
with its button pushed in.
[B]: Shift the select lever
without pushing its button.
1. Select lever assembly
2. Bolt
3. Select cable
4. Cable bracket
5. Bolt
6. Blank
7. Washer
8. Clip
9. Nut
10. Manual select lever
11. Lock washer
12. Nut
13. Select cable joint
14. Bush
15. Washer
16. E-ring
17. Transmission range
sensor assembly
18. Bolt
INSTALLATION
Reverse removal procedure to install.
INSPECTION
Check select lever for smooth and clear-cut movement and position
indicator for correct indication.
For operation of select lever, refer to the figure.
SELECT CABLE
Tightening torque
Manual select lever nut (a): 13 N
.
m (1.3 kg-m, 9.5 lb-ft)
Manual select cable end nut (b): 7 N
.
m (0.7 kg-m, 5.5 lb-ft)
Transmission range sensor lock bolt (c):
5.5 N
.
m (0.55 kg-m, 4.0 lb-ft)
