DIFFERENTIAL (REAR) 7F-21

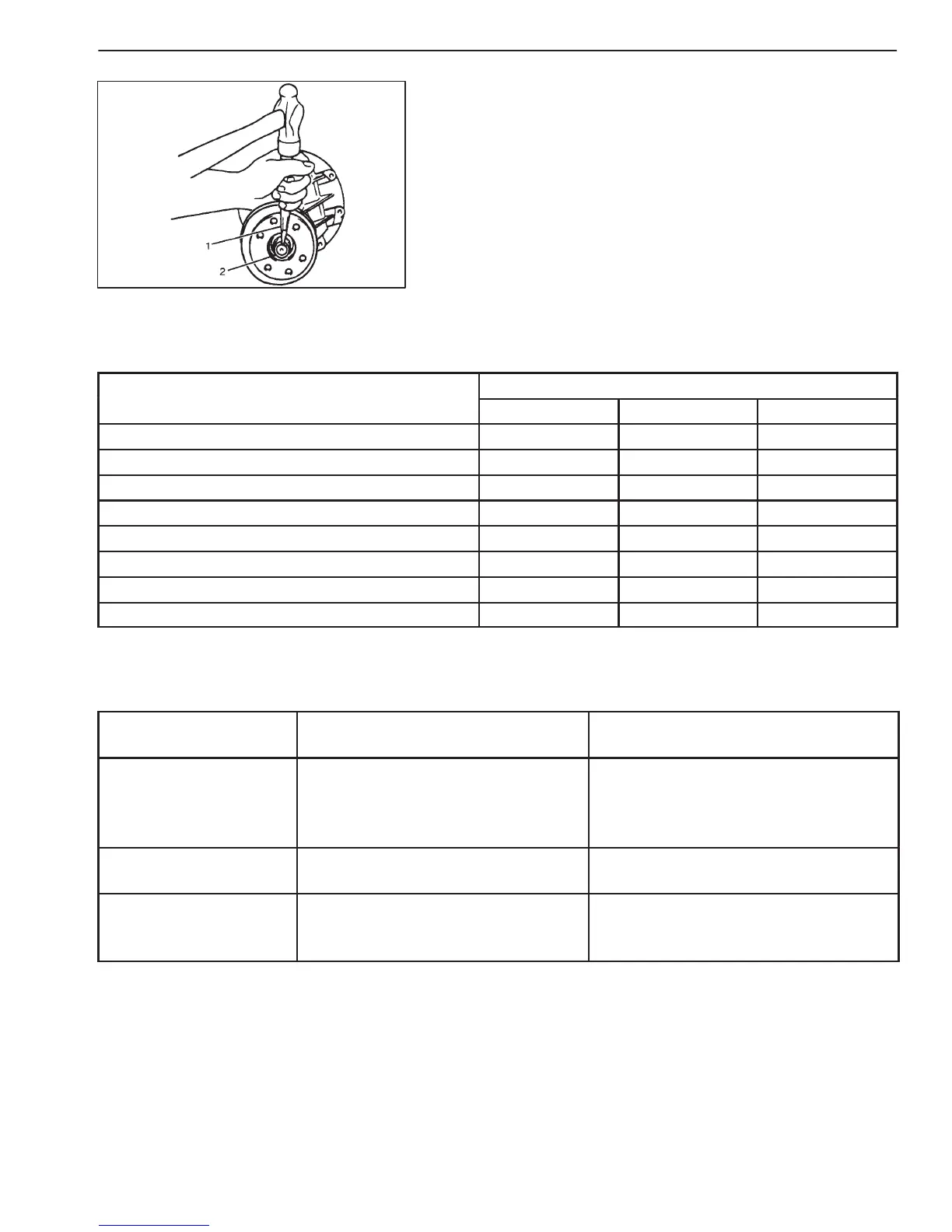

10) Upon completion of gear tooth contact check in Step 9), caulk
flange nut (2) with caulking tool (1) and hammer.
TIGHTENING TORQUE SPECIFICATION
N
.
m kg-m lb-ft
Differential oil level/filler plug 50 5.0 36.5
Differential oil drain plug 28 2.8 20.5
Propeller shaft flange bolts 60 6.0 43.5
Differential carrier bolts 55 5.5 40.0
Bevel gear bolts 95 9.5 68.5
Bearing cap bolts 85 8.5 61.5
Lock plate bolts 12 1.2 9.0
Differential case screws 9 0.9 6.5
REQUIRED SERVICE MATERIAL
Material
Recommended SUZUKI product
(Part Number)
Use
Thread lock cement
THREAD LOCK CEMENT
SUPER 1322
(99000-32110)
D Bevel gear bolts
D Differential case bolts
D Bevel gear mating surface
D Propeller shaft flange bolt
Lithium grease
SUZUKI SUPER GREASE A
(99000-25010)
Oil seal lips
Sealant
SUZUKI BOND NO.1215
(99000-31110)
D Rear differential drain plug
D Mating surface of differential housing
D Mating surface of rear axle housing
