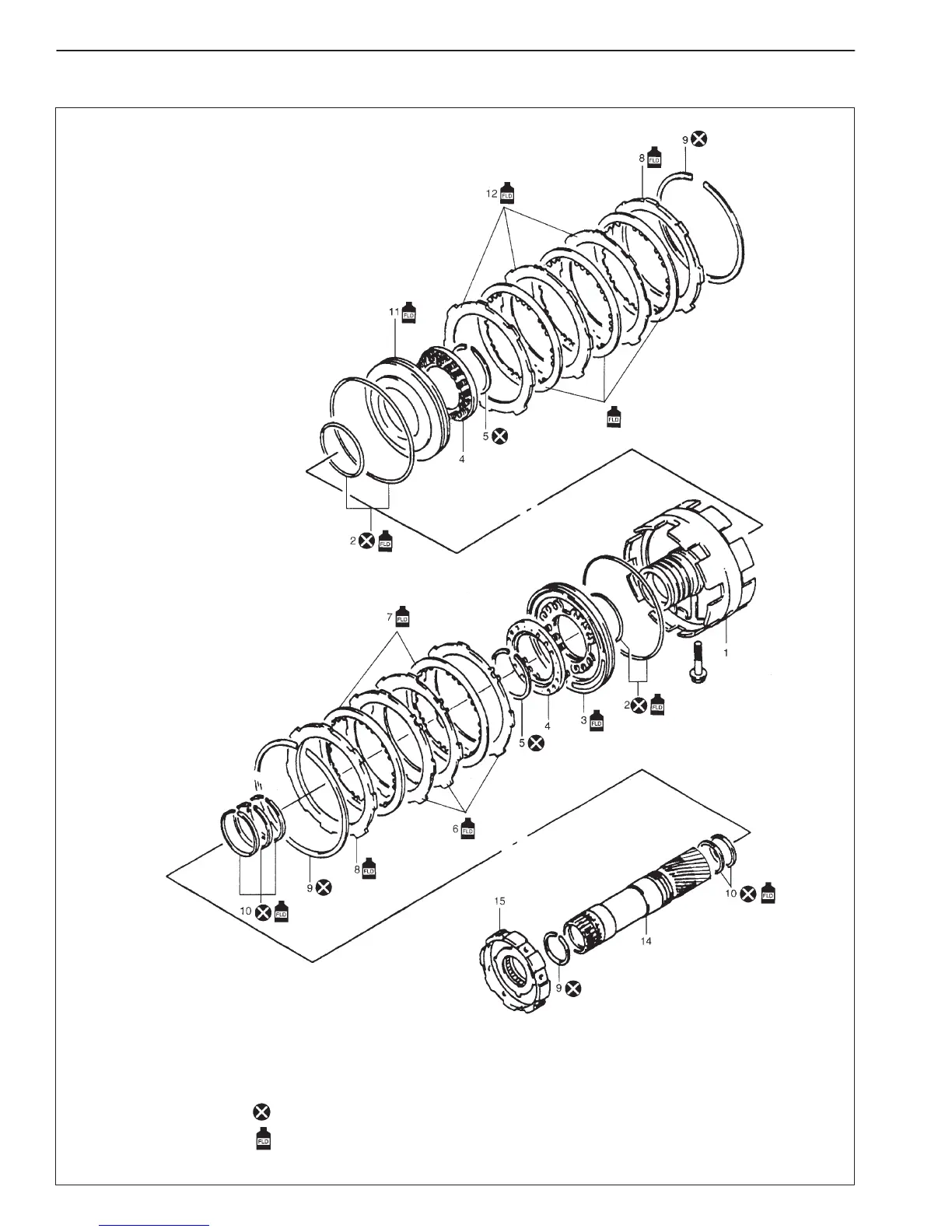

7B1-94 AUTOMATIC TRANSMISSION (4 A / T)
1. Center support
2. O-ring
3. Second coast brake piston
4. Piston return spring
5. Snap ring
6. Second coast brake plate
7. Second coast brake disc
8. Clutch backing plate
9. Retaining ring
10. Seal ring
11. Second brake piston
12. Second brake plate
13. Second brake disc
14. Planetary sun gear
15. Second brake hub assembly
: Do not reuse.
: Apply automatic
transmission fluid.
13
CENTER SUPPORT
