7A2-42 MANUAL TRANSMISSION

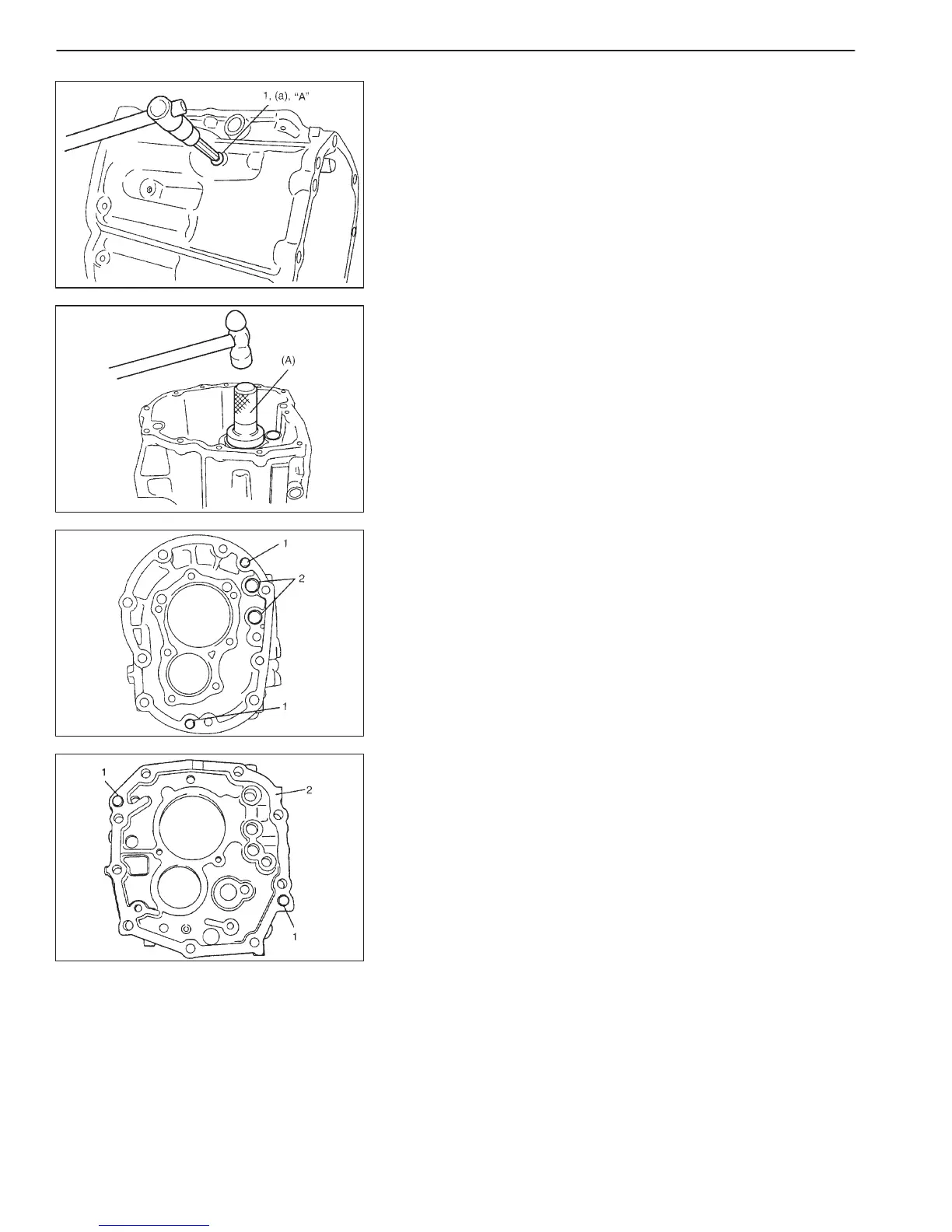

4) Apply sealant to thread of interlock cam plug (1) and tighten it to
specification.
“A”: Sealant 99000-31110
Tightening torque
Interlock cam plug (a): 25 N
.
m (2.5 kg-m, 18.0 lb-ft)
5) Install oil seal to rear case so that end surface of oil seal be-
comes flush with that case. Apply grease to oil seal lip.
Grease: 99000-25010
Special tool
(A): 09913-75520
TRANSMISSION INTERMEDIATE CASE AND FRONT
CASE (LOCATION OF KNOCK AND PLUG)
D Press knock pin (1) and plug (2) (knocking those in until perfect
fit is achieved) into front ease as shown.
D Press knock pin (1) into intermediate case (2) as shown in the fig-
ure.
