Ignition &
Starting motor
switch
Pull-in coil
Pinion drive lever
Pinion & Over-running
clutch
Magnetic switch
Hold-in coil
Plunger
Starting motor
Magnetic switch Contacts
M/T: Nothing
A / T: Park / neutral position switch in trans-
mission range switch (Shift lever switch)
Battery
Return
spring
6G-2 CRANKING SYSTEM
GENERAL DESCRIPTION
CRANKING CIRCUIT
The cranking circuit consists of the battery, starting motor, ignition switch, and related electrical wiring. These com-
ponents are connected electrically.
Only the starting motor will be covered in this section.

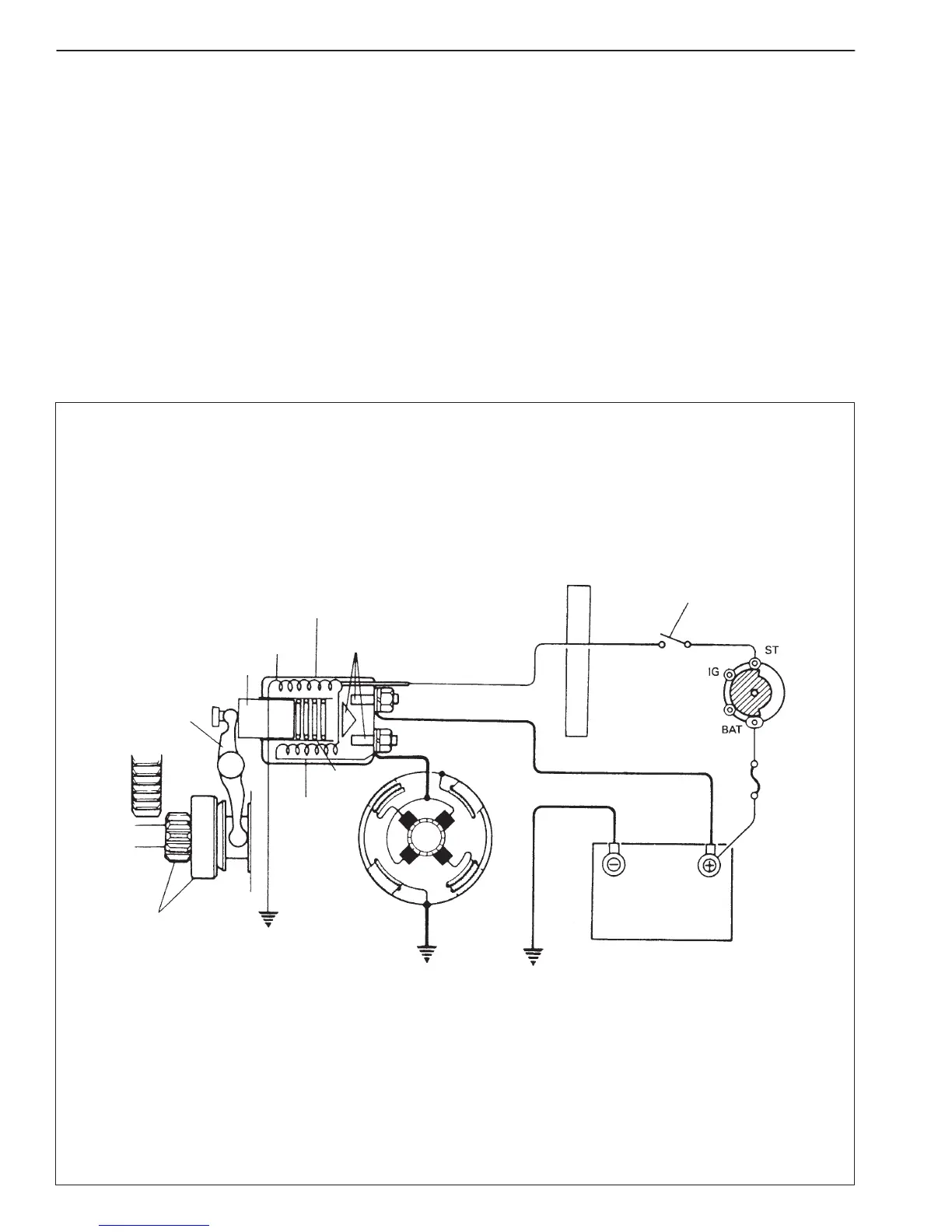

STARTING MOTOR CIRCUIT
D The magnetic switch coils are magnetized when the ignition switch is closed.
D The resulting plunger and pinion drive lever movement causes the pinion to engage the engine flywheel gear
and the magnetic switch main contacts to close, and cranking takes place.
D When the engine starts, the pinion over-running clutch protects the armature from excessive speed until the
switch is opened, at which time the return spring causes the pinion to disengage.
