6E3-32 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)
ELECTRONIC CONTROL SYSTEM
ENGINE CONTROL MODULE (ECM)
CAUTION:
As ECM consists of precision parts, be careful not to ex-
pose it to excessive shock.
For Vehicle Equipped with Single-Connector ECM
REMOVAL
1) Disconnect negative cable at battery.
2) Disable air bag system (if equipped) referring to “Disabling the
Air Bag System” in Air Bag System section.
3) Remove ECM cover clips and then remove ECM cover from
bracket by pulling off the cover to the seat side.

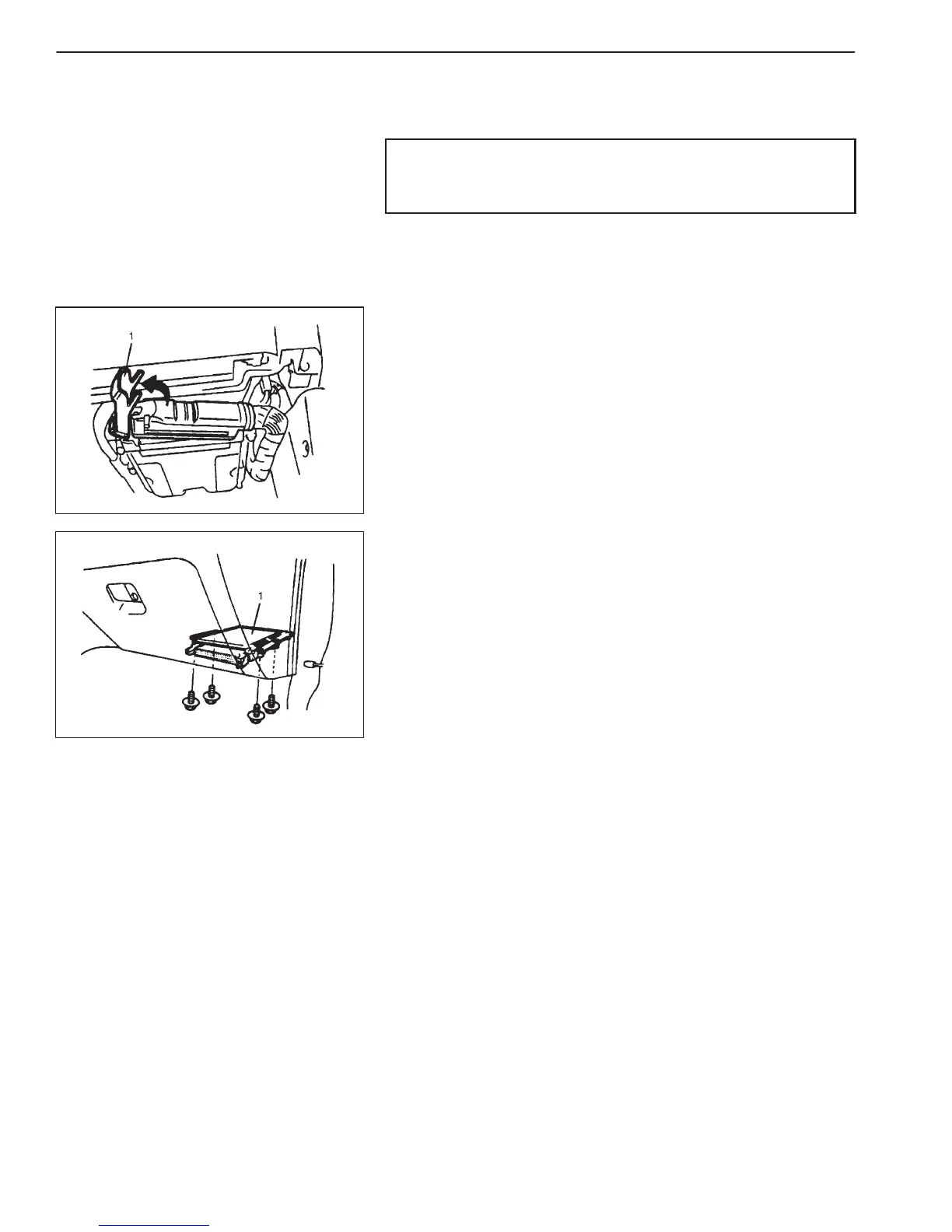

4) Disconnect ECM connector from ECM by pulling off lock (1).
5) Remove ECM (1) from bracket.
INSTALLATION
1) Connect connectors to ECM securely.
2) Install ECM to bracket.
3) Install ECM cover to ECM bracket.
4) Enable air bag system (if equipped) referring to “Enabling Air
Bag System” in Air Bag System section.
5) Connect negative cable to battery.
