6E3-20 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)
: Do not reuse

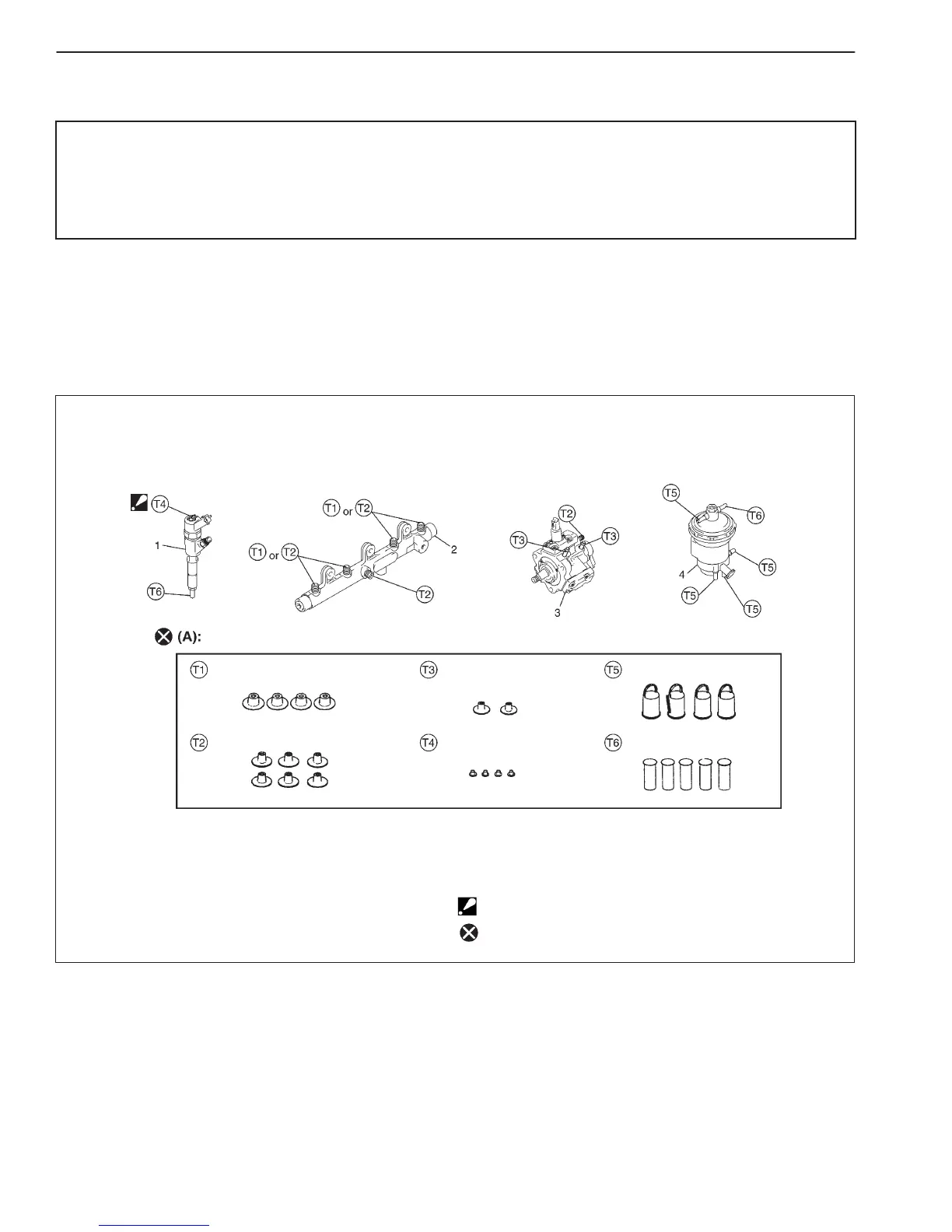

1. Injector
2. Delivery pipe
3. Injection pipe
4. Fuel filter
: Fix special tool with injector hose clip.
FUEL DELIVERY SYSTEM
WARNING
D Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep
sparks and flames away from fuel. Fuel line spills and leaks are dangerous. Fuel can ignite and cause
serious injuries or death and damage.
D Fuel can also irritate skin and eyes. To prevent this, always complete following “Precautions”.
PRECAUTIONS
D When disconnecting a fuel hose or pipe, wrap rag around it to protect against fuel leakage. Plug disconnected hose.
D Before disconnecting a fuel hose or pipe, wait 30 seconds to release pressure in fuel system.
D When disconnecting fuel line from injection pump, injector, delivery pipe and/or fuel filter, install new plug or new
cap including in fuel system plug set (special tool) to fittings imediately in order to prevent its internal part from
dust.
Special Tool
(A): 09916-50010
