6E3-40 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)
VSS
ON-VEHICLE INSPECTION
Check VSS and its circuits referring to flow table of diagnostic
trouble code P0500 in following section.
D For vehicle equipped with single-connector ECM : Section 6
D For vehicle equipped with triple-connector ECM : Section 6-1
REMOVAL, INSPECTION AND INSTALLATION
Refer to “VSS Removal, Inspection and Installation” in “Transfer”
section.
CAMSHAFT POSITION SENSOR (CMP SENSOR)
ON-VEHICLE INSPECTION
Check CMP sensor and its circuits referring to flow table of diagnos-
tic trouble code P0340 in following section.
D For vehicle equipped with single-connector ECM : Section 6
D For vehicle equipped with triple-connector ECM : Section 6-1
If malfunction is found, replace.

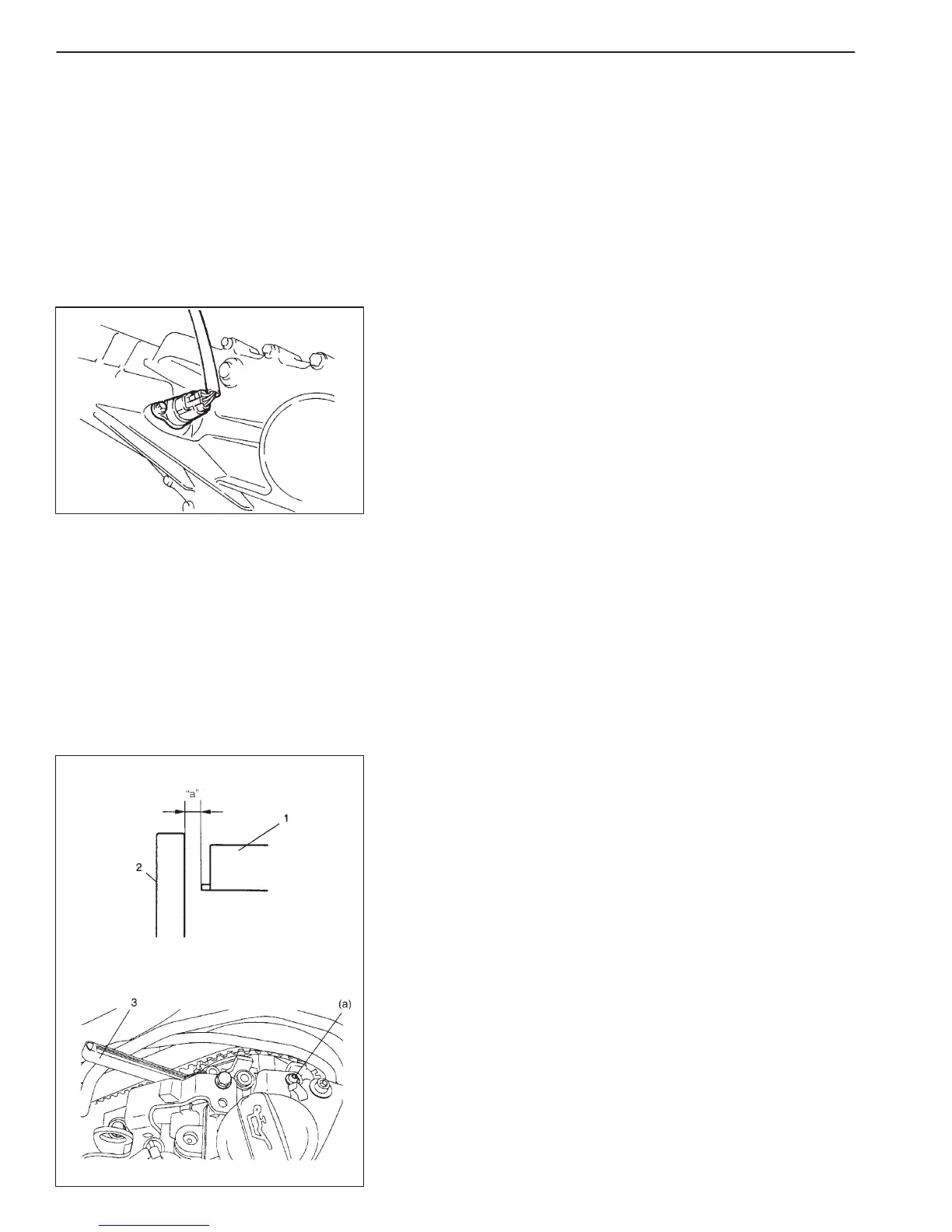

AIR GAP INSPECTION/ADJUSTMENT
1) Remove upper timing belt cover.
2) Check clearance between CMP sensor (1) and camshaft hub
(2), using thickness gauge (3).
Clearance between CMP sensor and camshaft hub
“a”: 1.2 mm (0.047 in.)
3) If clearance is out of specification, move the CMP sensor and
adjust the clearance.
Tightening Torque
CMP sensor bolt (a): 2 N
.
m (0.2 kg-m, 2.8 lb-ft)
To Next Page
