3E
REAR SUSPENSION 3E-1
ON-VEHICLE SERVICE 3E-1. . . . . . . . . . . . . . . .
REAR AXLE SHAFT AND WHEEL
BEARING 3E-1. . . . . . . . . . . . . . . . . . . . . . . . . .
REAR AXLE HOUSING 3E-2. . . . . . . . . . . . . . .
TIGHTENING TORQUE SPECIFICATION 3E-3.
REQUIRED SERVICE MATERIAL 3E-3. . . . . . . .
SPECIAL TOOL 3E-4. . . . . . . . . . . . . . . . . . . . . . .
SECTION 3E
REAR SUSPENSION
NOTE:
D For the descriptions (items) not found in this section, refer to the same section of the Service Manual
mentioned in the FOREWORD of this manual.
D All suspension fasteners are an important attaching part in that it could affect the performance of vital
parts and systems, and/or could result in major repair expense. They must be replaced with one of the
same part number or with an equivalent part if replacement becomes necessary. Do not use a replace-
ment part of lesser quality or substitute design. Torque values must be used as specified during reas-
sembly to assure proper retention of this part.
D Never attempt to heat, quench or straighten any suspension part. Replace it with a new part, or damage
to the part may result.
CONTENTS
ON-VEHICLE SERVICE
REAR AXLE SHAFT AND WHEEL BEARING
REMOVAL
For the details, refer to the same item of the same section in the ser-
vice manual mentioned in the FOREWORD of this manual noting
following points.

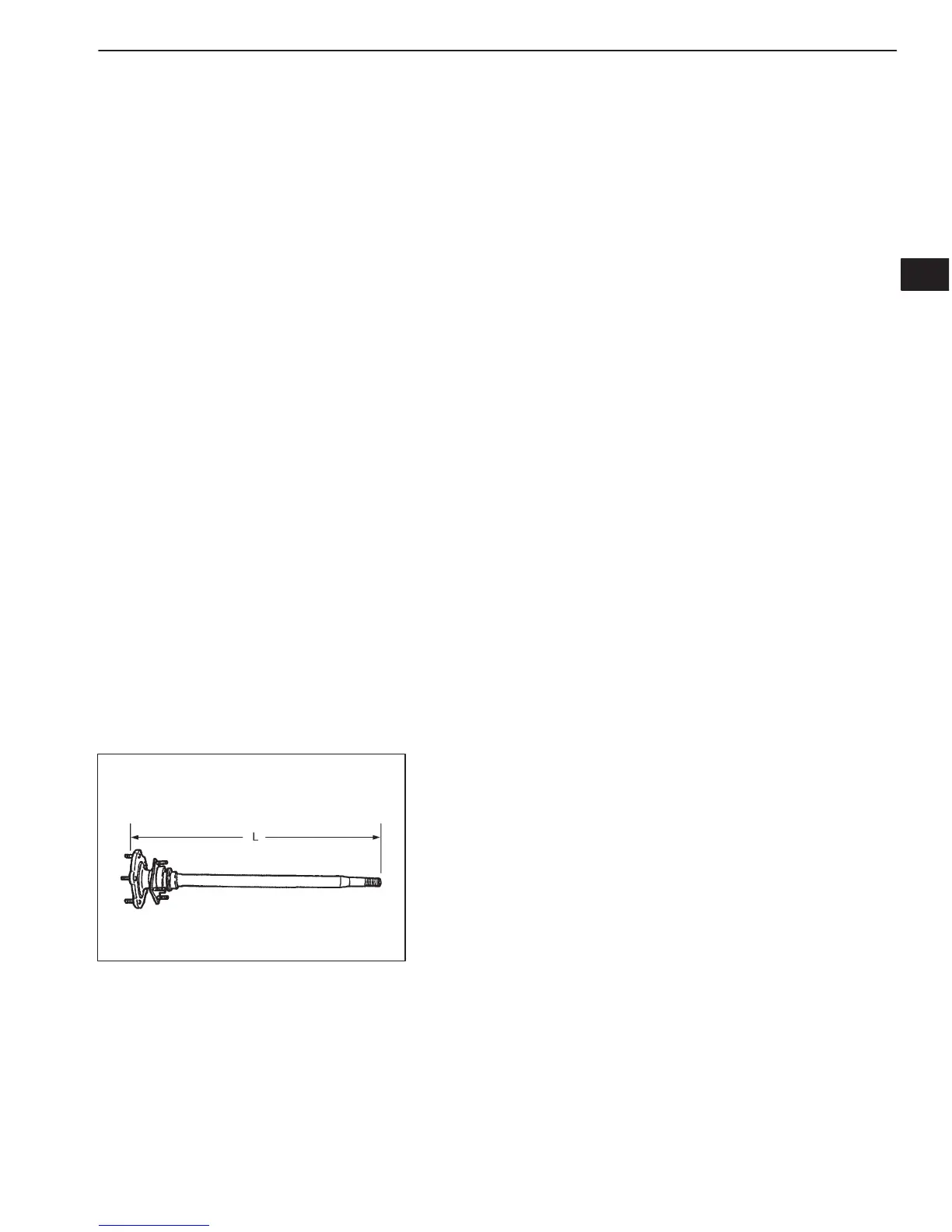

Rear axle shaft length “L”
Left side : 702 mm (27.6 in.)
Right side : 771 mm (30.4 in.)
