ENGINE COOLING 6B-11
RADIATOR

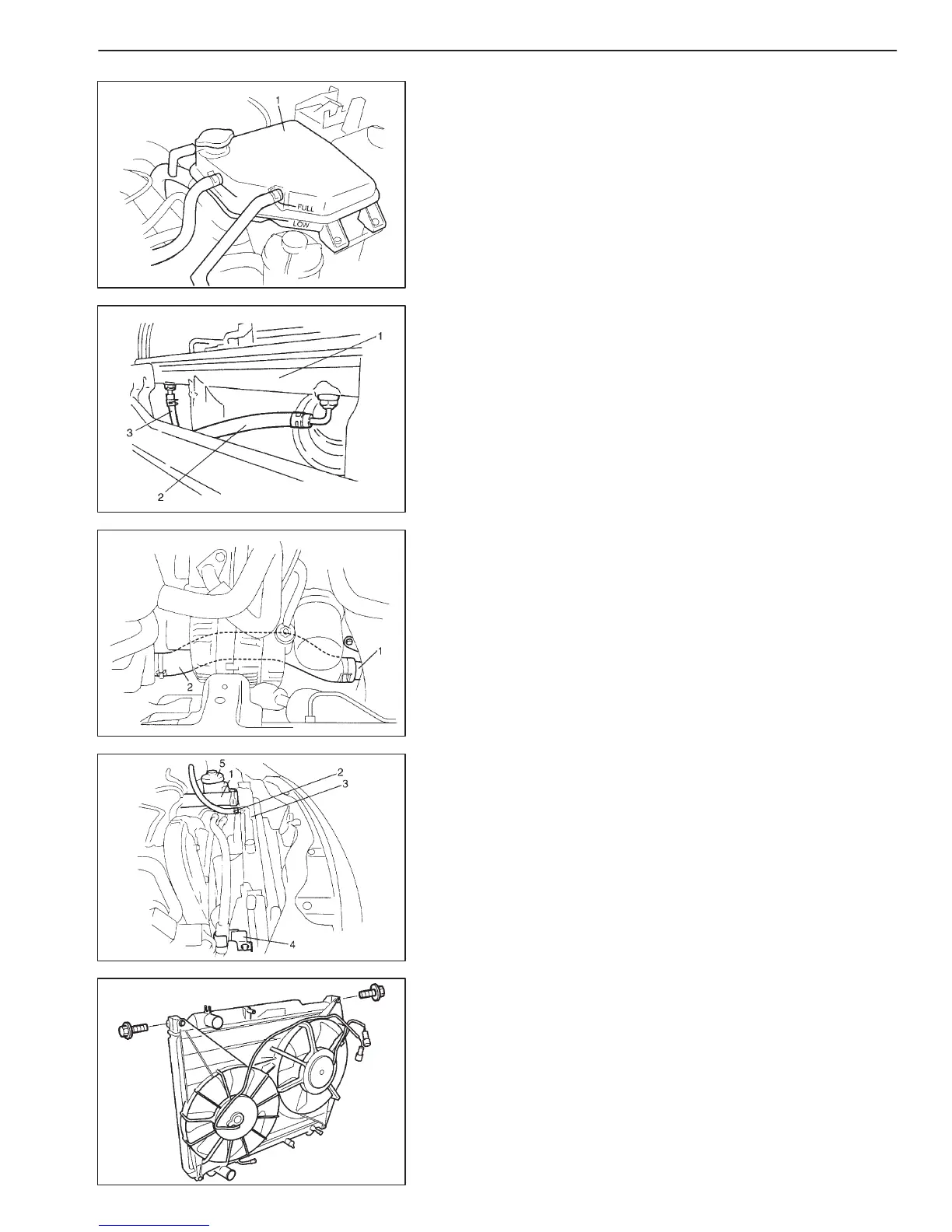

REMOVAL
1) Disconnect negative cable at battery.
2) Drain cooling system by loosening drain plug of radiator.
3) Remove degassing tank (1) and its bracket.
4) When servicing A/T vehicle, place oil pan under radiator (1) and
disconnect A/T fluid hoses (2), (3) from radiator.
5) Detach water outlet pipe (1) from engine mounting bracket and
disconnect radiator outlet hose (2) from radiator.
6) Disconnect radiator inlet hose (1) and degassing tank hose (2)
from radiator (3).
7) Remove P/S high pressure hose clamp (4) and detach P/S fluid
reservoir (5).
8) Disconnect radiator fan motor couplers and remove radiator
with radiator fan motor assembly.
9) Remove radiator fan motor assembly from radiator.
