ENGINE DIAGNOSIS (RHZ ENGINE WITH SINGLE-CONNECTOR ECM) 6-37

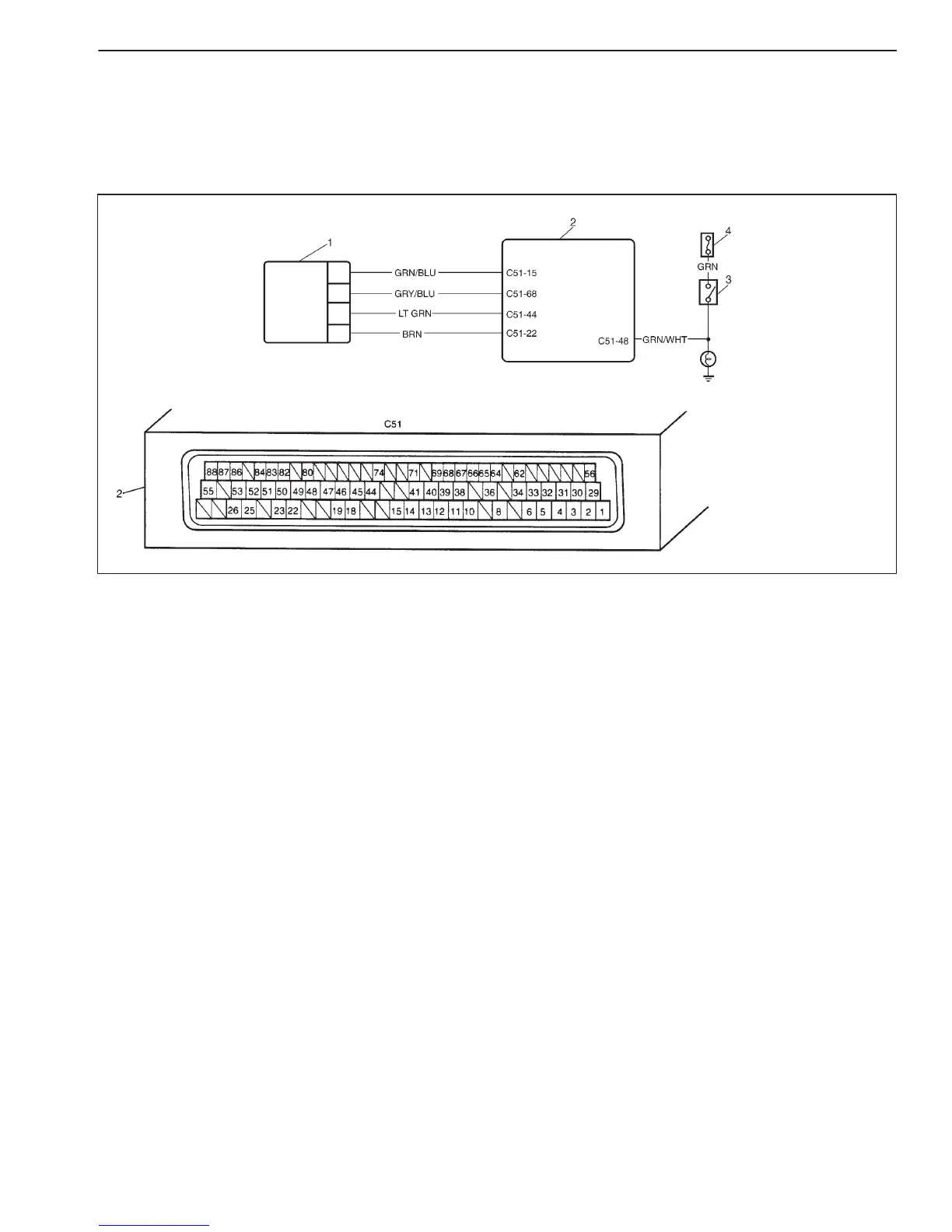

1. Throttle position sensor
2. ECM
3. Brake lamp switch
4. “STOP” fuse (20 A)
DTC P0121 (DTC P0120) THROTTLE POSITION CIRCUIT RANGE/PERFORMANCE
PROBLEM
DTC P0604 (P0120) THROTTLE POSITION SENSOR MONITORING SYSTEM
MALFUNCTION
WIRING DIAGRAM
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine
at idle speed for 10 sec. or more.
3) Check DTC and pending DTC by using scan tool.
To Next Page
