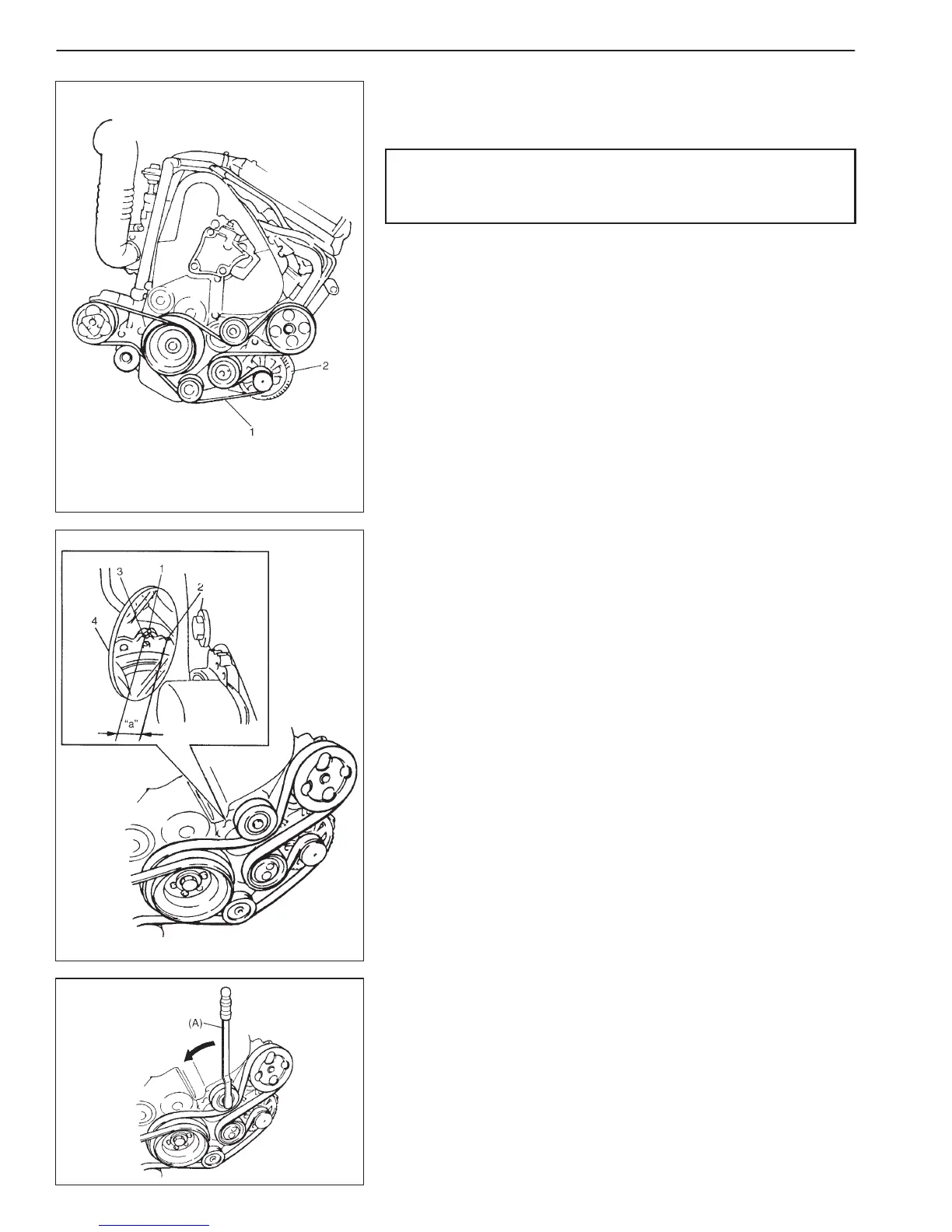

1. Generator belt
2. Generator
3. Zero wear mark
6H-2 CHARGING SYSTEM
ON-VEHICLE SERVICE
GENERATOR BELT
WARNING:
Disconnect negative cable at battery before inspection, re-
moving and installing Generator belt.
INSPECTION
D Verify that belt engages with pulley groove correctly.
D Visually check for wear and damage on belt and pulley contact
surface and damage on pulley.
D Inspect belt for cracks, cuts, deformation, wear and cleanliness
using mirror under enough lighting.
If any defect exists, replace.
D Check that belt wear check mark (1) (tension indicator) is within
range “a” using mirror (4) under enough lighting.
If wear check mark (1) is aligned with maximum wear mark (2) or
out of range “a”, replace generator belt with a new one.
REMOVAL
1) Using special tool (A) for dynamic roller tensioner, turn dynamic
roller tensioner counterclockwise to loosen it.
Special tool
(A): 09919-56610/OUT0000143
To Next Page
