6E3-16 ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE)

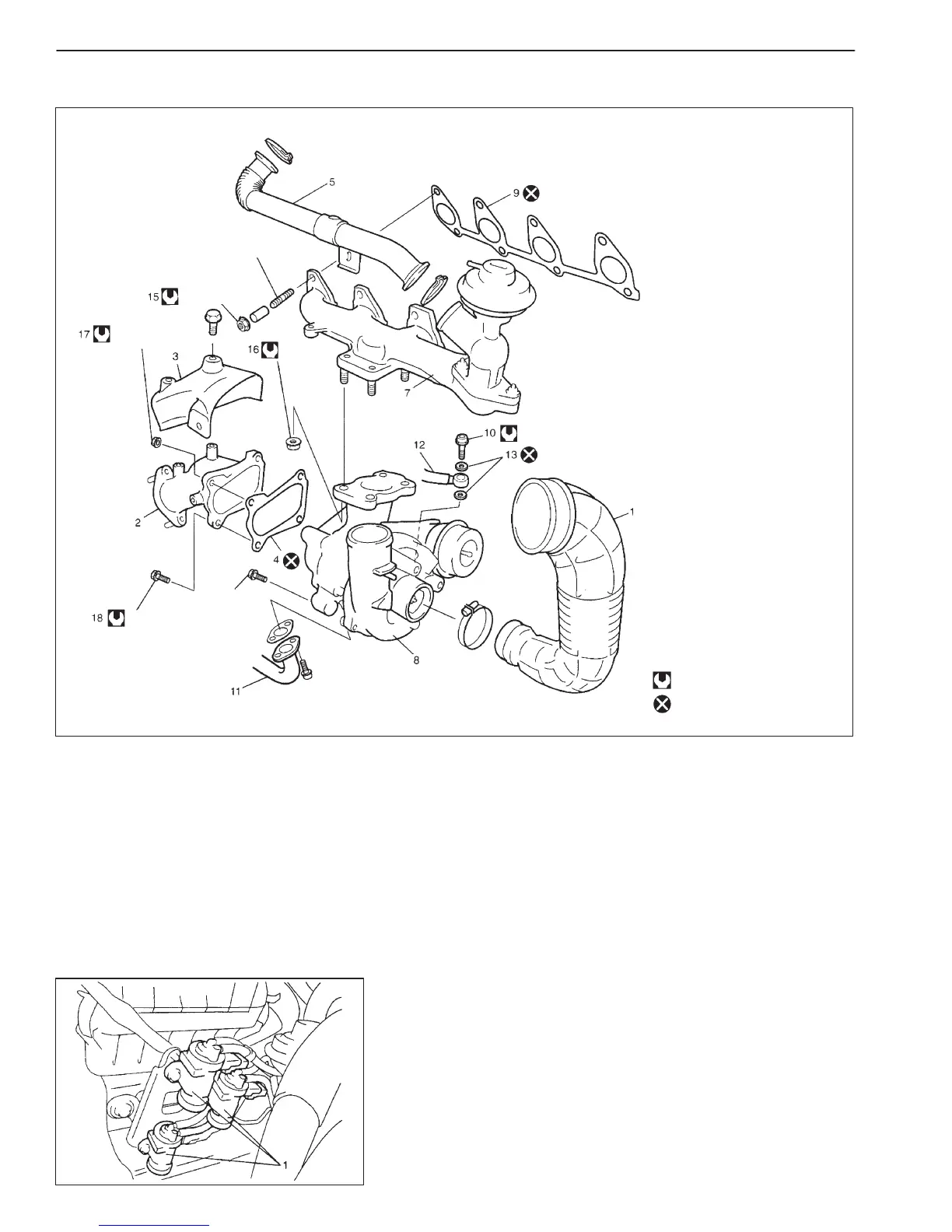

1. Air cleaner outlet hose
2. Turbocharger outlet pipe
3. Cover
4. Gasket
5. EGR pipe
6. Stud bolt
7. Exhaust manifold
8. Turbocharger
9. Exhaust manifold gasket
10. Union bolt
11. Oil return pipe
12. Lubrication pipe
13. Gasket
14. Turbocharger bracket bolt
15. Exhaust manifold nut
16. Turbocharger nut
17. Turbocharger outlet pipe nut
18. Turbocharger outlet pipe bolt
: Tightening Torque
: Do not reuse
14
6
25 N
.
m
(2.5 kg-m,
18.0 lb-ft)
25 N
.
m
(2.5 kg-m,
18.0 lb-ft)
30 N
.
m
(3.0 kg-m, 22.0 lb-ft)
30 N
.
m (3.0 kg-m, 22.0 lb-ft)
20 N
.
m (2.0 kg-m, 14.5 lb-ft)
TURBOCHARGER
REMOVAL
1) Disconnect negative cable at battery.
2) Remove intercooler and intercooler inlet hose.
3) Remove air cleaner outlet hose and air cleaner case.
4) Disconnect vacuum hoses from waste gate actuator and EGR
valve.
5) Detach solenoid valves (1) from its bracket.
