AUTOMATIC TRANSMISSION (4 A / T) 7B1-63

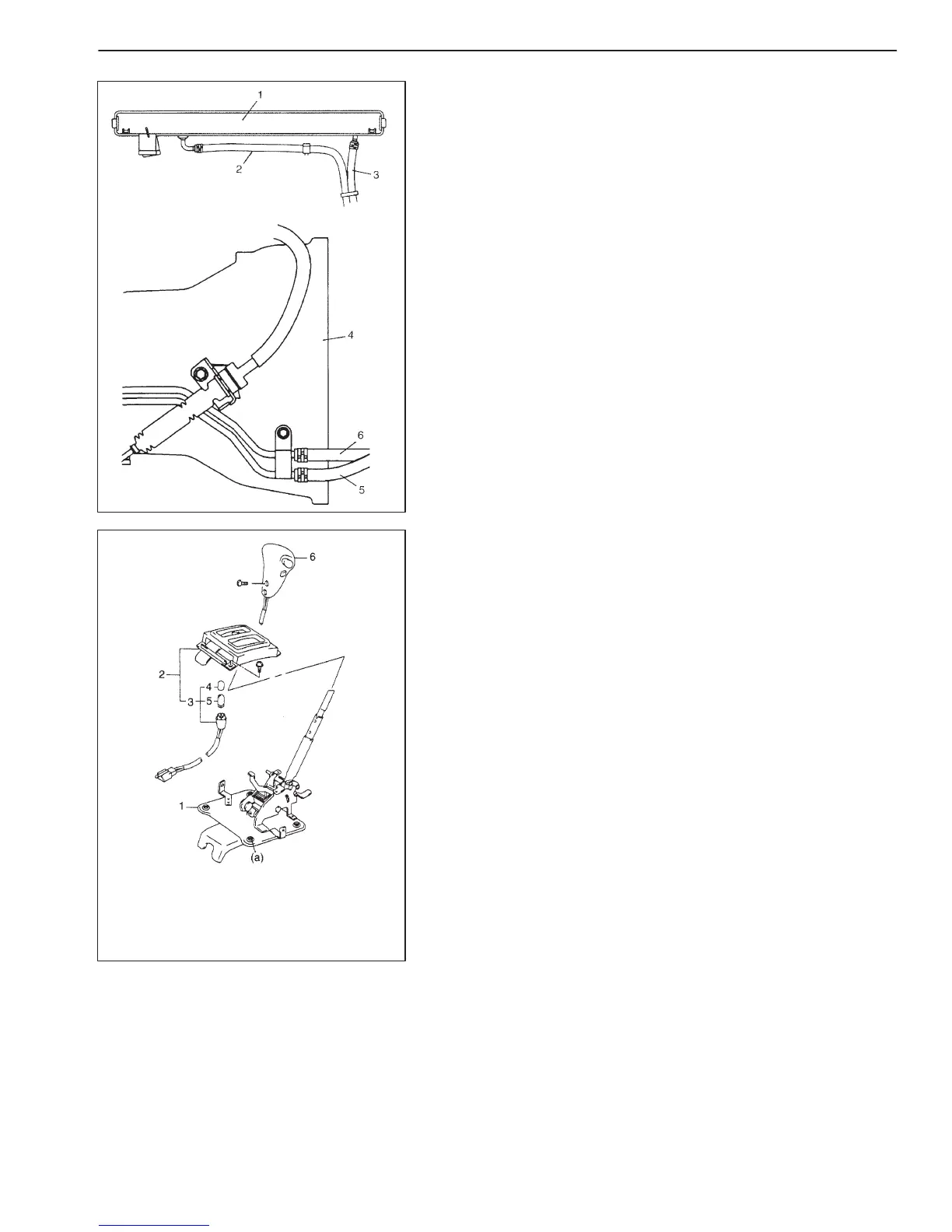

1. Radiator
2. Inlet hose (Outlet from oil cooler)
3. Outlet hose (Inlet to oil cooler)
4. Converter housing
5. Outlet hose
6. Inlet hose
1. Manual lever assembly
2. Select indicator assembly
3. Illumination lamp assembly
4. Bulb filter
5. Bulb
6. Knob assembly
OIL COOLER HOSES
When replacing them, be sure to note the followings.
D to replace clamps at the same time
D to insert hose as far as bulge of pipe
D to clamp hose securely
MANUAL SELECTOR ASSEMBLY
Tightening torque
Manual selector assembly bolts (a):
18 N
.
m (1.8 kg-m, 13.5 lb-ft)
REMOVAL
1) Disconnect negative cable at battery.
2) Remove console box.
3) Disconnect connector for illumination lamp and O/D off switch.
4) Remove selector assembly mounting bolts.
5) Disconnect select cable from lever of selector assembly.
To Next Page
