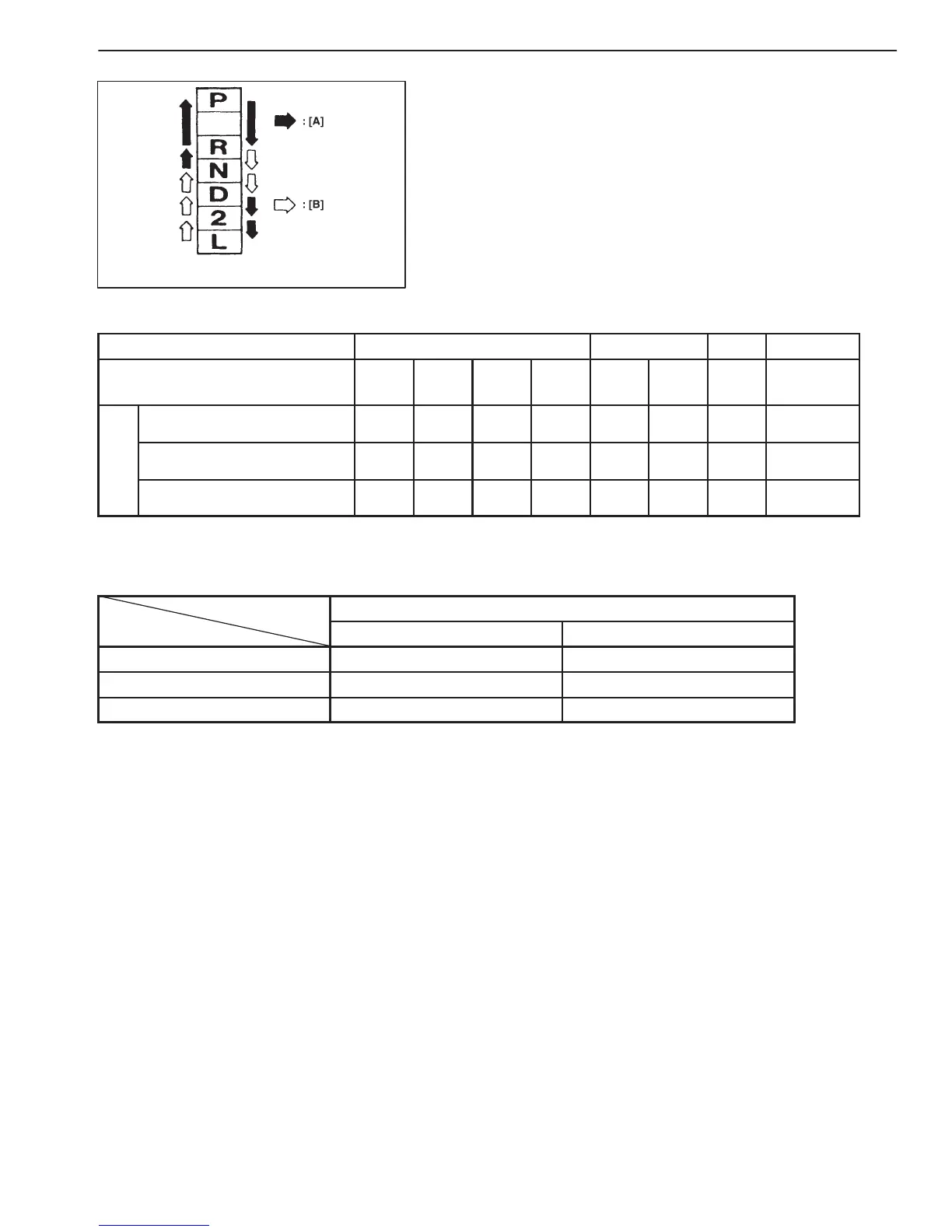

[A]: Shift the select lever with its button pushed in.
[B]: Shift the select lever without pushing its button.
AUTOMATIC TRANSMISSION (4 A / T) 7B1-9
SOLENOIDS
CHANGE MECHANISM
The same select pattern shift lever is used as the floor type and fre-
quently used “N” and “D” ranges are made selectable freely.
OPERATION OF SHIFT SOLENOIDS AND TCC SOLENOID
RANGE D 2 L P, N & R
GEAR 1st 2nd 3rd
4th
(O/D)
1st 2nd 1st –
Shift solenoid-A (NO.1)
f f
X X
f f f f
Shift solenoid-B (NO.2) X
f f
X X
f
X X
TCC solenoid X X
f f
X X X X
f: ON (Turn power on)
X: OFF (Turn power off)
Valve status
Turn power ON Turn power OFF
Shift solenoid-A (NO.1) Close Open
Shift solenoid-B (NO.2) Close Open
TCC solenoid Open Close
