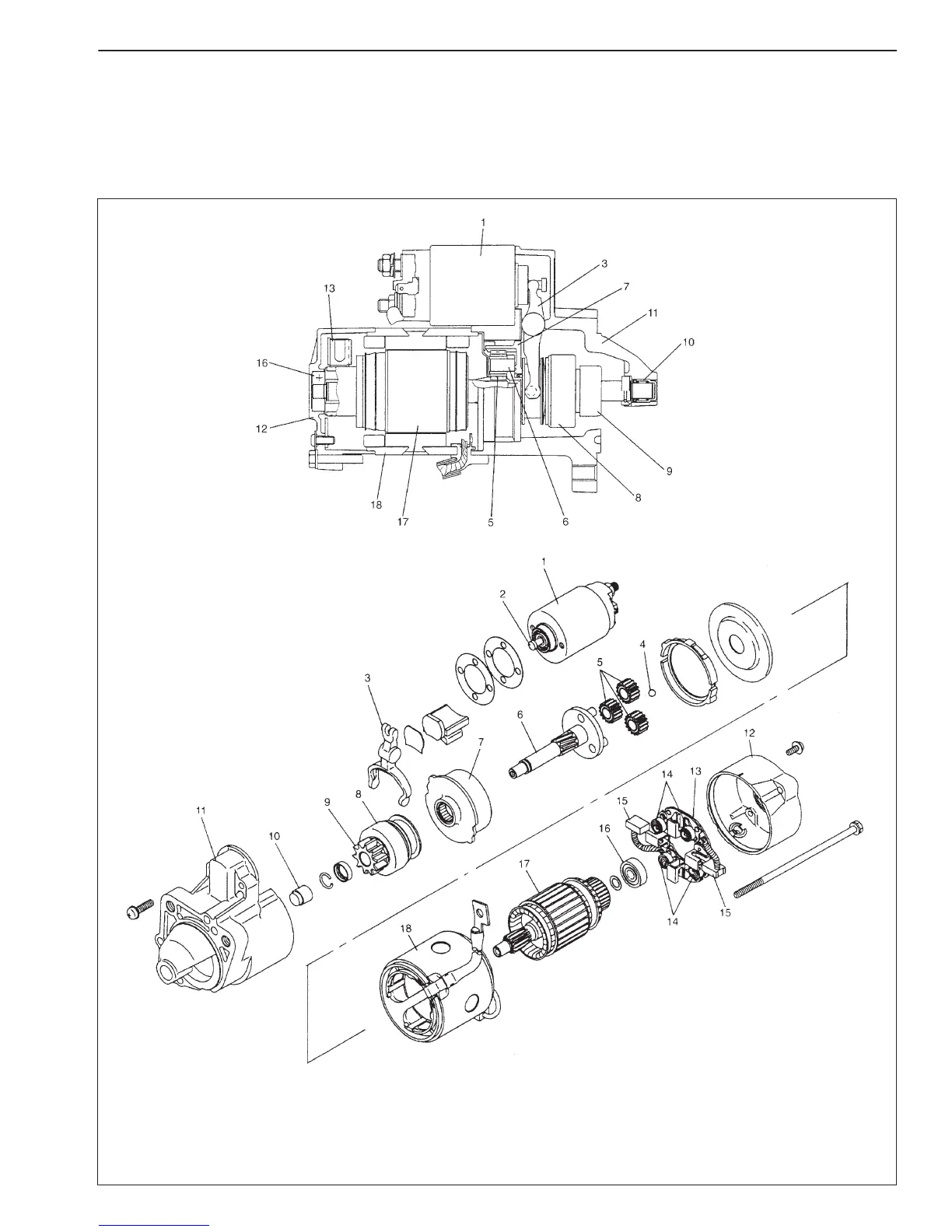

1. Magnetic switch
2. Plunger
3. Lever
4. Ball
5. Planetary gear
6. Planetary carrier shaft
7. Internal gear
8. Over-running clutch
9. Pinion gear
10. Bush
11. Front housing
12. Rear bracket
13. Brush holder
14. Brush spring
15. Brush
16. Bearing
17. Armature
18. Yoke
CRANKING SYSTEM 6G-3
STARTING MOTOR
The starting motor consists of parts shown in below.
The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be
protected against possible dirt and water splash.
