7B1-106 AUTOMATIC TRANSMISSION (4 A / T)
UNIT ASSEMBLY

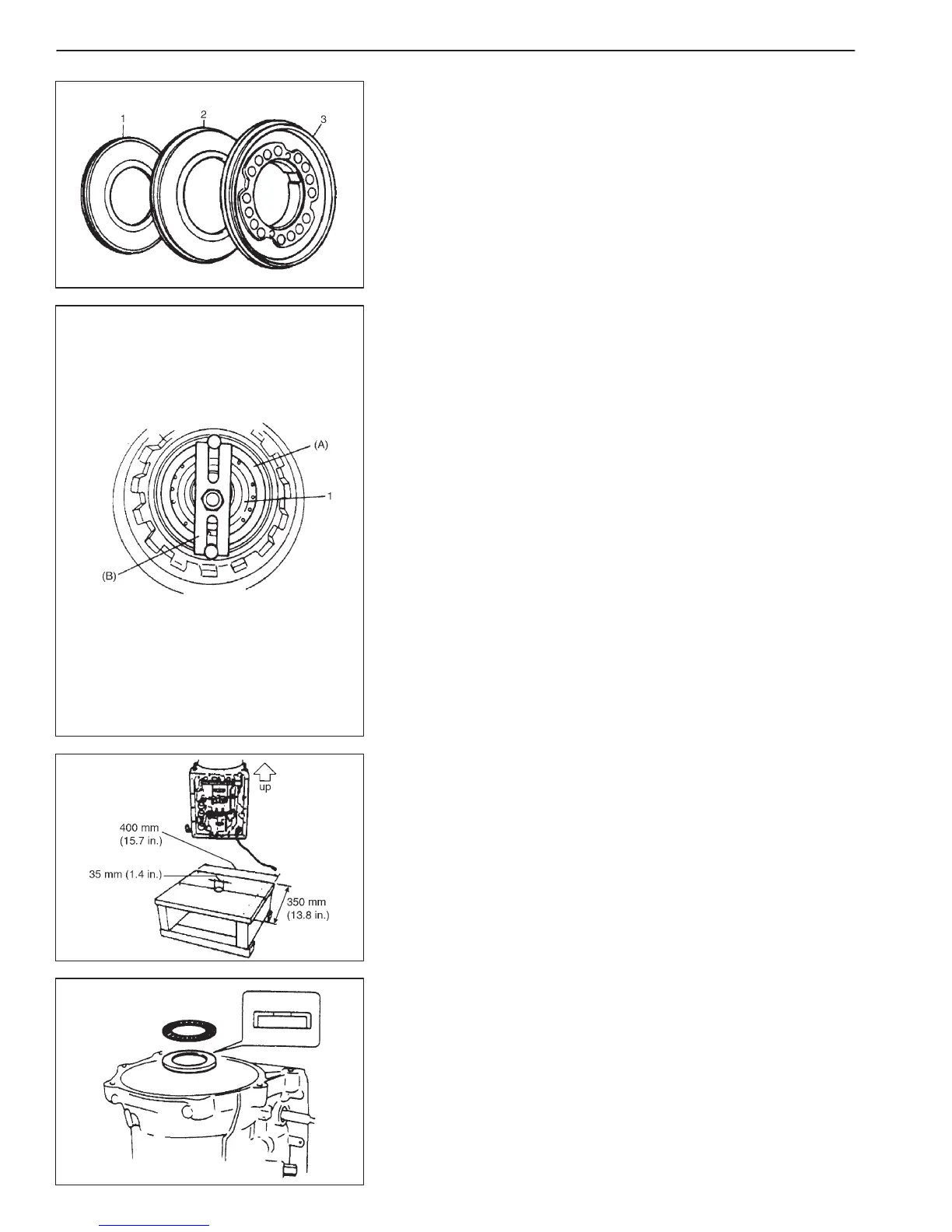

1) After applying A/T fluid to new O-rings, install them to reverse
brake piston (3), reaction sleeve (2) and secondary reverse pis-
ton (1).
2) install reverse brake piston assembly and brake piston return
spring to transmission case, using care not to damage O-ring.
Then install snap ring (1) with special tool.
Special tool
(A): 09926-98320
(B): 09941-84510
NOTE:
D Install so that opening in snap ring (1) will not align with
any of 3 lugs of spring seat.
D Do not compress spring more than necessary and do not
allow it fall or tilt.
3) Prepare a stand as shown in the figure. It is necessary because
work will be done with transmission case set upright from this
step on.
NOTE:
D To protect transmission case against damage, spread
cloth on stand where case contacts.
D A stand of such size as shown in figure will facilitate work.
4) Install thrust output shaft bearing and thrust bearing output shaft
race after lubricating them with grease.
NOTE:
Make sure that thrust bearing output shaft race is installed
in proper direction.
To Next Page
