1. Pre post heating relay
(control unit)
2. ECM
3. Glow plugs
4. Main fuse
5. From ignition switch
6-1-30 ENGINE DIAGNOSIS (RHZ ENGINE WITH TRIPLE-CONNECTOR ECM)
DTC P0380 (P0380)/P1404 (P0380) PRE/POST HEAT RELAY CIRCUIT MALFUNCTION

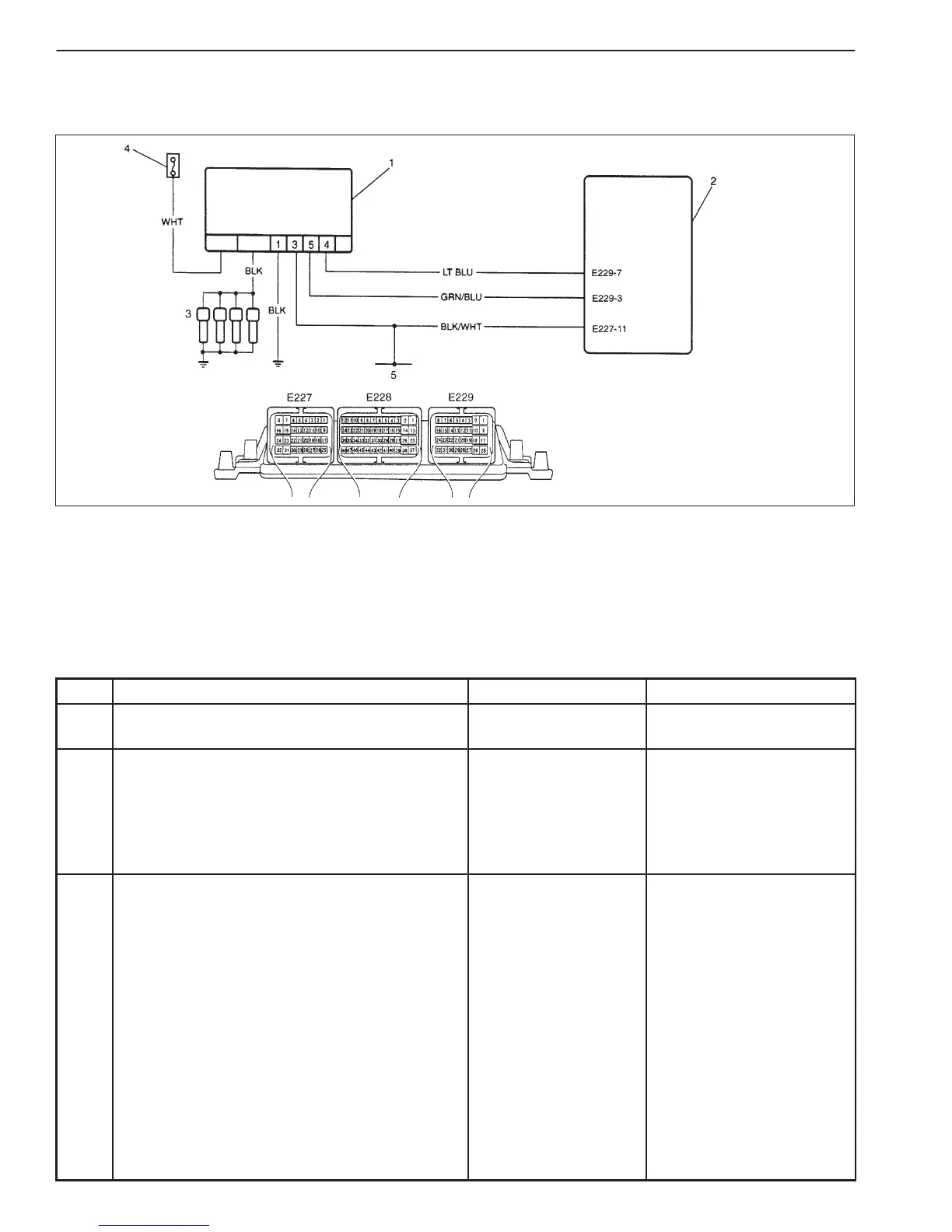

WIRING DIAGRAM
DTC CONFIRMATION PROCEDURE
1) Connect scan tool to DLC with ignition switch OFF.
2) Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool.
3) Turn ignition switch ON for 30 sec. after OFF. Then run engine at idle speed for 30 sec.
4) Check DTC and pending DTC by using scan tool.
TROUBLESHOOTING
STEP ACTION YES NO
1 Was “ENGINE DIAG. FLOW TABLE”
performed?
Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE”.
2 Check Wire Harness
1) Remove ECM cover from ECM referring to
“CHECK VOLTAGE” in this section.
2) Check voltage between E229-7/E227-11
and ground with ignition switch ON.
Are they about 12 V?
Go to Step 3. D “LT BLU” wire open or
short to ground, or
D “BLK/WHT” wire open or
short to ground
3 Check Wire Harness
1) Check voltage between E229-3 and ground
with ignition switch ON.
Is it about 0 V?
D Poor E229-7 or
E229-3 connection
If connections are in
good condition,
substitute a known-
good ECM and
recheck.
D “GRN/BLU” wire open or
short,
D “BLK” wire (between
pre-post heating relay
and ground) open or
short to ground
D “BLK” wire (between
pre-post heating relay
and glow plug) open or
short to ground
D Poor glow plug “BLK”
wire terminal connection
If all are OK, substitute a
known-good ECM and
recheck.
To Next Page
