7A2-28 MANUAL TRANSMISSION
5TH AND REVERSE SYNCHRONIZER RING

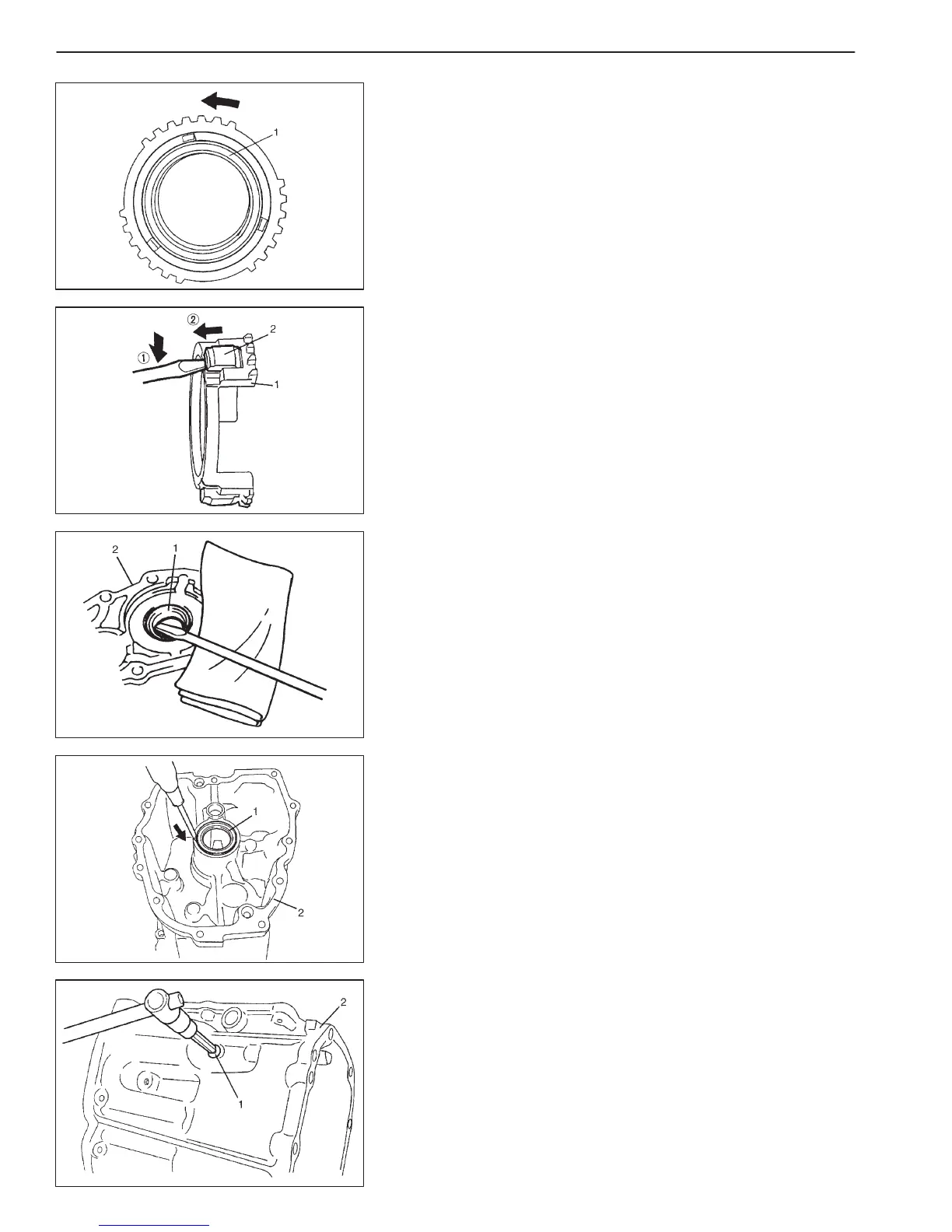

1) Turn 5th gear synchronizer pull ring (1) around 45 degrees and
then remove 5th gear synchronizer pull ring and 5th gear syn-
chronizer cone ring from 5th gear synchronizer outer ring.
2) Remove 5th gear synchronizer outer ring from reverse brake
ring (1) and then remove keys (2) and springs from reverse
brake ring by using slotted screw driver or the like as shown in
the figure.
INPUT SHAFT BEARING RETAINER AND OIL SEAL
Remove oil seal (1) from bearing retainer (2) by using rod or the like
as shown in the figure.
NOTE:
Unless oil seal is leaky or its lip is excessively hardened, re-
placement is not necessary.
TRANSMISSION REAR CASE
1) Take out oil seal (1) from rear case (2).
2) Remove interlock cam plug (1) from rear case (2).
To Next Page
