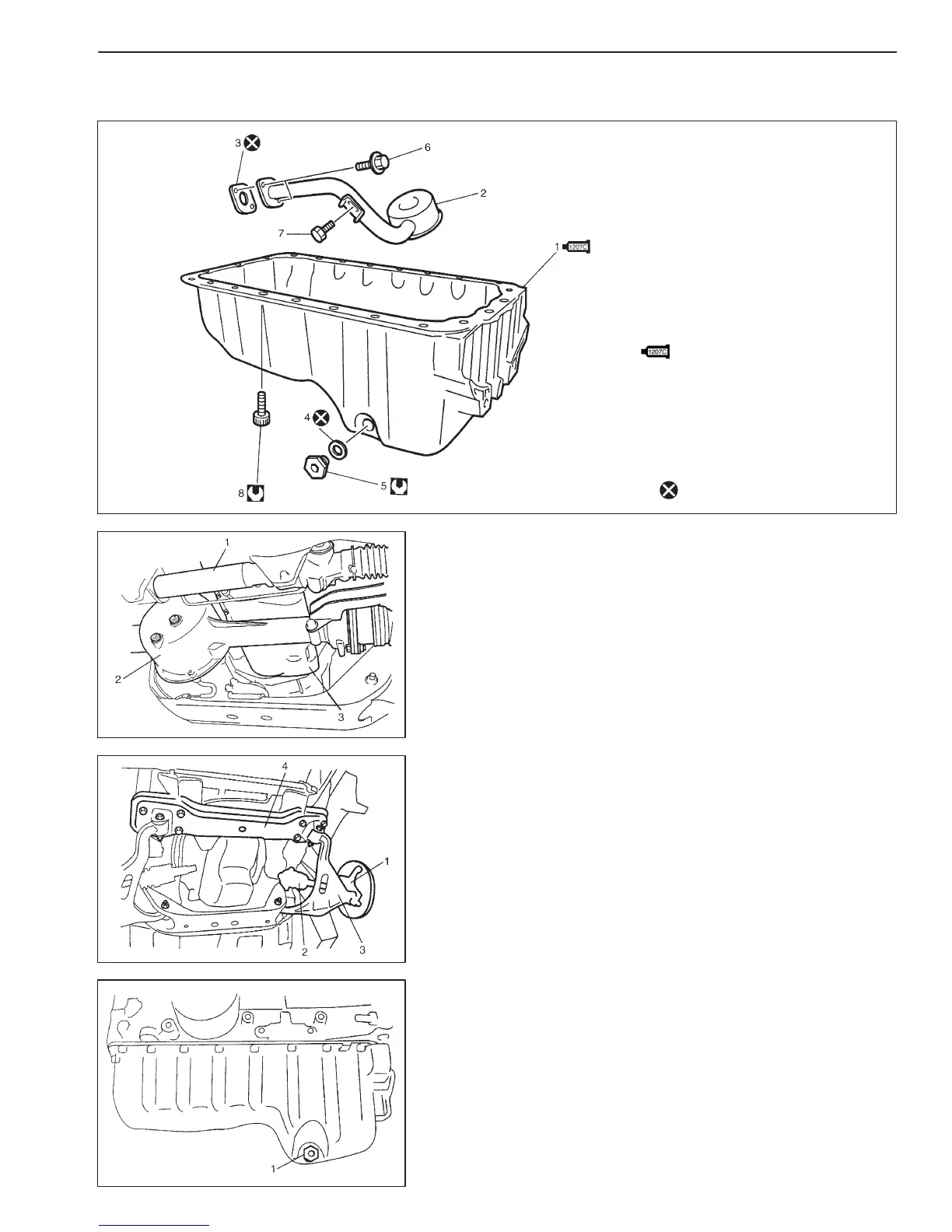

ENGINE MECHANICAL (RHZ ENGINE) 6A3-21
1. Oil pan:
Apply sealant 1207C 99000-31150
to mating surface.
2. Strainer
3. O-ring
4. Gasket
5. Drain plug
6. Strainer bolt
7. Bracket bolt
8. Oil pan bolt
: Do not reuse
16 N
.
m
(1.6 kg-m, 11.5 lb-ft)
34 N
.
m (3.4 kg-m, 24.5 lb-ft)
3. Oil pan
OIL PAN AND OIL PUMP STRAINER
REMOVAL
1) Remove oil level gauge.
2) Raise vehicle and remove both front wheels.
3) Remove steering gear box (1) from vehicle referring to Section
3B1.
4) Remove front differential housing (2) with differential from chas-
sis referring to Section 7E.
5) Remove knuckle (1), drive shaft (2) and suspension control arm
(3) of either side after removing stabilizer bar.
Refer to Section 3D of the Service Manual mentioned in FORE-
WORD of this manual.
6) Detach suspension frame (4) from chassis.
7) Drain engine oil by removing drain plug (1).
