7B1-36 AUTOMATIC TRANSMISSION (4 A / T)

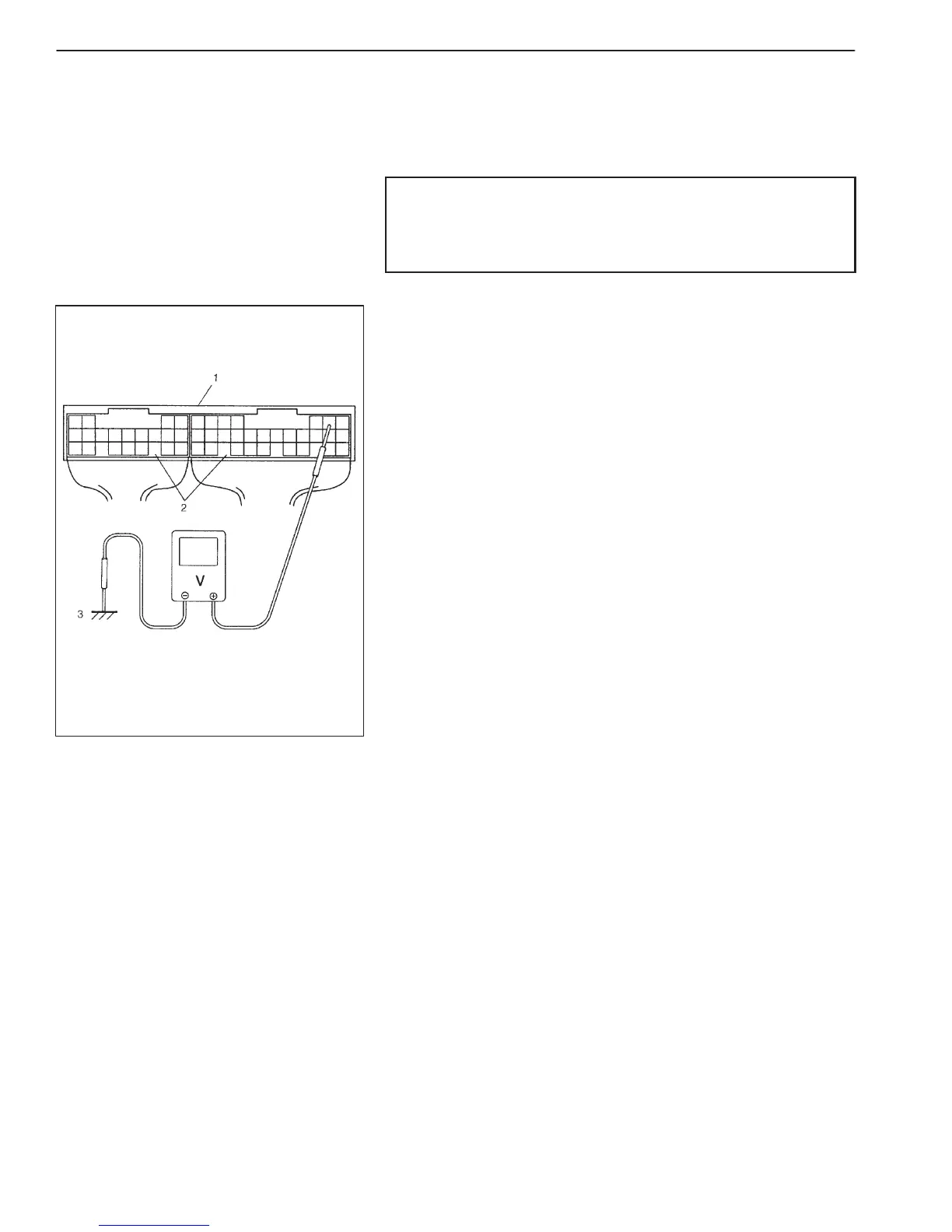

1. TCM
2. Connectors
3. Body ground
INSPECTION OF TCM AND ITS CIRCUITS
TCM and its circuits can be checked at TCM wiring connectors by
measuring voltage and resistance.
CAUTION:
TCM cannot be checked by itself, it is strictly prohibited to
connect voltmeter or ohmmeter to TCM with connector dis-
connected from it.
INSPECTION
1) Remove TCM from vehicle referring to “TRANSMISSION CON-
TROL MODULE” in this section.
2) Connect TCM connectors to TCM.
3) Check voltage at each terminal of connectors connected.
NOTE:
As each terminal voltage is affected by battery voltage, con-
firm that it is 11 V or more when ignition switch is ON.
WIRE HARNESS AND CONNECTORS
Refer to Section 8A (“WIRING DIAGRAM” manual.)
