6A3-4 ENGINE MECHANICAL (RHZ ENGINE)
CYLINDER HEAD COVER

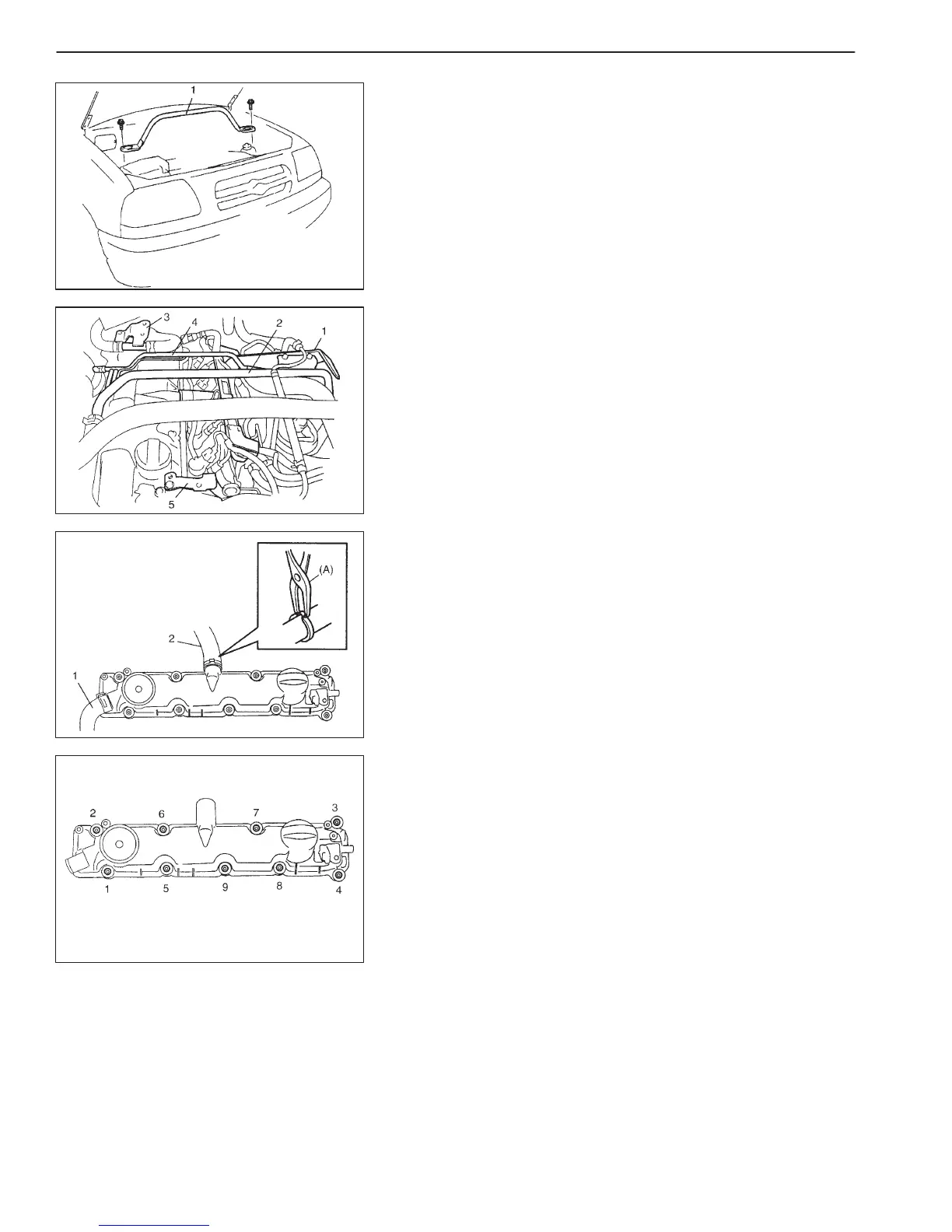

REMOVAL
1) Disconnect negative cable at battery.
2) Remove TP sensor (Accelerator stroke sensor) from air clean-
er case and intake air pressure sensor from strut tower bar.
3) Remove strut tower bar (1).
4) Remove intercooler and intercooler inlet hose referring to “IN-
TERCOOLER” in Section 6E3.
5) Remove intercooler bracket (1), heater outlet pipe (2), heater
inlet pipe (3), vacuum pipe (4) and bracket (5).
6) Remove upper timing belt cover.
7) Disconnect breather hose (1) and PCV hose (2) from cylinder
head cover.
Special Tool
(A): 09919-46510/OUT0000110
8) Disconnect CMP sensor connector. Remove CMP sensor, if
necessary.
9) Loosen cylinder head cover bolts in such order as indicated in
figure and remove them.
10) Remove cylinder head cover with its gasket.
To Next Page
