7A2-6 MANUAL TRANSMISSION
SHIFT CONTROL LEVERS
REMOVAL

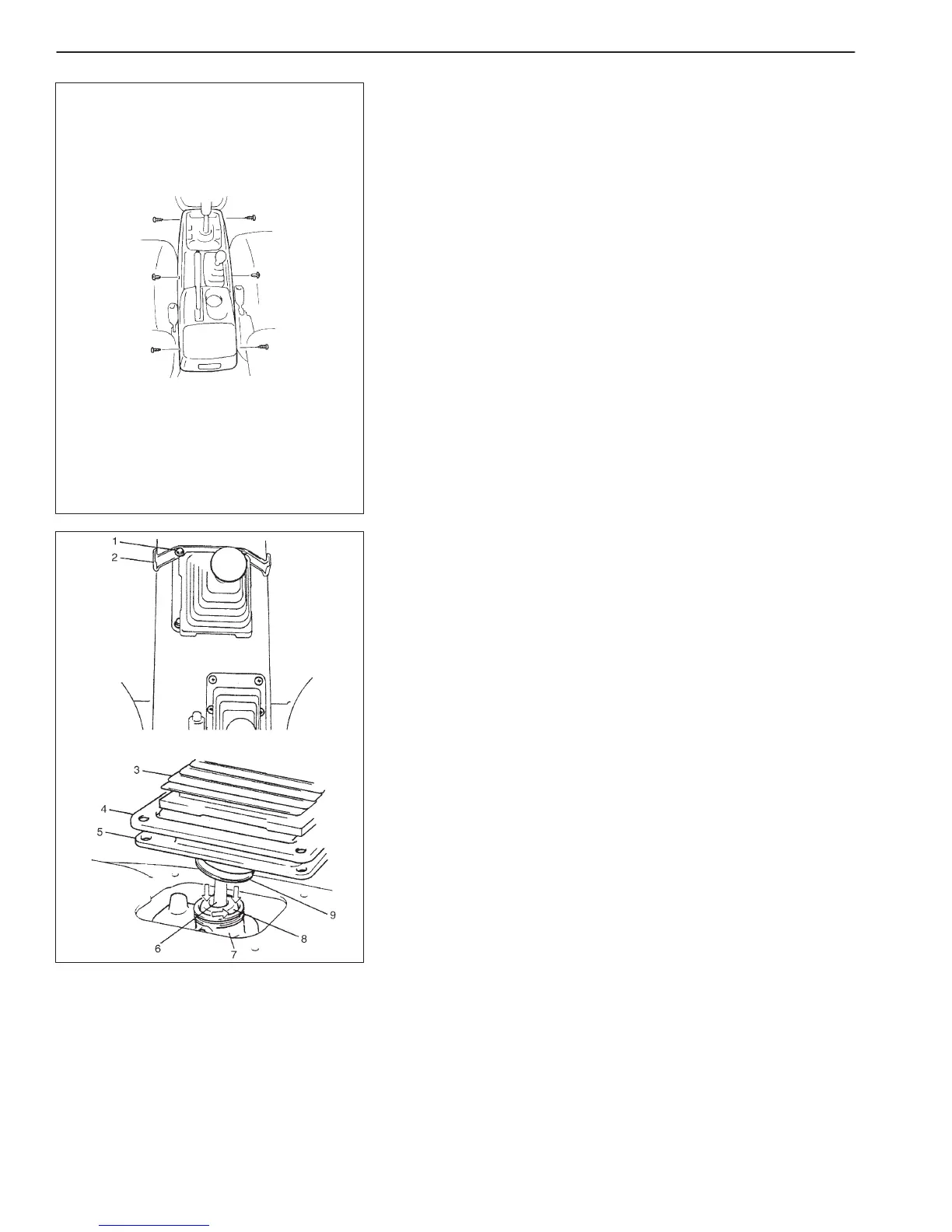

1) Remove 4 screws at the front and rear and 2 clips at the center
then take off front and rear center console boxes.
NOTE:
To remove clip, push in its center pin first.
2) Remove console box bracket (2) by removing bolts (1).
3) Lift up boot No.3 (3), boot cover (4) and boot No.2 (5).
4) Remove boot clamp and then remove boot No.1 (9) from trans-
mission shift lever case (7).
5) With gear shift control case cover (8) pushed down with fingers,
turn it to counter clockwise and take out shift control lever (6).
6) Take out transfer shift control lever in similar manner as de-
scribed above.
INSPECTION AND INSTALLATION
1) Check shift control lever lower portion and control lever locating
sheet for excessive wear, and boot for damage. Correct or re-
place if necessary.
2) Perform above steps also for transfer shift control lever.
