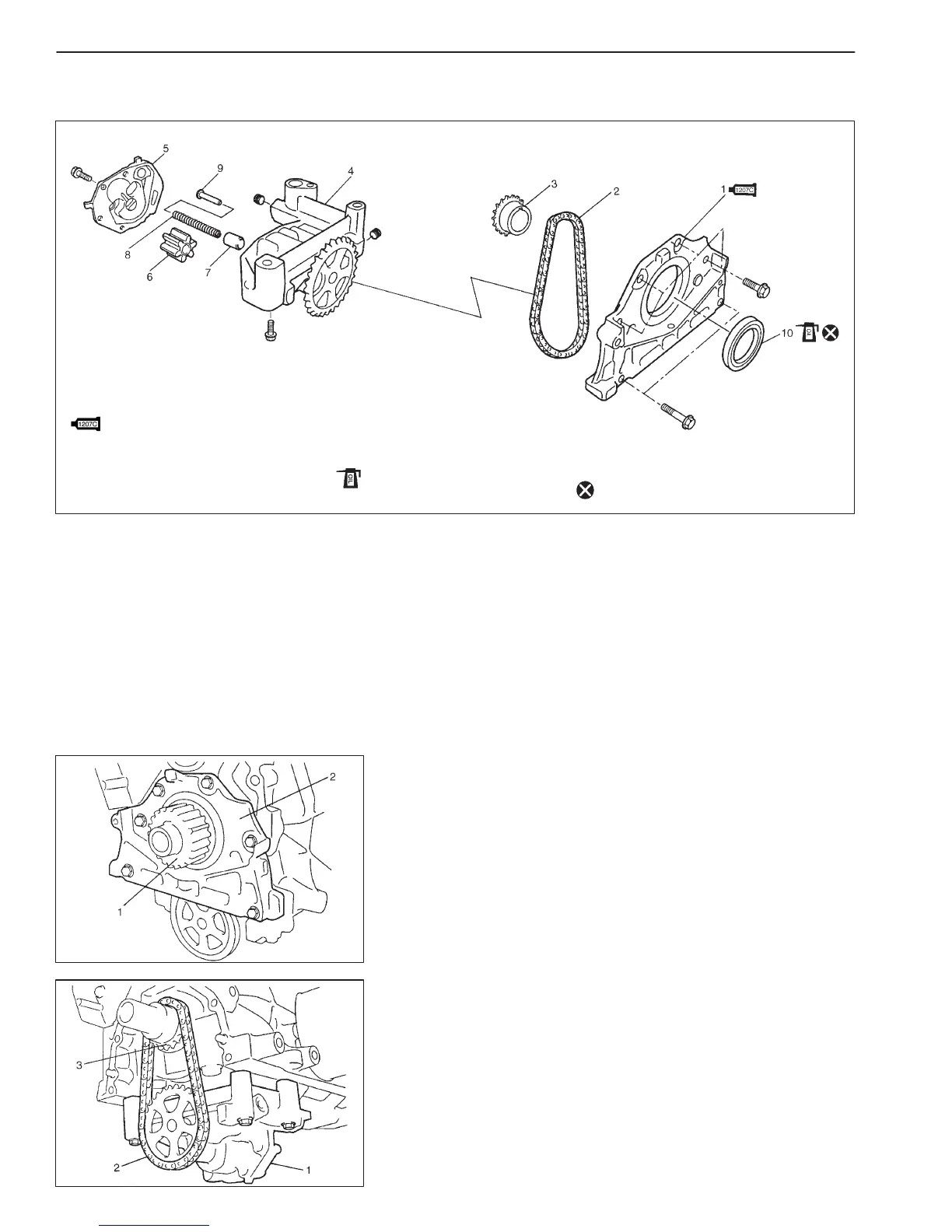

6A3-26 ENGINE MECHANICAL (RHZ ENGINE)
1. Gasket holder plate:
Apply sealant 1207C 99000-31150
to mating surface.
2. Oil pump chain
3. Oil pump drive sprocket
4. Oil pump case No.1
5. Oil pump case No.2
6. Rotor
7. Relief valve
8. Relief spring
9. Retainer
10. Oil seal:
Apply engine oil to oil seal lip.
: Do not reuse
OIL PUMP
REMOVAL
1) Disconnect negative cable at battery.
2) Remove timing belt referring to “TIMING BELT AND BELT TEN-
SIONER” in this section.
3) Remove oil pan and oil pump strainer referring to “OIL PAN AND
OIL PUMP STRAINER” in this section.
4) Remove crankshaft timing belt pulley (1) and then remove gas-
ket holder plate (2).
5) After removing sprocket key from crankshaft, remove oil pump
(1), oil pump chain (2) and oil pump drive sprocket (3) all togeth-
er.
To Next Page
