4A2-2 FRONT DRIVE SHAFT /SHAFT BEARING, OIL SEAL
ON-VEHICLE SERVICE
DRIVE SHAFT
ASSEMBLY
CAUTION:
D To prevent any problem caused by washing solution, do
not wash joint boots. Degreasing of those parts with cloth
is allowed.
D Bend each boot band against forward rotation.
D Do not squeeze or distort boot when fastening it with
bands.
Distorted boot caused by squeezing air may reduce its du-
rability.

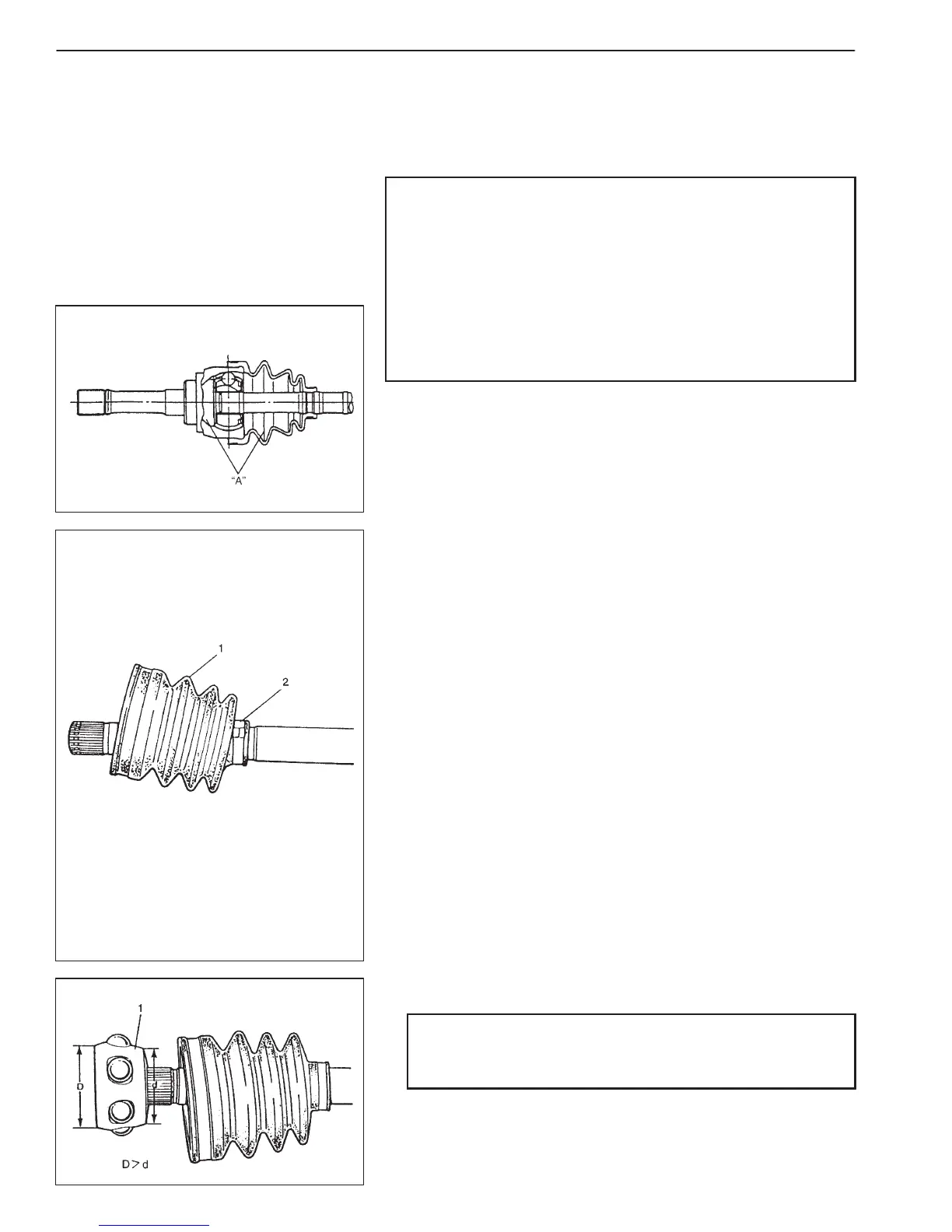

1) Fully apply joint grease to wheel side joint.
Use joint grease in the tube included in spare part.
2) Fit wheel side boot on shaft.
Fill up inside of boot with remainder of joint grease of about 90
gram.
Before fixing boot band, insert screwdriver into boot on joint side
and allow air to enter boot so that air pressure in boot becomes
the same as atmospheric pressure.
“A”: Joint Grease
(about 70 – 80 g (2.5 – 2.8 oz) (Black)) (for A/T vehicle)
(about 85 – 95 g (3.0 – 3.4 oz) (Yellow)) (for M/T vehicle)
3) Fixing boot band.
4) Install boot (1) onto drive shaft till its small diameter side fits to
shaft groove and fix there with boot band (2).
5) Install cage (1) to shaft.
CAUTION:
Install cage directing smaller outside diameter side to
shaft end.
