7E-12 DIFFERENTIAL (FRONT)
1. Mounting bracket L
2. Bush
3. Mounting bracket R
A: Slit alignment 45_
4
2
3
1
2

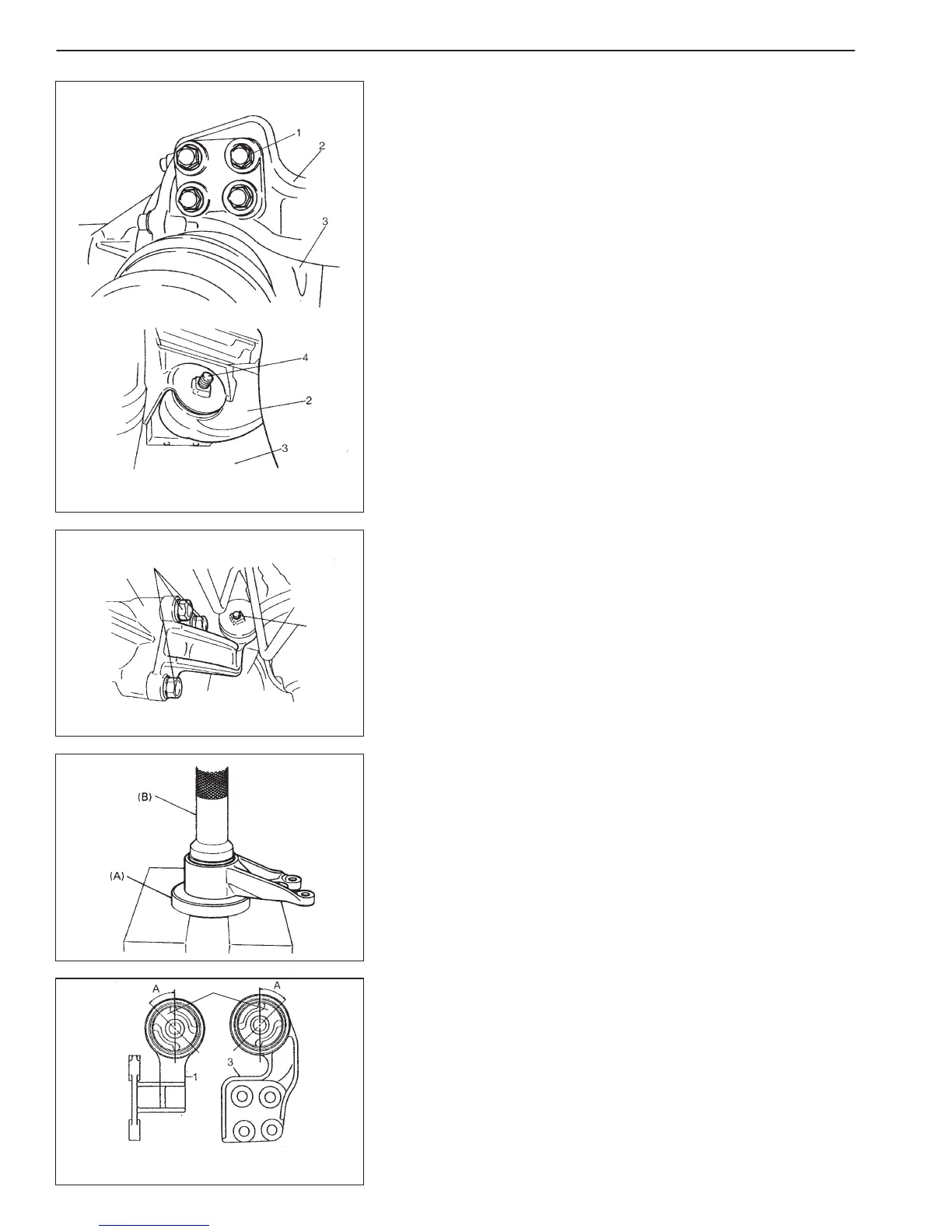

REMOVAL AND INSTALLATION
DIFFERENTIAL MOUNTINGS
1) Lift up vehicle and turn steering wheel all way to the right.
2) Separate front mounting bracket R (2) from differential housing
(3) by removing bolts (1) from its lower part.
3) Remove mounting bracket R (2) by removing mounting front bolt
(4) from its upper part.
4) Remove mounting bracket L (3) from differential housing (1) by
removing upper and lower fastening bolts (2, 4).
5) Check conditions of each bush. If it is damaged or deteriorated,
drive it out with special tools and press for replacement.
Special Tool
(A): 09951-26010
(B): 09951-16080
6) Position slit in each bush as shown when press-fitting it.
