ENGINE AND EMISSION CONTROL SYSTEM (RHZ ENGINE) 6E3-35

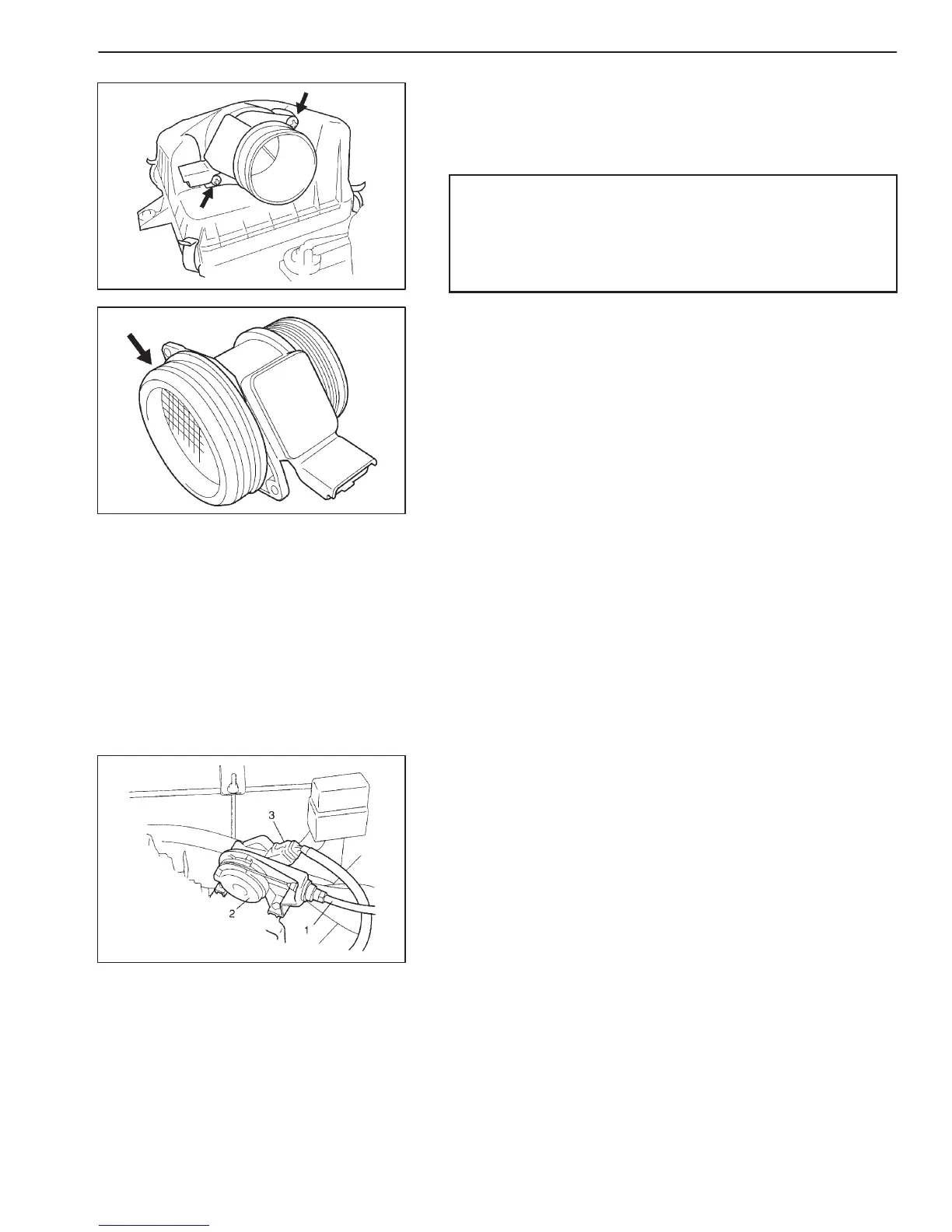

3) Remove MAF sensor from air cleaner case.
NOTE:
Don’t disassemble MAF sensor.
CAUTION:
D Do not expose MAF sensor to any shock.
D Do not blow compressed air by using air gun or the like.
D Do not put finger or any other object into MAF sensor.
Malfunction may occur.
INSTALLATION
1) Check MAF sensor seal for deterioration and damage.
2) Install MAF sensor to air cleaner case.
3) Install air cleaner outlet hose.
4) Connect MAF sensor coupler securely.
5) Connect battery negative cable to battery.
THROTTLE POSITION SENSOR (TP SENSOR)
(ACCELERATOR STROKE SENSOR)
INSPECTION
Refer to “DTCs P0121, P0221 and P0604” in following section.
D For vehicle equipped with single-connector ECM : Section 6
D For vehicle equipped with triple-connector ECM : Section 6-1
REMOVAL
1) Disconnect negative cable at battery.
2) Disconnect accelerator cable (1) from TP sensor (2).
3) Disconnect coupler (3) from TP sensor.
4) Remove TP sensor with its bracket (4).
INSTALLATION
For installation, reverse removal procedure noting the following.
D Adjust accelerator cable play to specification referring to “AC-
CELERATOR CABLE ADJUSTMENT” in this section.
To Next Page
