ECG, arrhythmia, and ST segment
ECG display
On the Cockpit, the ECG display consists of:
– ECG parameter field
– ECG waveforms
– Show all page containing up to 12 leads
The ECG parameter field appears differently when
you activate arrhythmia monitoring. For more
information, see page 205.
ECG parameter field
Parameter fields report parameter values and
indicate the alarm status of parameters. Parameter
fields can also report technical conditions such as
disconnected sensors, and so on. For detailed
information regarding the content of parameter
fields for each parameter, see the chapter
“Troubleshooting“on page 509.
The ECG parameter field contains the following
elements:
A Parameter label
B Units of measure – can be
activated/deactivated
C Upper/lower alarm limits or crossed triangle
symbol when alarms are deactivated
D Heart rate value
E Heart symbol that flashes with each detected
ECG complex (if pacer detection is activated,
the symbol appears as when a paced beat
is detected)
During brief artifact episodes, the parameter field
does not display a heart rate value.
NOTE

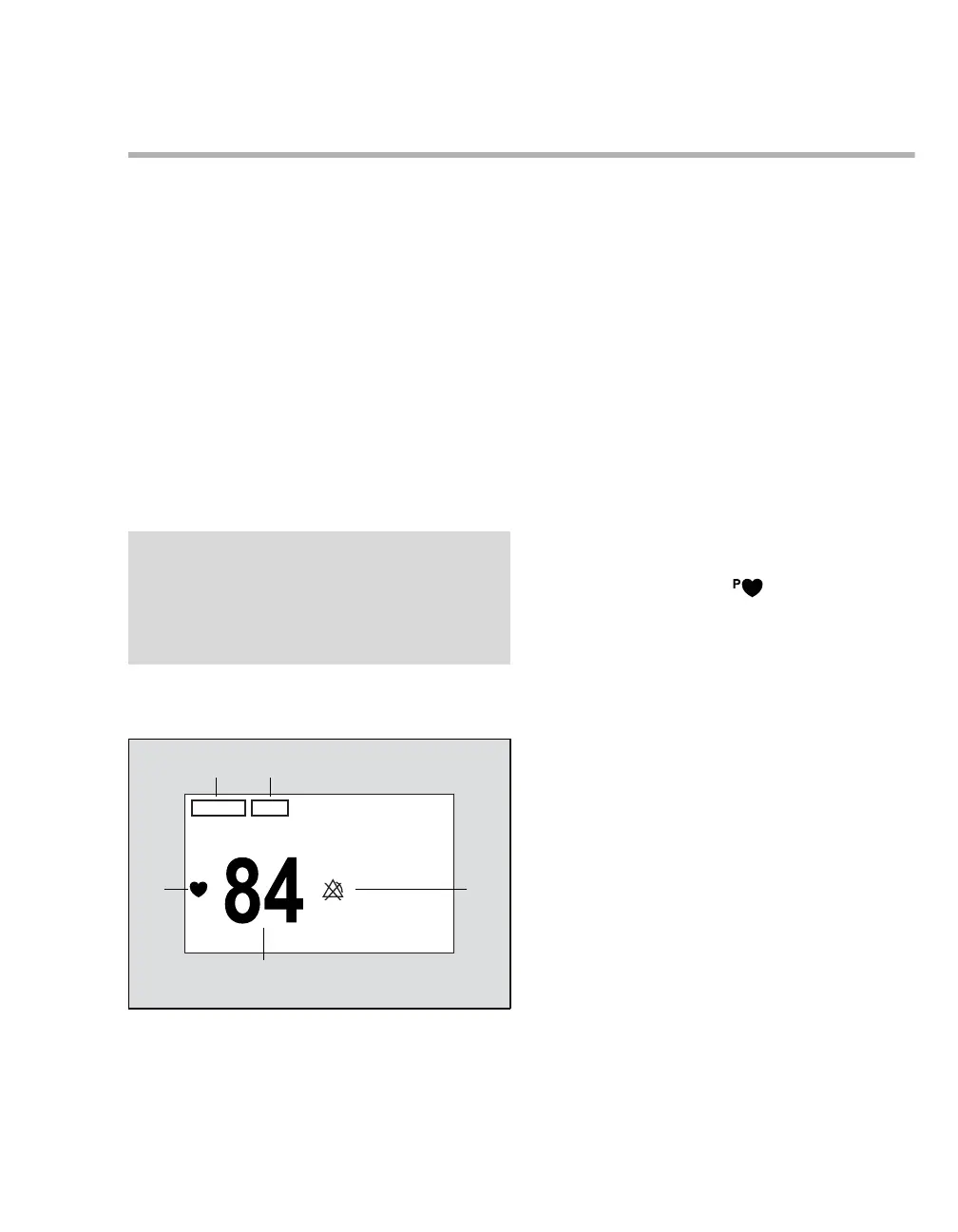

The following diagram shows a typical parameter
field layout. This layout may change when
additional parameters are put on display. For
more information, see “Parameter fields“on
page 62.
