System configuration
456 Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n
Screen setup – the View editor
In addition to the eight Dräger views, each Cockpit
can have eight custom views. The View editor is
an option that allows you to create, modify, and
save custom views.

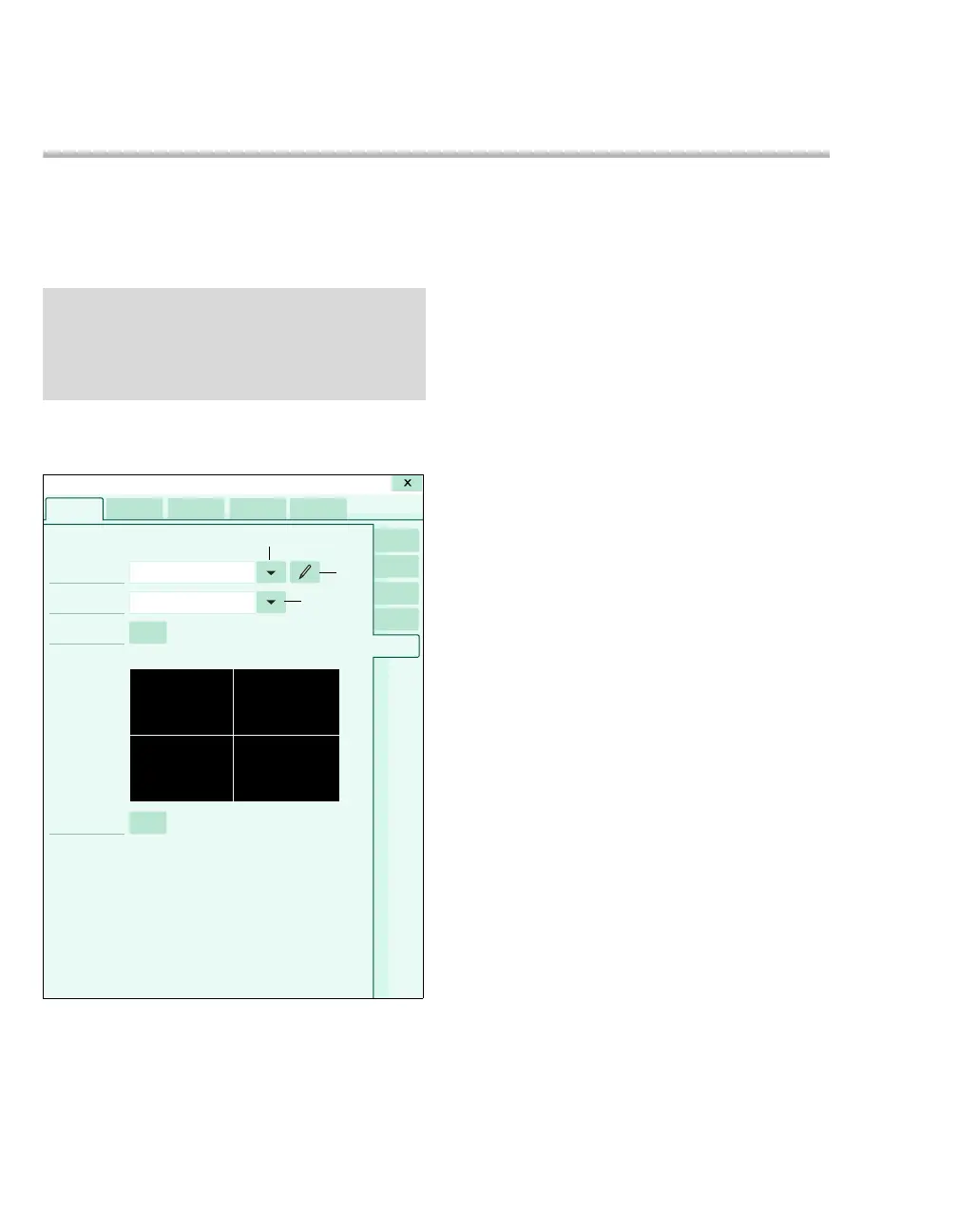

The following diagram shows the View editor
page.
A View field and arrow button
B Symbol for changing the name of the selected
view
C Template field and arrow button
D View editor tab
E Layout panel
F Profiles... button
G Save View symbol
To access the view editor
1 Select the System setup... button on the main
menu bar.
2 Select the Screen setup tab > View editor tab
(C).
3 Enter the password and select the Enter button.
View editor functions
In the following procedures, the letters in
parentheses correspond to the View editor
diagram.
The View editor allows you to perform the following
functions:
– Modify existing views
– Save changes to a view
– Change the name of the selected view
– Assign a view to profiles
NOTE
Although the Cockpit can display many parame-
ters and waveforms, use discretion when building
custom views to make sure clinically relevant in-
formation is not obscured or unreadable.
052
A
B
G
F
C
E
D
System setup
