Connecting the CO2 sensor
Before connecting any CO2 hardware, make sure
the airway adapter in use matches the airway
adapter setting of the Cockpit. For example, do not
use a disposable airway adapter if the Cockpit is
configured for a reusable airway adapter (and vice
versa). Not aligning the adapter with the
configuration setting at the Cockpit compromises
the displayed CO
2 value.
The CO2 cable connects directly to the M540.
A M540 CO
2 port
B CO
2 sensor cable connector
C Mainstream airway adapter
D Y-piece
E Airway adapter
F Endotracheal tube adapter

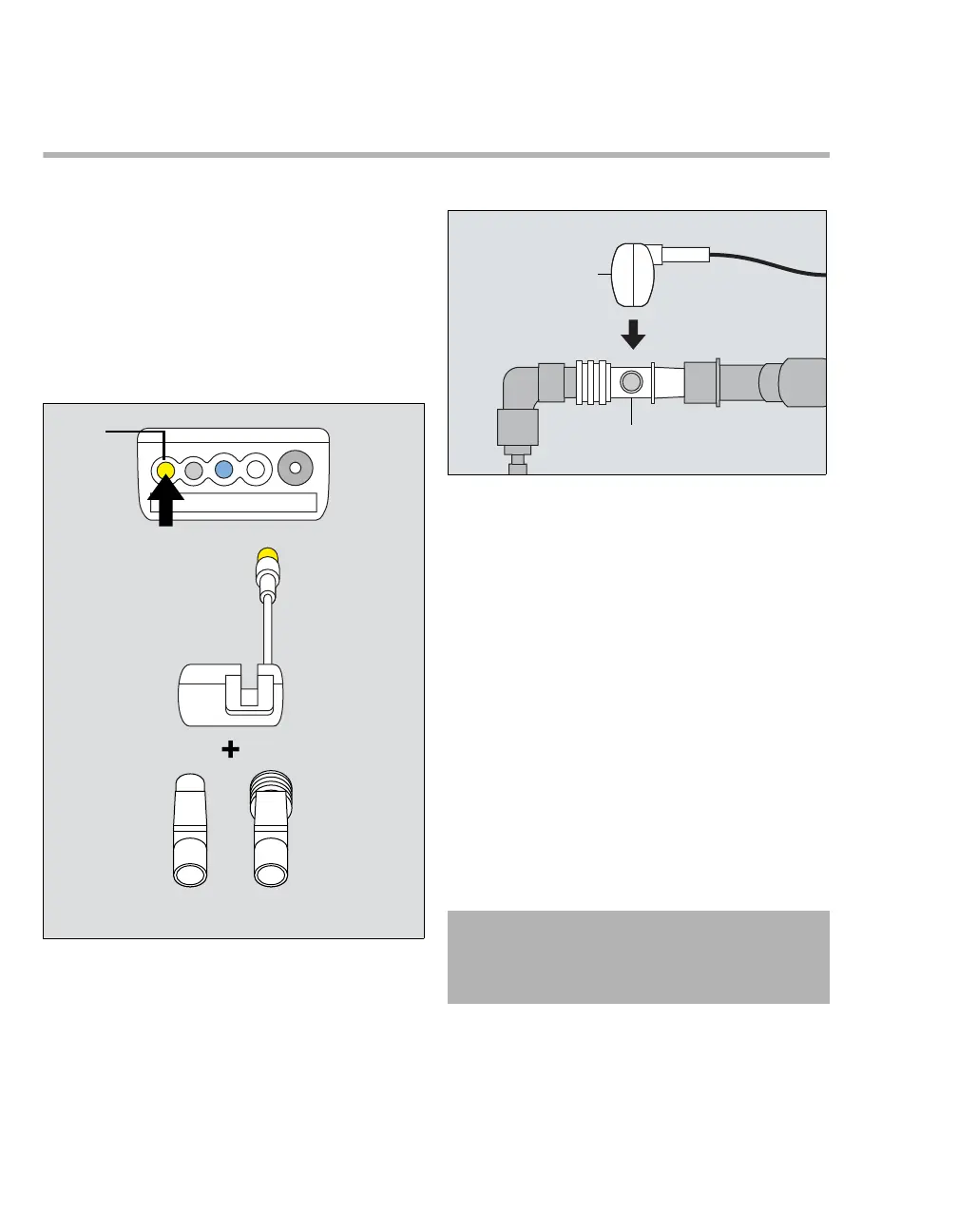

To connect the hardware
The IACS is only compatible with the sensors
6871950 revision 5 or higher. Previous revisions
are not compatible.
1 Connect the CO
2 sensor cable connector (B) to
the yellow CO2 port (A) on the M540.
2 Select a suitable Mainstream airway adapter
(C) whose windows are clean and dry (replace
the adapter if necessary).
3 Insert the airway adapter (E) between the
endotracheal tube adapter (F) and the ventilator
Y-piece (D).
4 Snap the Mainstream airway adapter (C) firmly
into the airway adapter and make sure that the
cable is directed away from the patient.
347
A
B
C
348
CAUTION
Always position the sensor windows of the airway
adapter vertically to prevent patient secretions
from obscuring the adapter windows.
C
E
DF
