ST display
When ST alarms are activated, the Cockpit alarms
for all ST leads whether they are displayed or not.
In either case, the ST parameter field flashes and
the alarming lead is identified in the header bar.
When ST monitoring is activated, current ST values
display in a separate parameter field below the
heart rate parameter field.
Parameter fields report parameter values and
indicate the alarm status of parameters. Parameter
fields can also report technical conditions such as
disconnected sensors, and so on. For detailed
information regarding the content of parameter
fields for each parameter, see the chapter
"Troubleshooting" on page 509.
The ST parameter field contains the following
elements:
A Selected ST lead labels
B Upper/lower alarm limits or crossed triangle
symbol when alarms are deactivated
C Selected ST deviation values
D Units of measure – can be
activated/deactivated
NOTE

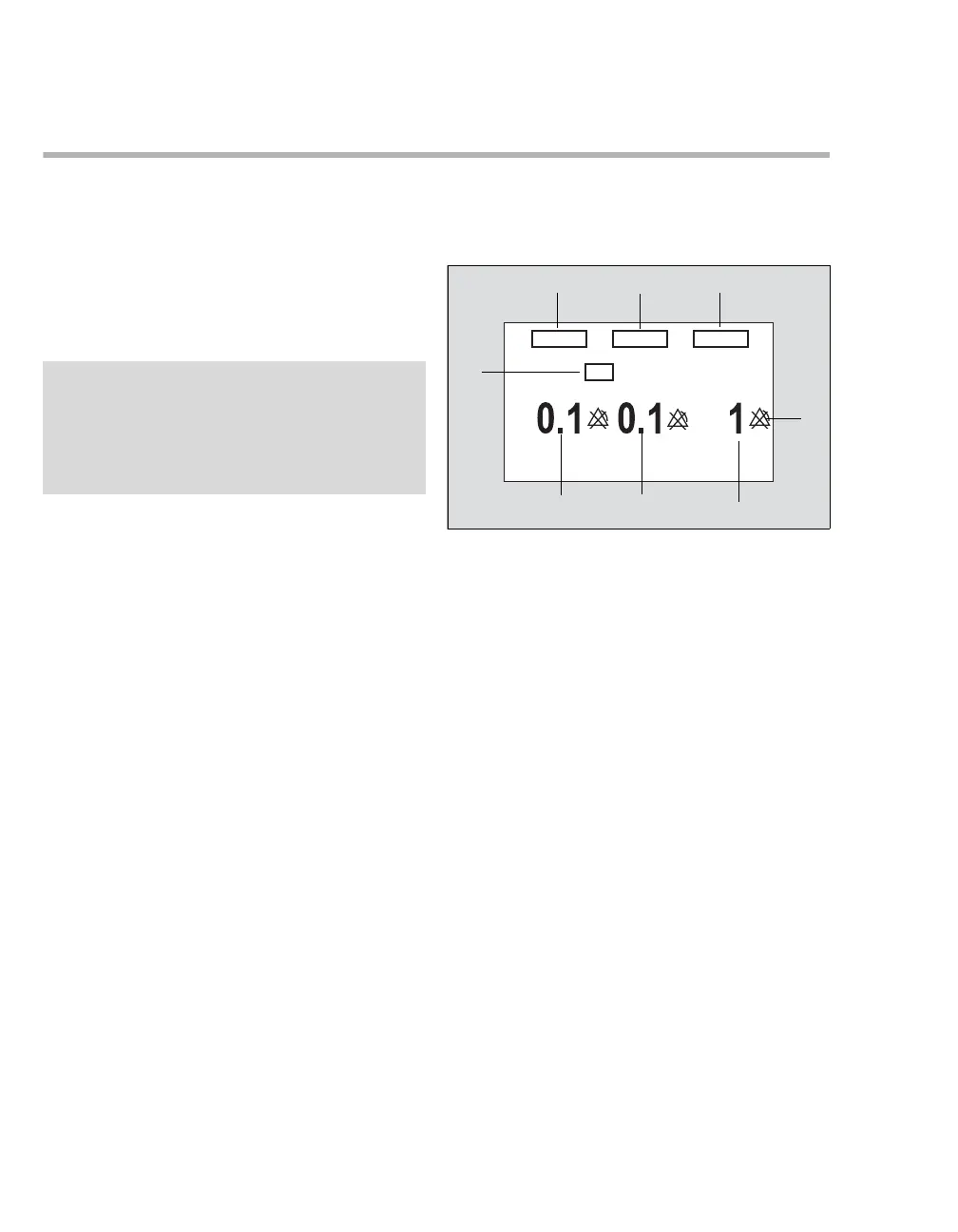

The following diagram shows a typical parameter
field layout. This layout may change when
additional parameters are put on display. For
more information, see "Parameter fields" on
page 62.
