Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n 411
External devices – MEDIBUS.X devices
Viewing MEDIBUS.X parameter data
The Cockpit displays parameter data originating
from connected MEDIBUS.X devices in the
following locations:
– Parameter fields
– Loops pages (see page 412)
– Trends pages (see page 163)
– Show all pages (see 413)
The Cockpit displays the following waveforms,
loops, and parameters:
– Airway pressure waveform (Paw) and
associated parameter field
– Expiratory flow waveform and associated
flow/volume (vent) parameter field
–CO
2 waveforms and associated parameter field
– Loops (flow-volume, pressure-volume)
Parameter fields
Parameter fields report parameter values and
indicate the alarm status of parameters. Parameter
fields can also report technical conditions such as
disconnected sensors, and so on. The content of a
parameter field can be configured. For more
information see page 414.

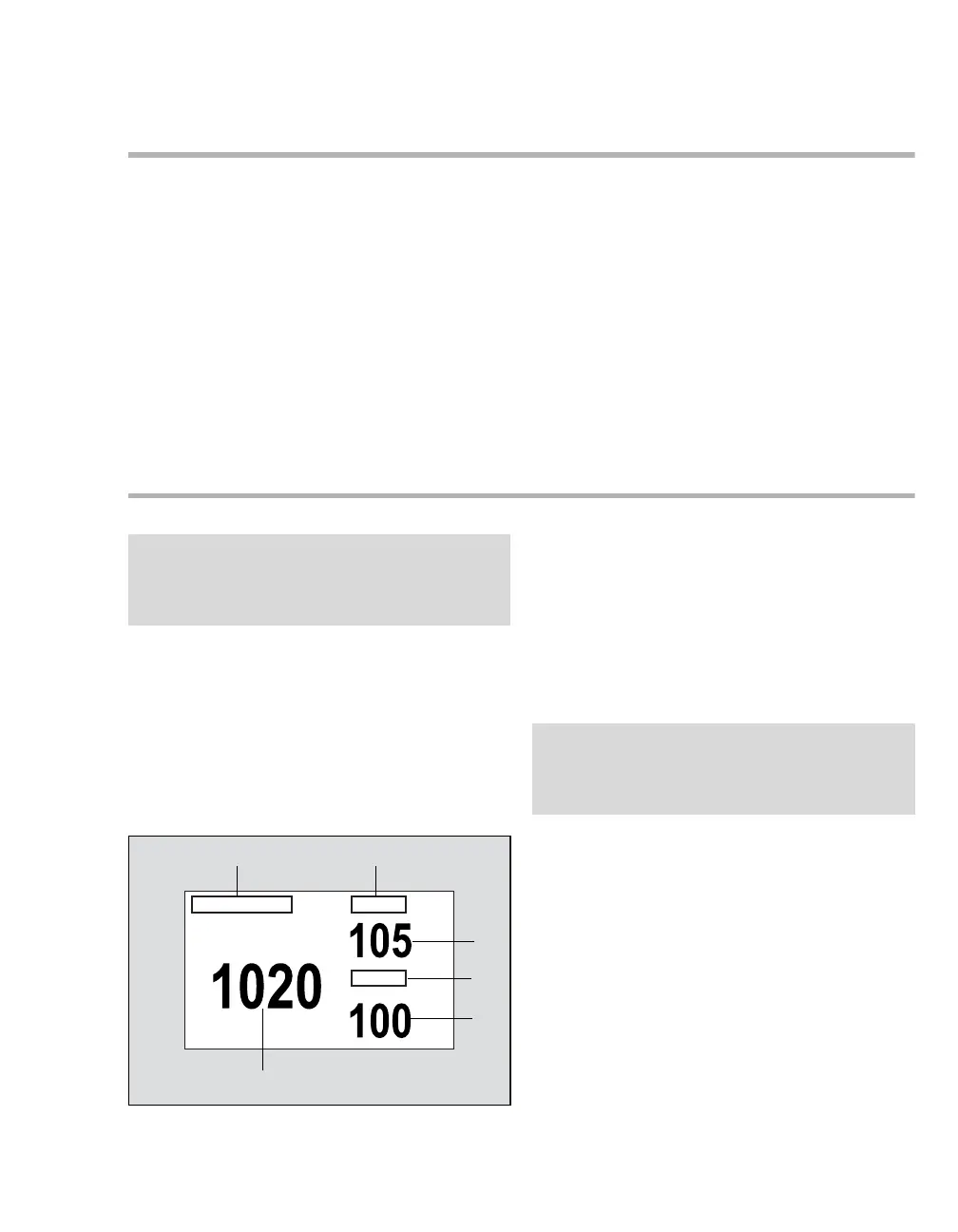

The following diagram shows a typical parameter
field for a MEDIBUS.X parameter.
A Primary parameter label
B Second parameter label
C Second parameter value
D Third parameter label
E Third parameter value
F Primary parameter value
NOTE
The following diagram shows a typical parameter
field layout. This layout may change when
additional parameters are put on display.
049
A
B
C
E
F
D
NOTE
The background of the Paw parameter field
appears cyan when a ventilator or an anesthesia
workstation becomes disconnected.
