Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n 93
Assembly and preparation
Docking/undocking the M540

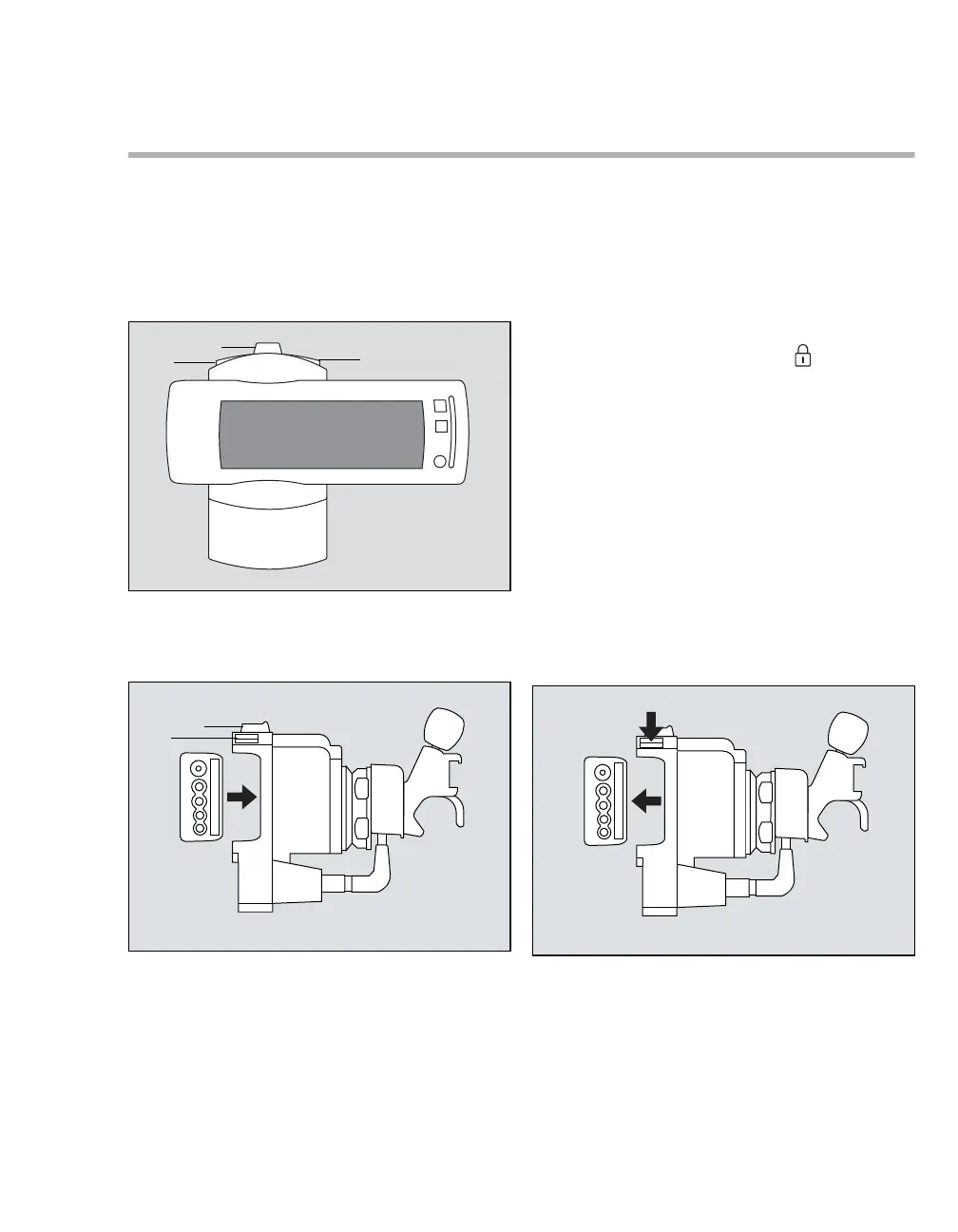

The following diagram shows the front and side of
the M500 which holds the M540 in place.
Front view of the M500 (M540 docked)
Side view of the M500 (M540 undocked)
A M500 locking tab
B Release buttons for removing the M540
C M540 patient monitor
D M500
E Swivel mount (optional) and mounting clamp
To dock the M540
1 Align the curved portion of the M540 with the
curved portion of the M500.
2 Press the M540 (C) into the M500 (D) until it
‘clicks’ into place.
3 Push the locking tab (A) of the M500 towards
the front, to the locked position to fasten the
M540 into place.
To lock the M540 into place permanently, see 'Lock-
ing/unlocking the M540“on page 94.
To undock the M540
1 Push the locking tab (A) of the M500 towards
the back. If the locking tab does not move, it has
been permanently locked. See page 94 for
information on how to unlock the locking tab.
2 Hold the M540 firmly and press one of the
release buttons (B - see arrow) of the M500.
3 Pull the M540 (C) out of the M500 (D).
300305
306
