Microstream CO2 monitoring
350 Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n
Overview of Microstream® CO2 monitoring
The Cockpit provides continuous sidestream
measurements of carbon dioxide (CO2)
concentrations for intubated and non-intubated
patients. The Cockpit acquires signals from the
Infinity MCable – Microstream CO
2
(subsequently referred to as Microstream MCable

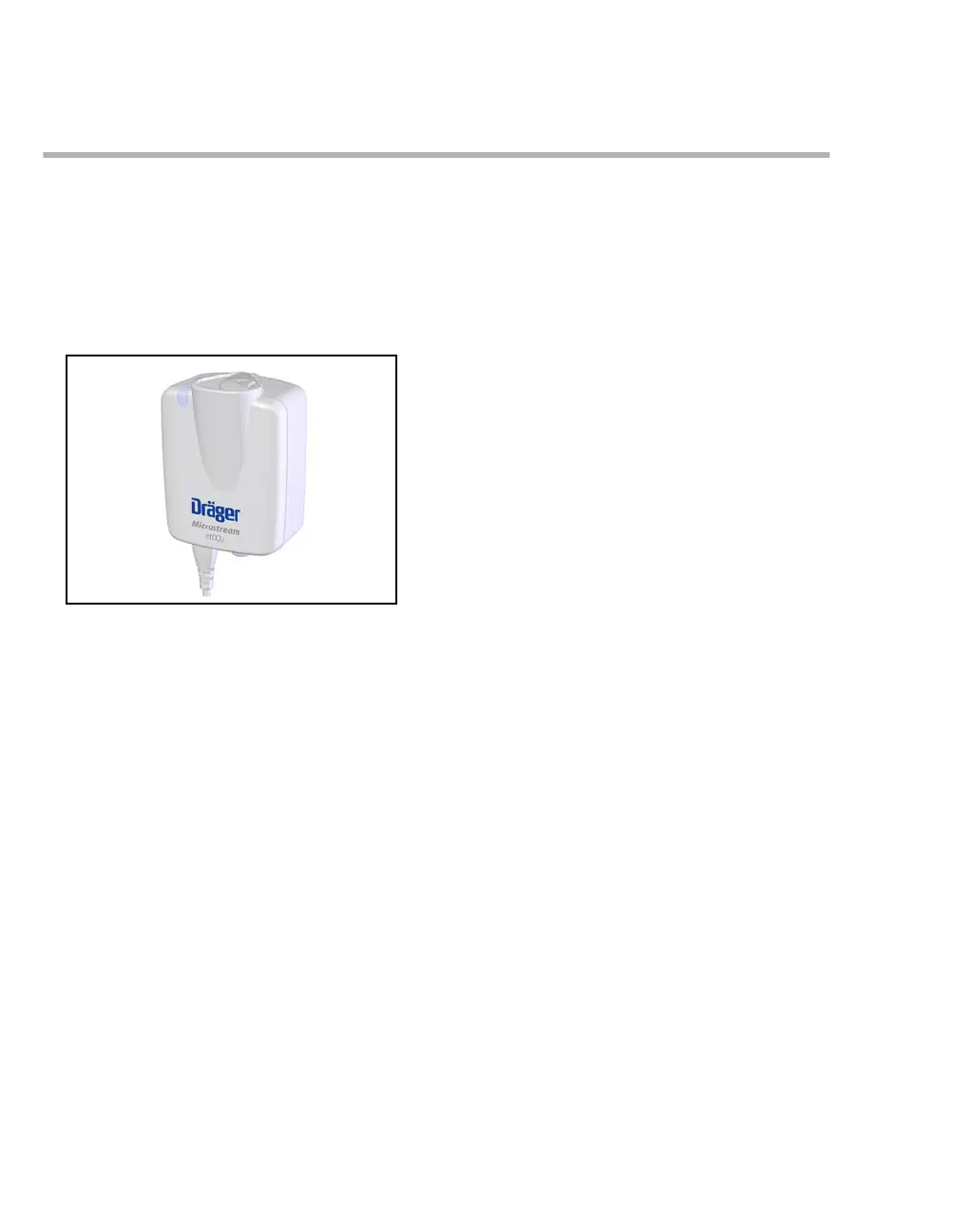

and shown in the following figure).
The Microstream MCable enables the clinician to
monitor CO
2 using the patient monitor. It uses non-
dispersive infrared technology to measure CO2 in
breathing gases. The Microstream MCable
analyzes the expiratory and inspiratory air as the
breathing gases flow through the sample line. It
automatically compensates for ambient pressure
within the defined operating ranges
The Microstream MCable is intended for use with
adult, pediatric, and neonatal patients with the
appropriate accessories.
Before performing any monitoring functions, refer
to the chapter “For your safety and that of your
patients” on page 13.
Supported parameters
– etCO2 (end-tidal CO2 concentration)
– inCO2 (inspiratory CO
2 concentration)
– RRc (respiratory rate)
Parameter-specific error messages are listed on
page 547.
Accessories
Refer to the Infinity Acute Care System Instructions
for use, Monitoring Accessories for available
accessories used for Microstream CO
2 monitoring.
Using the Microstream MCable
Refer to the Infinity M540 patient monitor
Instructions for use (Software VG5.n) for
information about the Microstream MCable and the
following topics:
– Safety precautions
– Connection and detachment
– Scavenger system use
– Use models and required accessories
– Sample line guidance
– Calibration check
