Reports/recordings
494 Instructions for use – Infinity Acute Care System – Monitoring Applications VG6.n
Overview
The Cockpit offers a real-time record of its
monitoring results on an R50N recorder. In
addition, you can request various reports and print
screens which are printed on a laser printer.
The content of the recordings and reports depend
on the configured settings. You can customize the
recording and report settings in the Recordings/
Reports pages (see page 467).
Messages relating to recordings and reports are
listed on page 543.

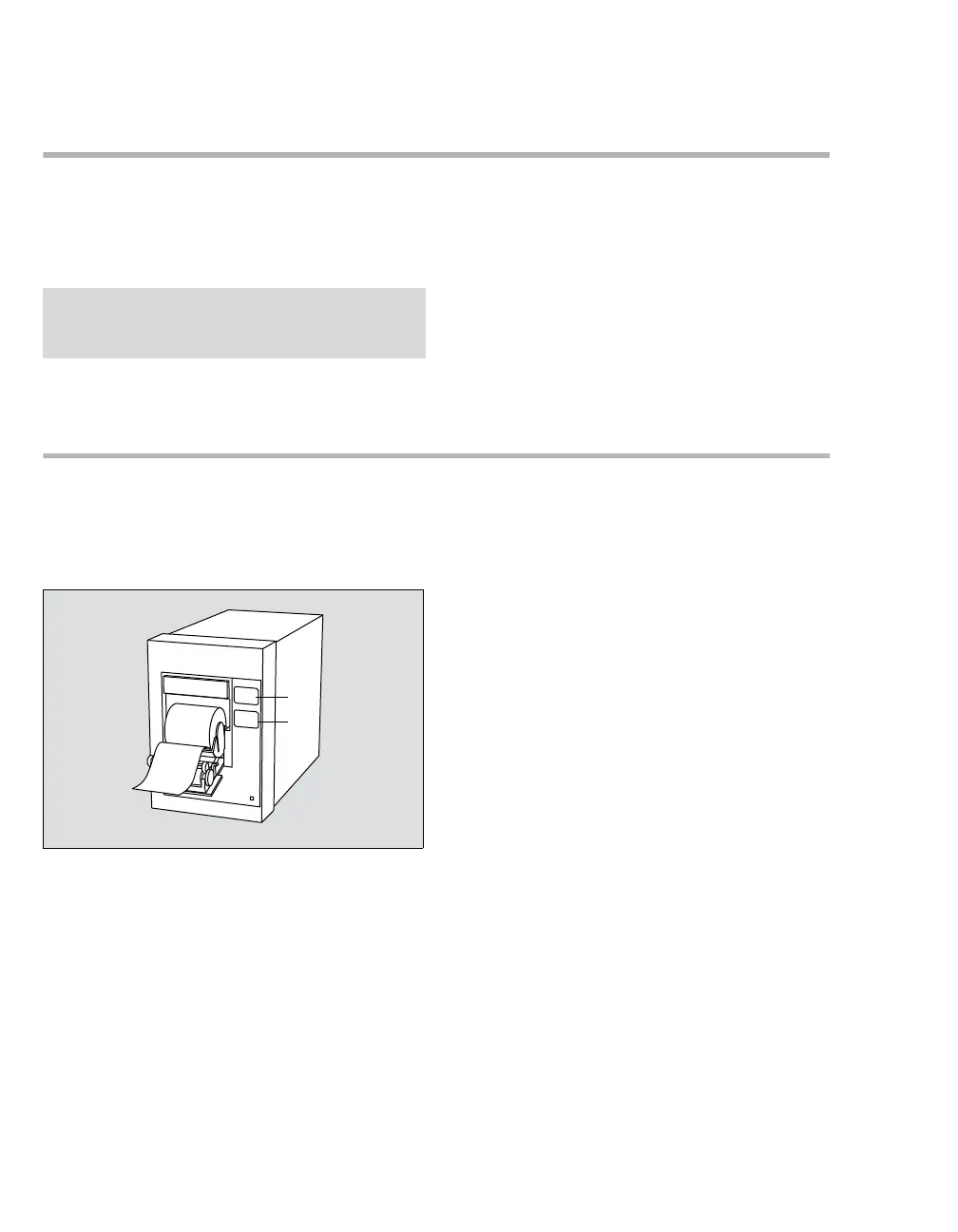

R50N recorder
Timed and continuous strip recordings are printed
on an R50N recorder which is connected to the
network or to the PS250 / P2500 using a cross-over
cable. The R50N is a two-channel strip recorder.
A Stop key – stops a recording in progress
B mm/s key – does not function
Replacing the recorder paper
To replace the paper
1 Open the paper door and remove the empty
paper roll and any paper remaining in the
printing mechanism.
2 Place a new paper roll with printed side facing
up into the spool holder. Unroll a few inches of
paper from the bottom.
3 Align the paper roll with the paper guides, and
close the door. (If not aligned properly, the
paper may jam.)
4 Generate a timed recording to verify that the
recorder is connected properly, and the paper is
loaded correctly.
NOTE
Ventilation waveforms are not supported on re-
cordings.
