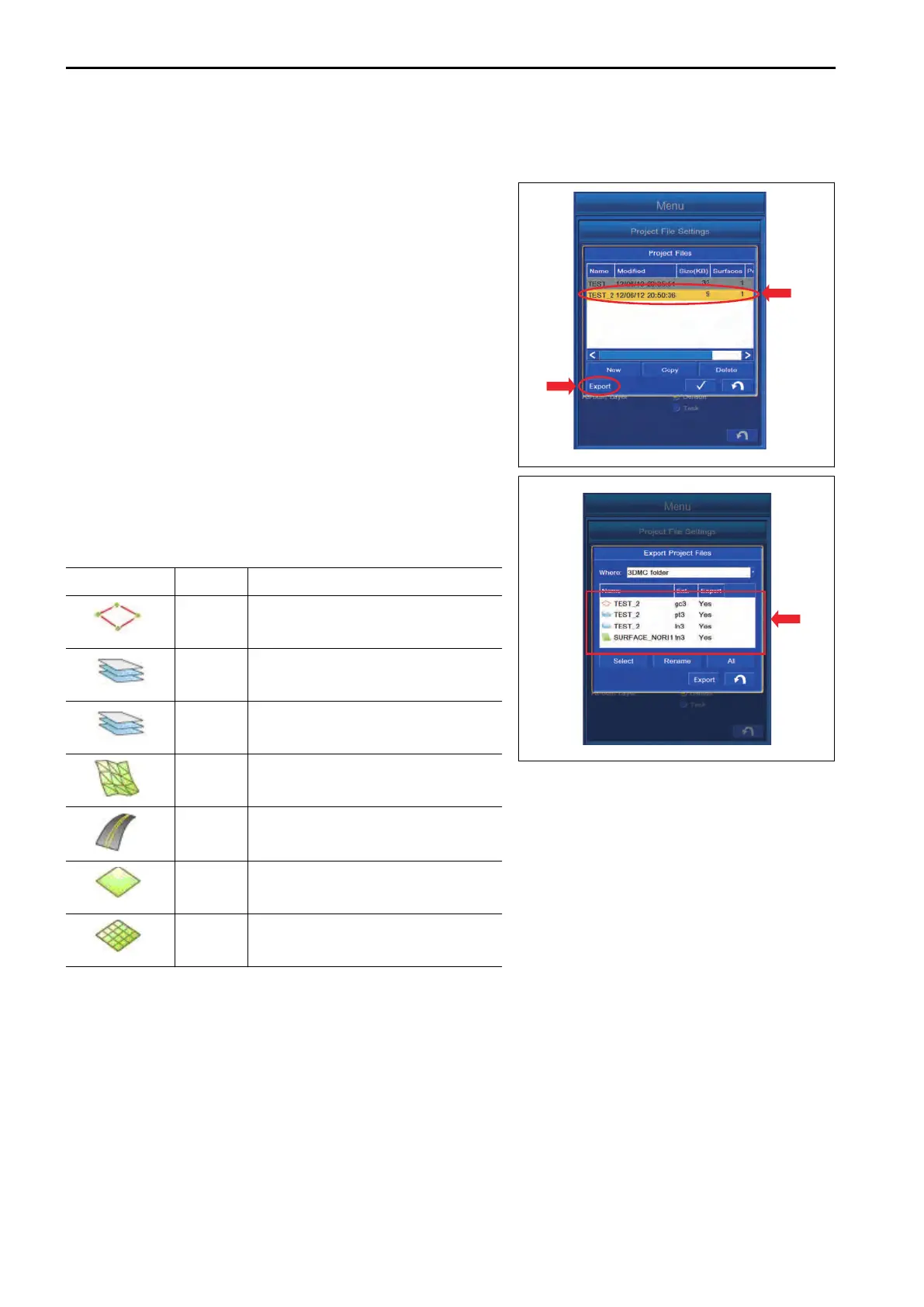

METHOD FOR EXPORTING PROJECT FILE
The Project Files consist of Control files, Point files, Surface files, Layer files, etc.
1.
On “Project Files” setting screen, select the Project File
which
contains the file to be exported, and tap the Export
button.
2.
The list of the File saved in the Project Files is displayed.
The
name, extension “Ext.”, export or not export (“Yes”/
“No”) are displayed in the list.
The details of the Files displayed in the list are as follows.
symbol Ext Contents
gc3 Control Point
pt3 Point
ln3 Linework
tn3 Surface
rd3 Alignment
pl3 Simple plane created by this machine
gd3 As-Built
CONTROL BOX SETTING
7-12
To Next Page
