ROUGH DIGGING MODE
Rough
digging mode is used when the fine digging mode is not used. Bucket edge position against the design
data is displayed, and the light bar or sound supports the digging operation.

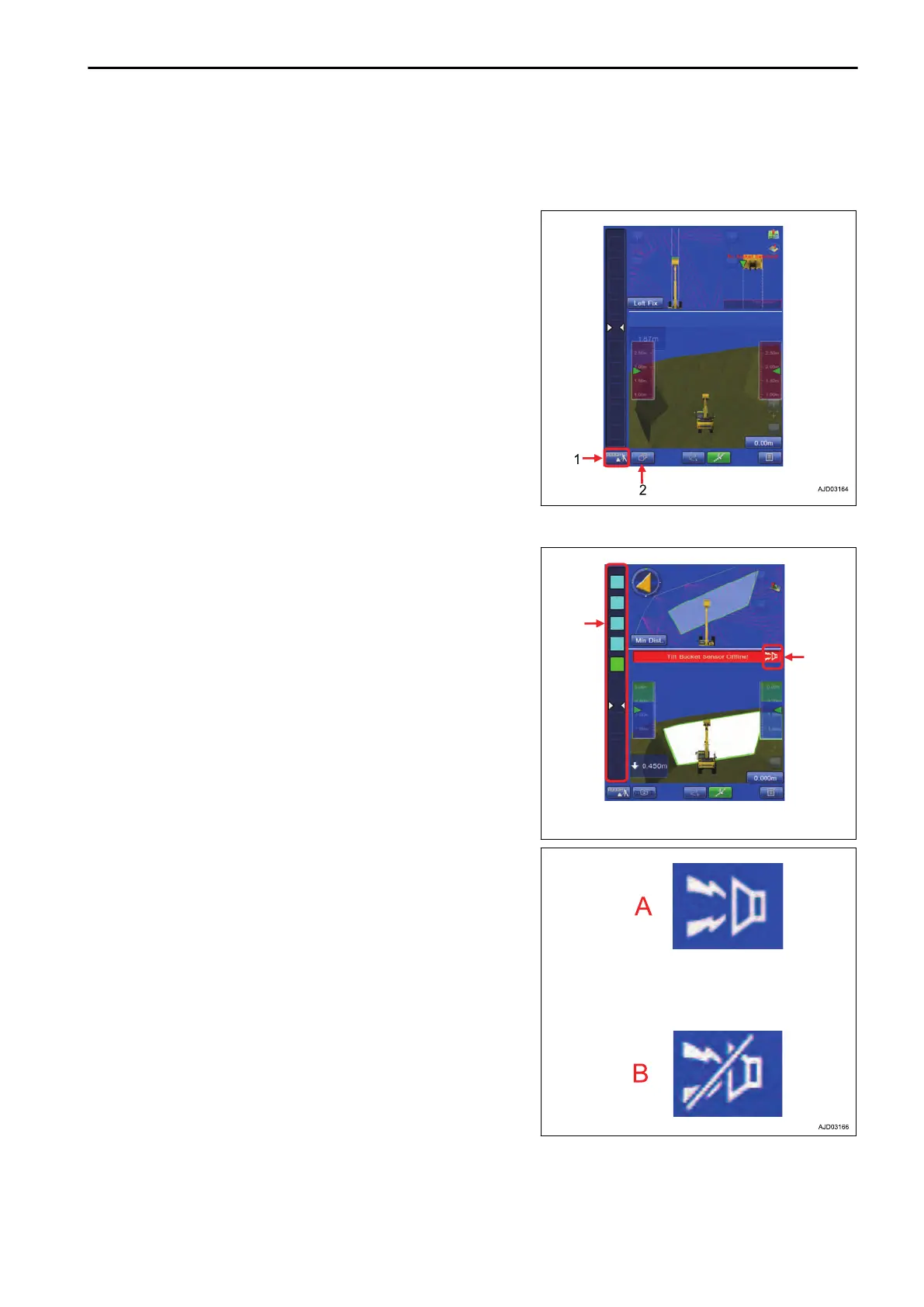

Tap the button (1) at bottom left of the working screen, and but-
ton pops up. Tap the button (1) and select Rough Digging
mode.
Rough Digging screen display can be changed by tapping the
button (2).
METHOD FOR SETTING ROUGH DIGGING SCREEN
(1) Light bar
Informs the bucket edge position against the design data with
color.
The range lit in green on the light bar is the tolerance of the
rough digging.
(2) Sound
Informs the bucket edge position against the design data with
sound.
For the light bar and sound, see “LIGHT BAR AND SOUND
SETTINGS (7-55)”.
(A) Sound is enabled
(B) Sound is disabled
Tap the button and ON/OFF of Sound can be switched.
EXECUTIONS ROUGH DIGGING MODE
8-15
