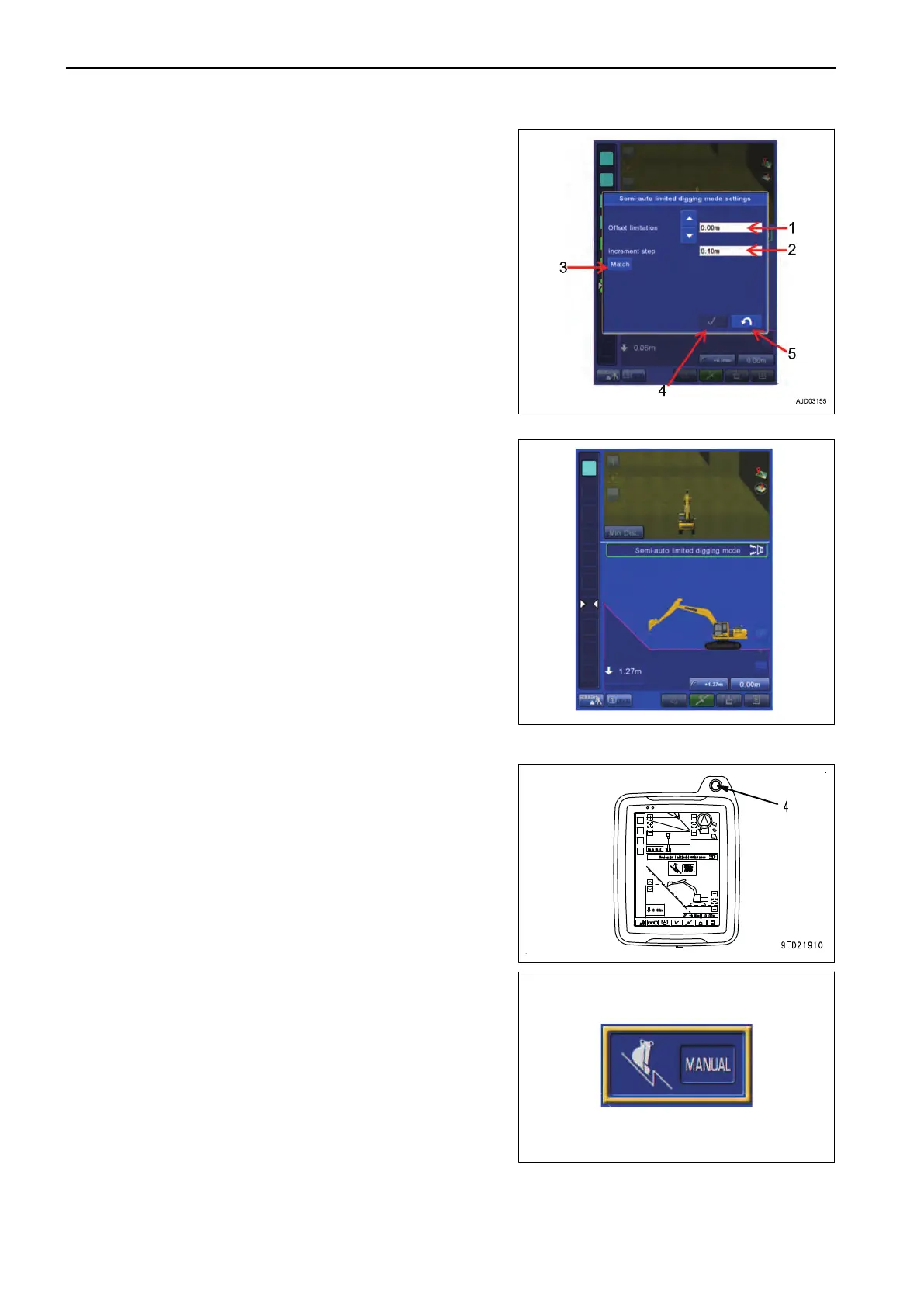

(1) “Offset limitation”
The of
fset value is adjusted with △ and ▽ buttons.
Tap the numeric value column and numeric keypad pops up.
You can input the offset value directly with this.
(2) “Increment step”
The range of offset is set.
(3) “Match”
Calculates the offset amount automatically so that the offset
surface comes to the current bucket edge position.
(4) ENTER button
Tap this button and content of change is saved.
(5) RETURN button
Tap this button and the display returns to the previous screen.
REMARK
When Control Surface is offset, the screen shown in the figure
is displayed.
METHOD FOR SWITCHING TO MANUAL MODE
Press the auto/manual switch (4) on the top of the control box.
Symbol indicating the manual mode is displayed on the screen
of control box, and audio signal sounds when the manual mode
is selected.
The symbol indicating the manual mode is displayed for a cer-
tain time, and then it is automatically cleared.
SEMI-AUTO MODE EXECUTIONS
8-10
