AVOIDANCE DATA SETTINGS
The
operation prohibited area can be set by placing the point
saved in layer or line work as a starting point.

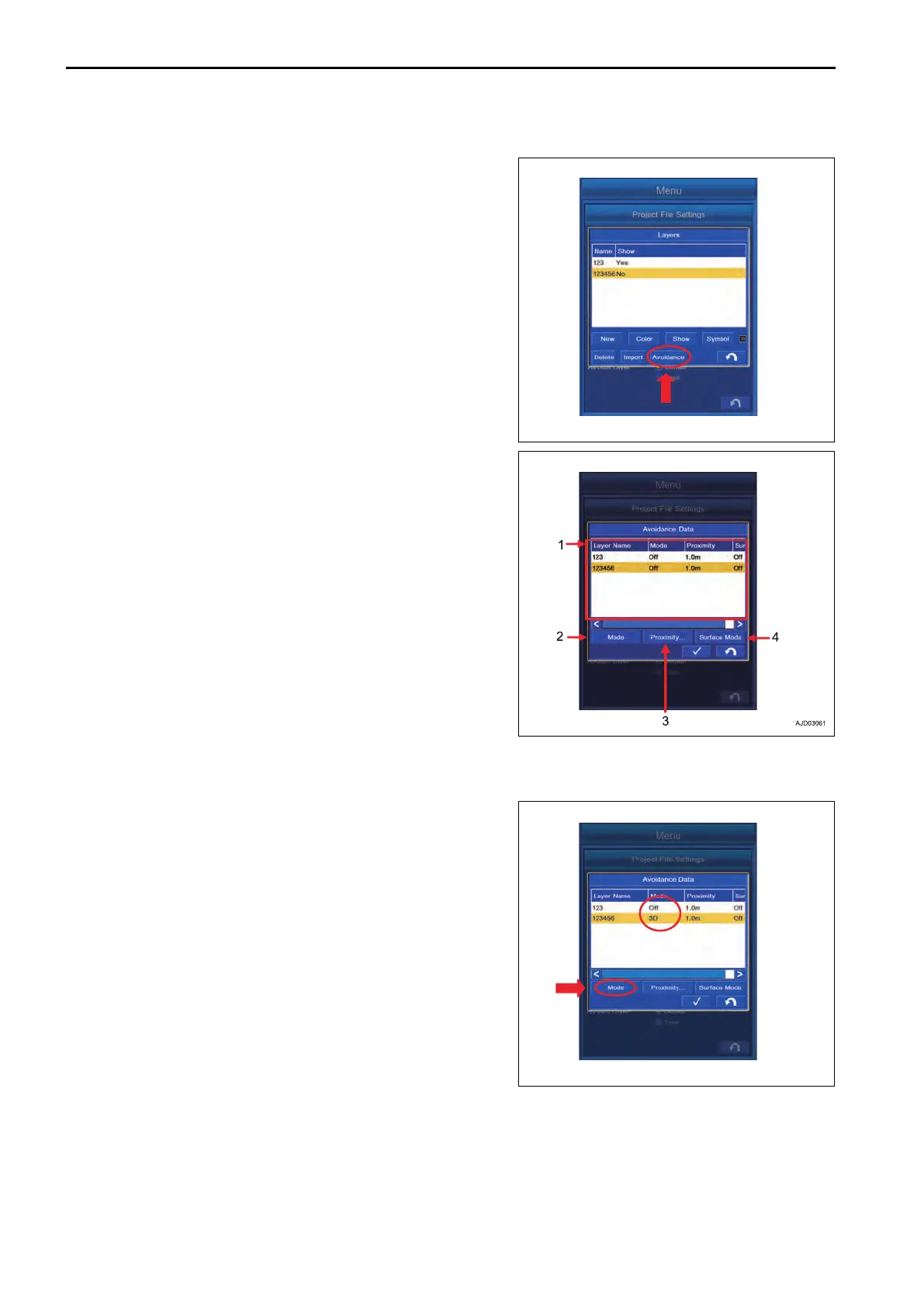

Tap “Avoidance” button on the setting screen of layer, the
screen changes to “Avoidance Data” screen.
Contents displayed in “Avoidance Data” setting
(1) Following items are displayed in a list.
“Layer Name”: The name of layer is displayed.
“Mode”: The shape of Avoidance data is displayed.
“Proximity”: The area of Avoidance data is displayed.
“Surface Mode”: Detection condition for the surface of Avoid-
ance data is set.
Contents of operation by “Avoidance Data” setting
(2) “Mode” button: The shape of Avoidance data can be select-
ed.
(3) “Proximity...” button: The area of Avoidance data can be se-
lected.
(4) “Surface Mode” button: Surface mode can be selected.
METHOD FOR SETTING AVOIDANCE DATA SHAPE
The shape of Avoidance Data can be selected.
1.
Tap “Mode”
button on the setting screen of Avoidance Da-
ta.
The column of “Mode” changes.
2.
Display “Mode” which you want to select.
You can select the following “Mode”.
“3D”: You can set a spherical Avoidance Data.
“2D”: You can set a circular Avoidance Data.
“Off”: You can disable the setting of Avoidance Data.
METHOD FOR SETTING AVOIDANCE DATA PROXIMITY
The area of Avoidance Data can be selected.
CONTROL BOX SETTING
7-50
