For details, see the Operation and Maintenance Manual of standard machine.

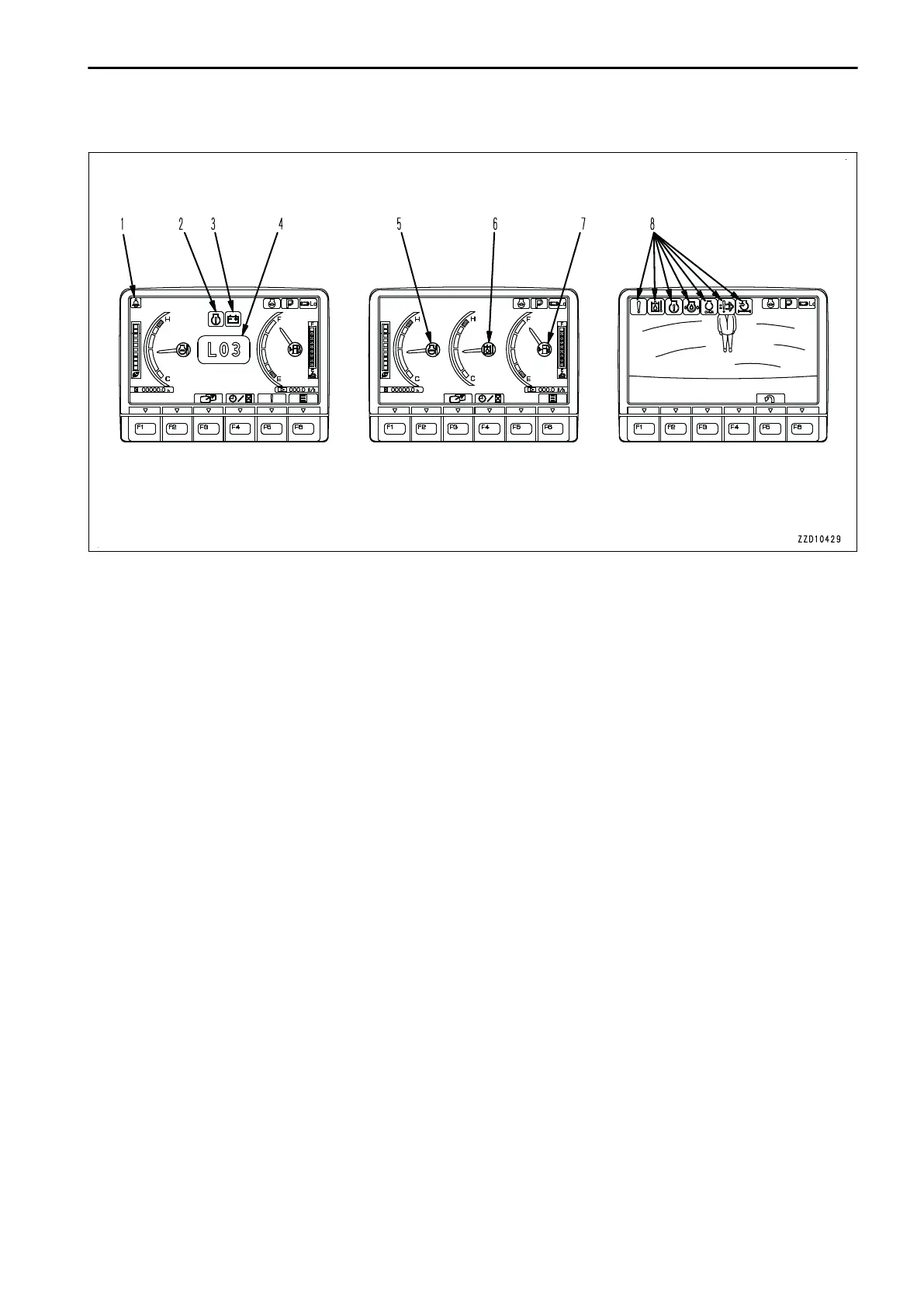

(1) Seat belt caution lamp
(2) Caution lamp
(3) Caution lamp
(4) Action level display
(5) Engine coolant temperature caution lamp
(6) Hydraulic oil temperature caution lamp
(7) Fuel level caution lamp
(8) Caution lamp
Standard screen (only meters are displayed)
When 1 type of caution is generated, it is displayed on the caution lamp (2).
When 2 types of cautions are generated, they are displayed on the caution lamps (2) and (3).
When
3 types or more of caution are generated, they are displayed on the caution lamps (2) and (3) alternately
at intervals of 2 seconds.
Whole camera image display screen
The current cautions are indicated by flashing of caution lamp (8).
When 2 or more cautions are generated, they are sequentially displayed starting from the leftmost side of the
screen.
OPERATION EXPLANATION OF COMPONENTS
3-9
