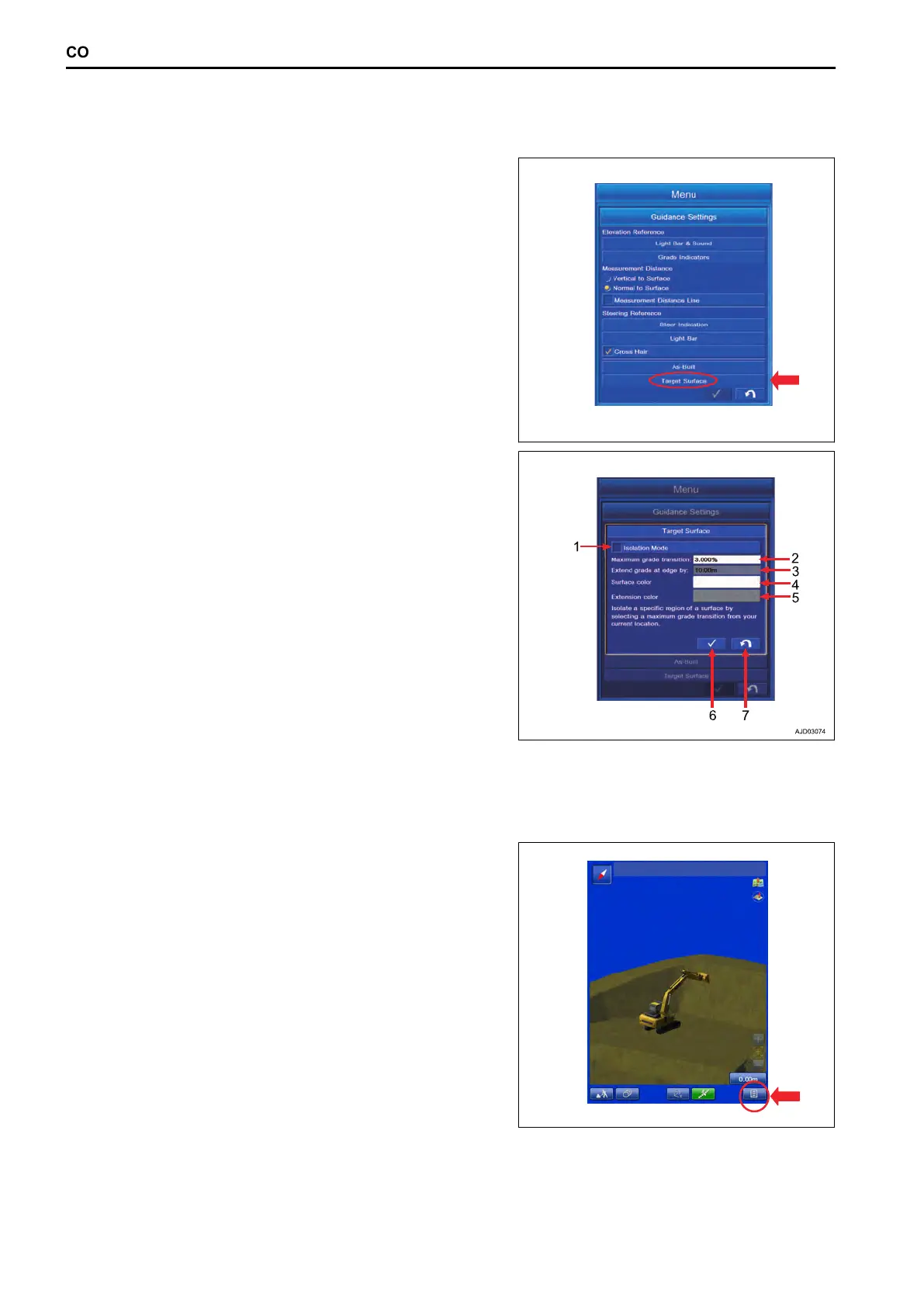

METHOD FOR SETTING TARGET SURFACE
Y
ou can perform the setting of “Target Surface”.
(1) “Isolation Mode”
You can extend the selected triangular mesh.
(2) “Maximum grade transition:”
You can change the size of selected triangular mesh.
Input the numeral value in “Maximum grade transition:” column
to change.
(3) “Extend grade at edge by:”
You can extend the triangular mesh selected in “Isolation
Mode”.
(4) “Surface color”
You can set the display color of the Surface.
(5) “Extension color”
You can set the display color of the extended Surface.
(6) ENTER button
Tap ENTER button and the setting is saved.
(7) RETURN button
Tap RETURN button and the screen returns to the previous
screen.
DISPLAY OPTIONS
“Display Options” is for setting the working screen layout, displays, point, alignment data, machine image, work-
ing range, bucket alignment lines, configurations for display of other machines, background color, brightness,
language, and unit.
1.
Tap the main menu display button at the right bottom of the
working screen, then the screen changes to the
“Menu”.
CONTROL BOX SETTING
7-70
