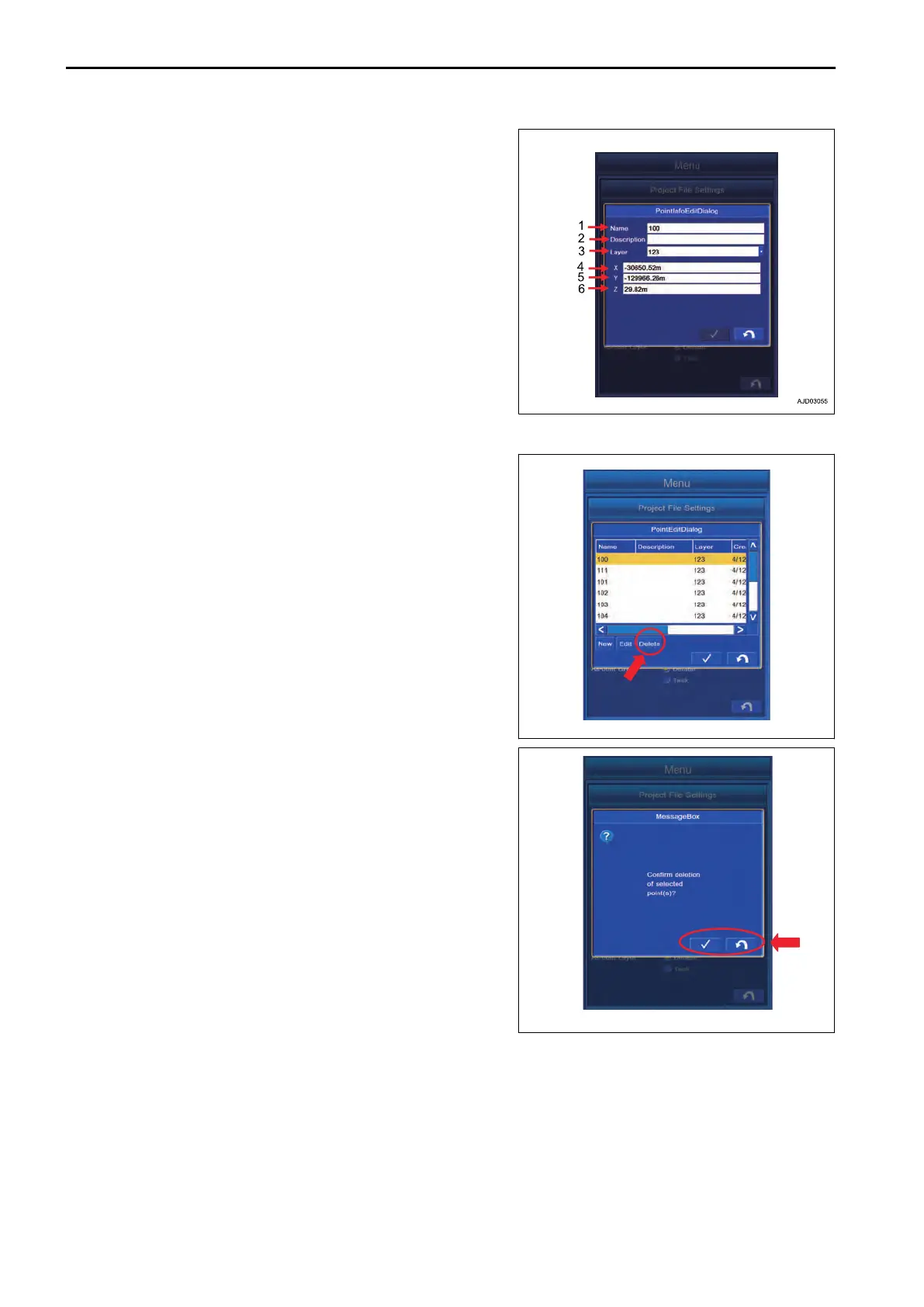

The displayed contents of “Points” screen
(1) “Name”: The name of Point is displayed.
(2) “Description”
: The Remarks are displayed.
(3) “Layer”: The name of Layer in which Point is saved is dis-
played.
(4) “North”: The value of N is displayed.
(5) “East”: The value of E is displayed.
(6) “Elevation”: The value of Elevation is displayed.
METHOD FOR DELETING EXISTING POINT
1.
Tap “Delete”
button on the setting and editing screen of
“Points”.
The screen changes to “MessageBox” screen.
2.
To delete the Point, tap ENTER button. The Point is delet-
ed.
T
ap RETURN button to return the screen to the previous
screen.
SURFACES SETTINGS
The Surface denotes the target construction surface in the intelligent Machine Control. The Surface includes the
Triangle mesh (TIN) and Alignment, etc.
METHOD FOR IMPORTING SURFACES FROM PROJECT FILE
You can perform the setting of the Surface.
CONTROL BOX SETTING
7-26
