(b) Manual mode
Pressing
this switch during the semi-auto mode changes the
mode to the manual mode.
The symbol indicating the manual mode is displayed on the
control box, and voice signal sounds.
Shifting from the semi-auto mode to the manual mode can be
performed regardless of the machine condition.

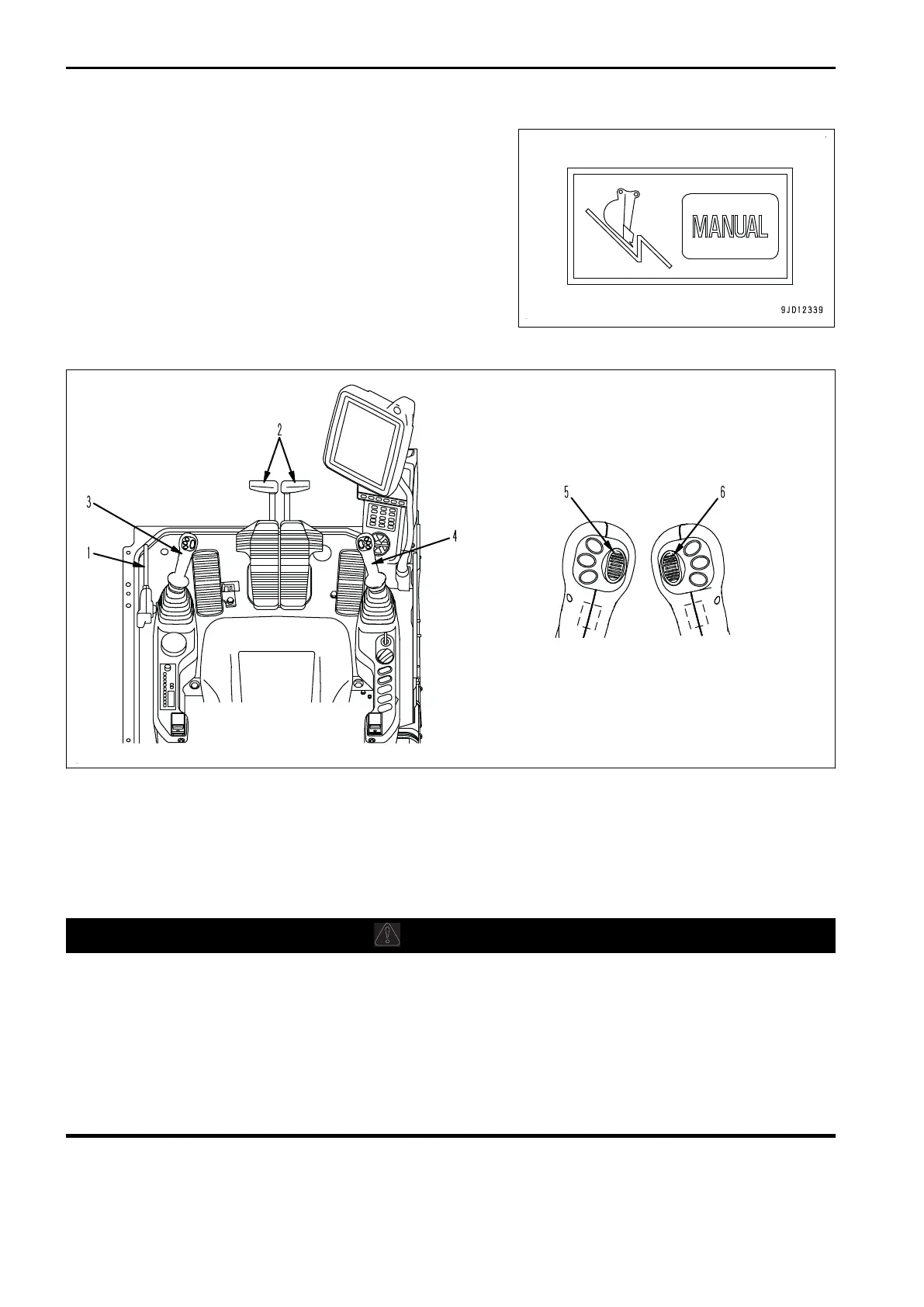

CONTROL LEVERS AND PEDALS
(1) Lock lever
(2)
Travel levers (with pedal and auto-deceleration
system)
(3) L.H. work equipment control lever (with auto-decel-
eration system)
(4) R.H. work equipment control lever (with auto-de-
celeration system)
(5) Not used
(6) 1st Attachment Proportional Control Switch
LOCK LEVER
WARNING
• When
opening/closing the window, adjusting the position of operator's seat, and leaving the opera-
tor's seat, set the lock lever securely to LOCK position. If the lock lever is not at LOCK position and
the control levers or control pedals are touched by mistake, it may lead to serious personal injury
or death.
• Always check that the lock lever is in LOCK position.
• When pulling up or pushing down the lock lever, be careful not to touch the work equipment control
lever.
• Before raising the lock lever, make sure that all levers and pedals are set to NEUTRAL position.
EXPLANATION OF COMPONENTS OPERATION
3-18
