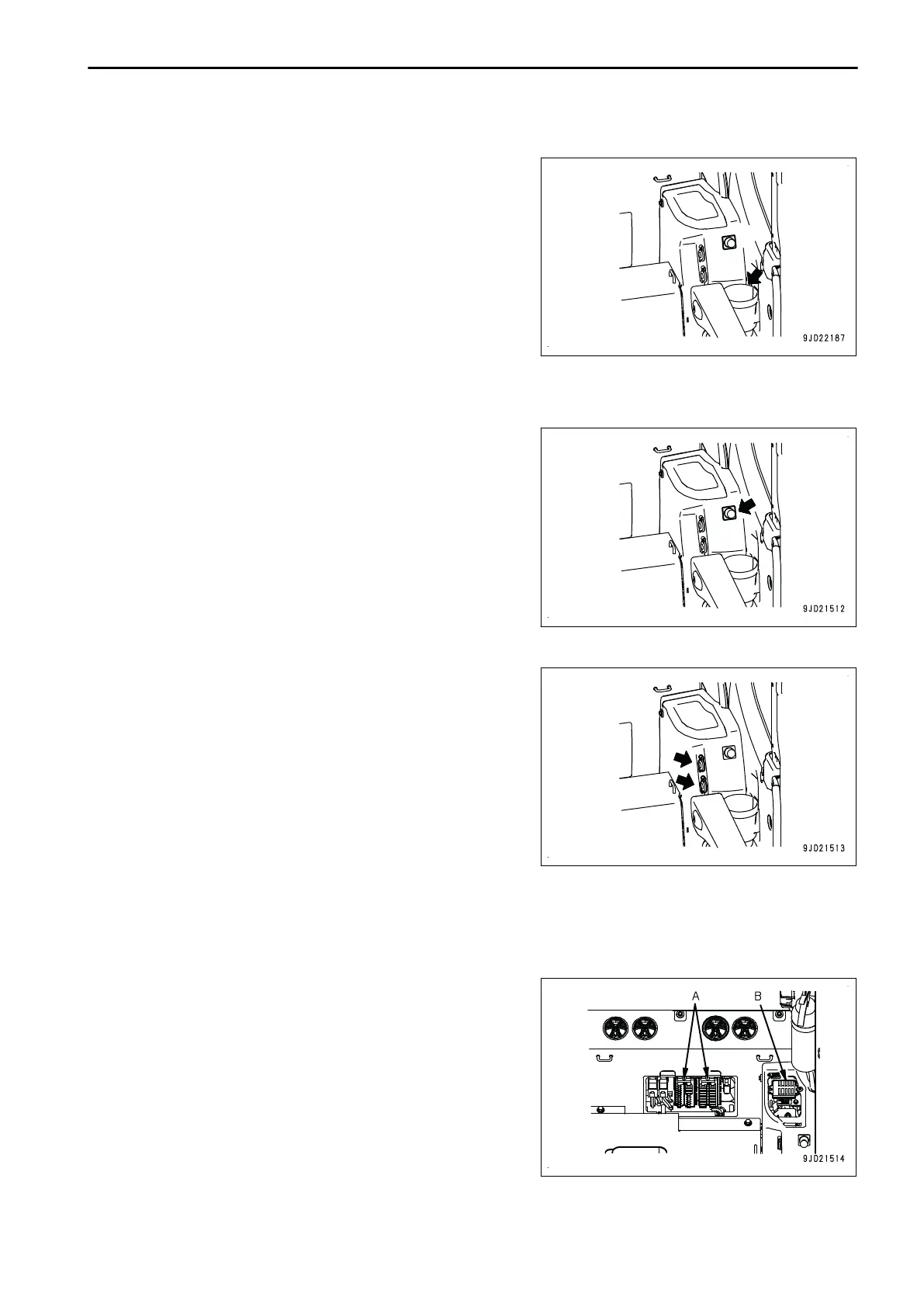

CUP HOLDER
The cup holder is located on the left side of the operator's seat.
POWER SUPPL
Y OUTLET
24V power supply
NOTICE
Do not use this as a power supply for 12 V equipment.
This will cause a failure of the equipment.
When cigarette lighter is removed, the lighter socket can be
used as a power source.
The capacity of the cigarette lighter is 85 W (24 V x 3.5 A).
REMARK
Use 24 V power source while engine is running.
12V power supply
Capacity of this power supply is 144 W (12 V x 12 A).
• When it is used at one place: 144 W (12 V x 12 A)
• When it is used at 2 places: 144 W in total
REMARK
Use this power source while engine is running.
FUSE
NOTICE
T
urn the starting switch to OFF position, then turn the battery disconnect switch to OFF position always
before replacing the fuse.
• The fuse holder for the fuse 1 (A) is installed at the rear of
the operator's seat. The fuse holder for the fuse 2 (B) is in-
stalled at the rear left of the operator's seat.
• The fuses protect the electrical component and wiring from
burning out.
• If the fuse is corroded, or loose in the fuse holder, or looks
white powdery, replace it.
• Replace the fuse with the one of the same capacity.
OPERATION EXPLANATION OF COMPONENTS
3-33
