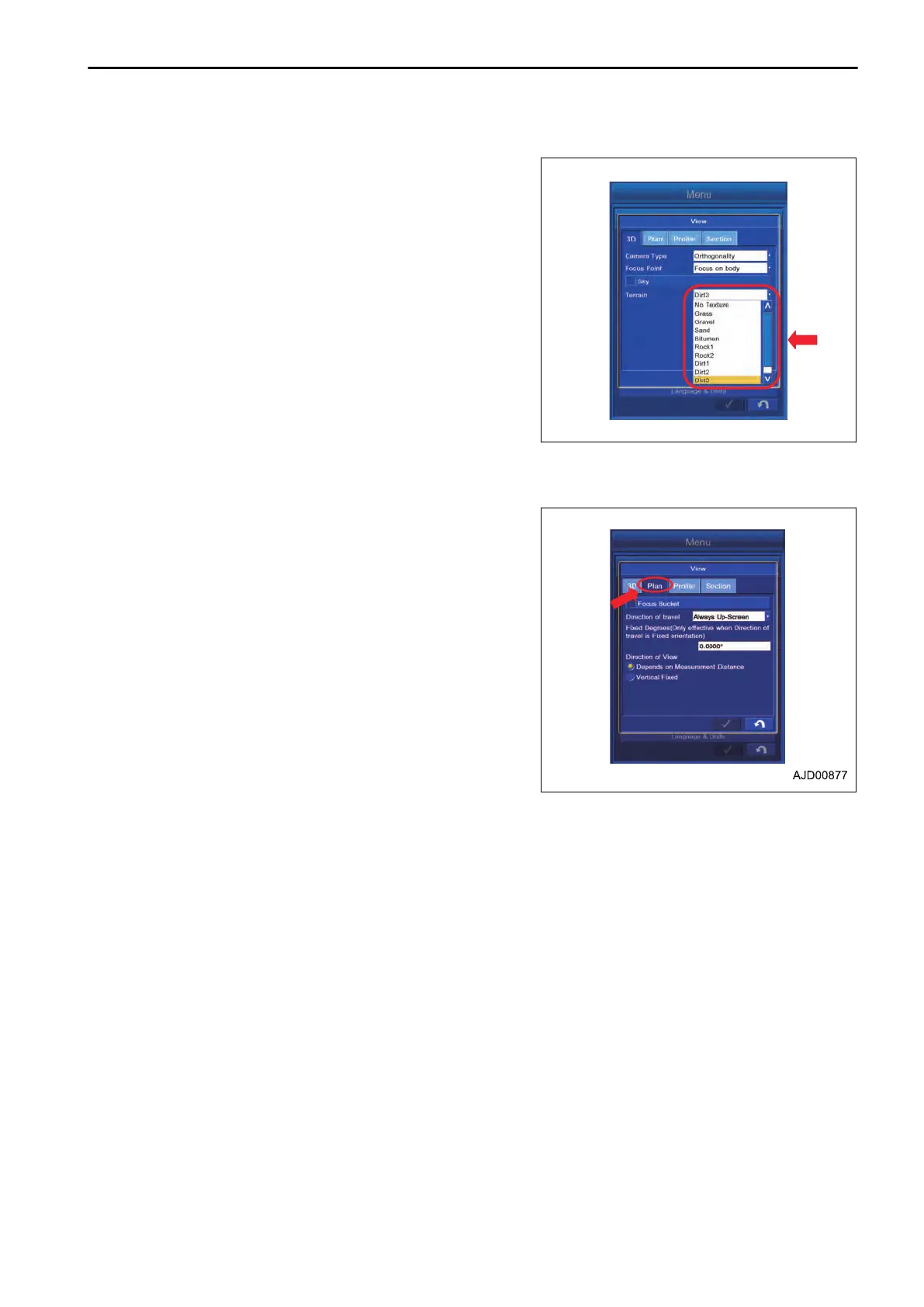

METHOD FOR SETTING TERRAIN
Select “3D”
tab, and tap the column of “T
errain”.
Y
ou can set T
errain.
PLAN VIEW SETTINGS
The setting for the plan view can be set.
T
ap the “Plan” tab on the setting screen of the “View” to select.
